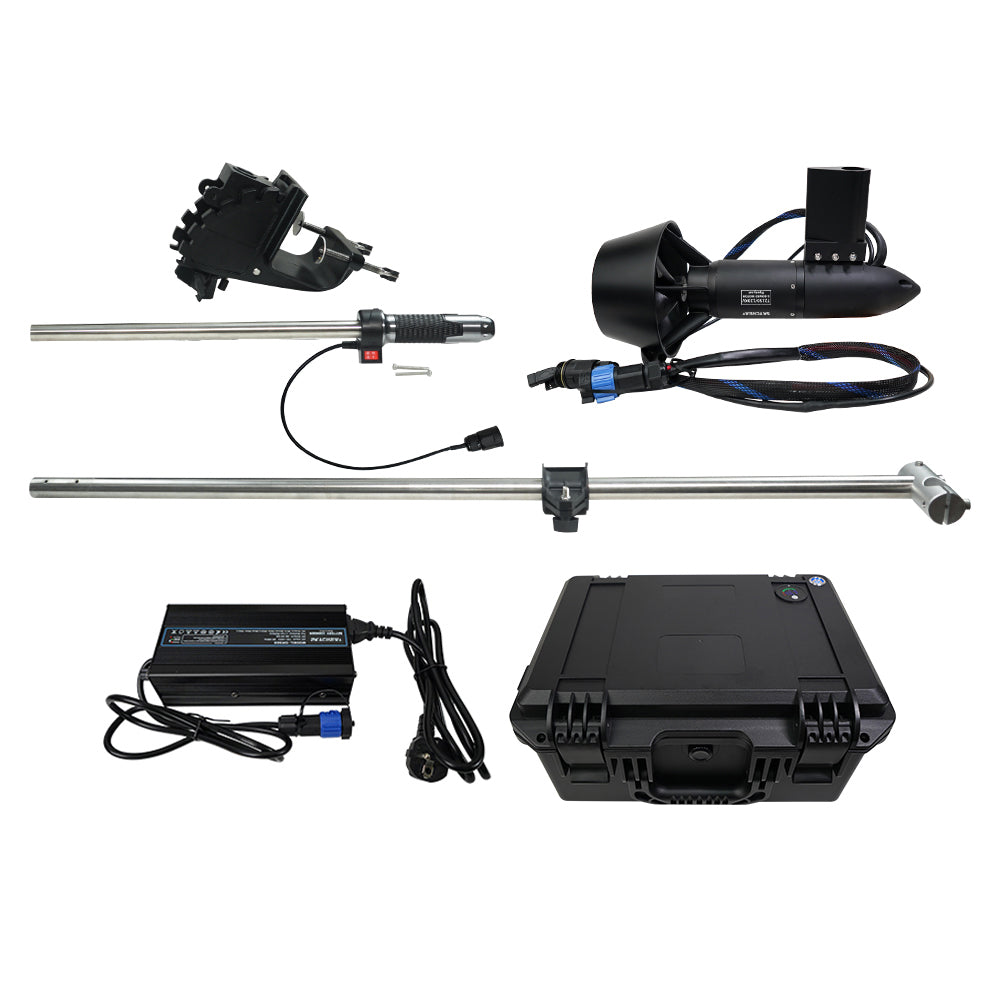

Skycreat Electric Outboard Motor 72150 3000W / ESC 2-in-1 Combo electric propeller outboard motor inflatable boat electric outboard

Skycreat Electric Outboard Motor 72150 3000W / ESC 2-in-1 Combo electric propeller outboard motor inflatable boat electric outboard

$405.00 USD
$405.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

SKU:FT-OE-72150E302

STYLE

72150 Motor Spec:

  • Voltage range: 6-12S (25.2-50.4V)
  • Max power: 3000W; Continuous power: 1700W
  • Peak current: 60A; Continuous current: 40A
  • Motor KV: 120KV
  • Motor slots & poles: 12N/14P
  • Waterproof rate: IP68
  • Lead wires extension: 10AWGx1200mm
  • Connector: XT90 Female
  • Max thrust: 32

Battery box parameters

  • Battery outer box size: 371*269*186mm
  • Waterproof grade: IP67
  • Battery box material: ABS
  • Voltage:50.4V
  • Cell specifications: Molicel P42A 27100
  • Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
  • Environment: (-20 degrees Celsius + 50 degrees Celsius)
  • Charger: 50.4V 5.5A
  • Charging time: about 3 hours
  • Operating time: 90-120 minutes (recommended cruising power: 500W)

Outboard Motor Mount

  • Remote Control: Throttle Handle
  • Control Mode: ADC
  • Remote Range: Wired Control
  • Waterproof Rating: IP58
  • Gear Positions: Forward, Reverse
  • Function: Control motor rotation direction

ESC integrated Spec

  • ESC type: Flipsky Mini FSESC6.7 PRO
  • Control Interface Ports: USB,CAN,UART
  • ESC Drive Mode: ADC, reserved PPM
72150 Motor Specifications
Voltage Range 6–12S (25.2V–50.4V)
Max Power 3000W
Continuous Power 1700W
Peak Current 60A
Continuous Current 40A
Motor KV 120KV
Motor Slots & Poles 12N / 14P
Waterproof Rating IP68
Lead Wires Extension 10AWG × 1200mm
Connector XT90 Female
Max Thrust 32 kg
Battery Box Parameters
Battery Box Dimensions 371×269×186mm
Waterproof Rating IP67
Battery Box Material ABS
Voltage 50.4V
Cell Spec Molicel P42A 21700
Capacity 12S 4P — 16.8Ah / 846.72Wh / 16800mAh
Operating Temperature -20°C to +50°C
Charger 50.4V 5.5A
Charge Time ~3 hours
Runtime 90–120 min (recommended cruise power: 500W)
Outboard Motor Mount (Throttle Handle)
Control Mode ADC
Remote Range Wired Control
Waterproof Rating IP58
Gear Positions Forward, Reverse
Function Control motor rotation direction
ESC Integrated Specifications
ESC Type Flipsky Mini FSESC6.7 PRO
Control Interface Ports USB, CAN, UART, SPI, IIC
ESC Drive Mode ADC, reserved PPM
