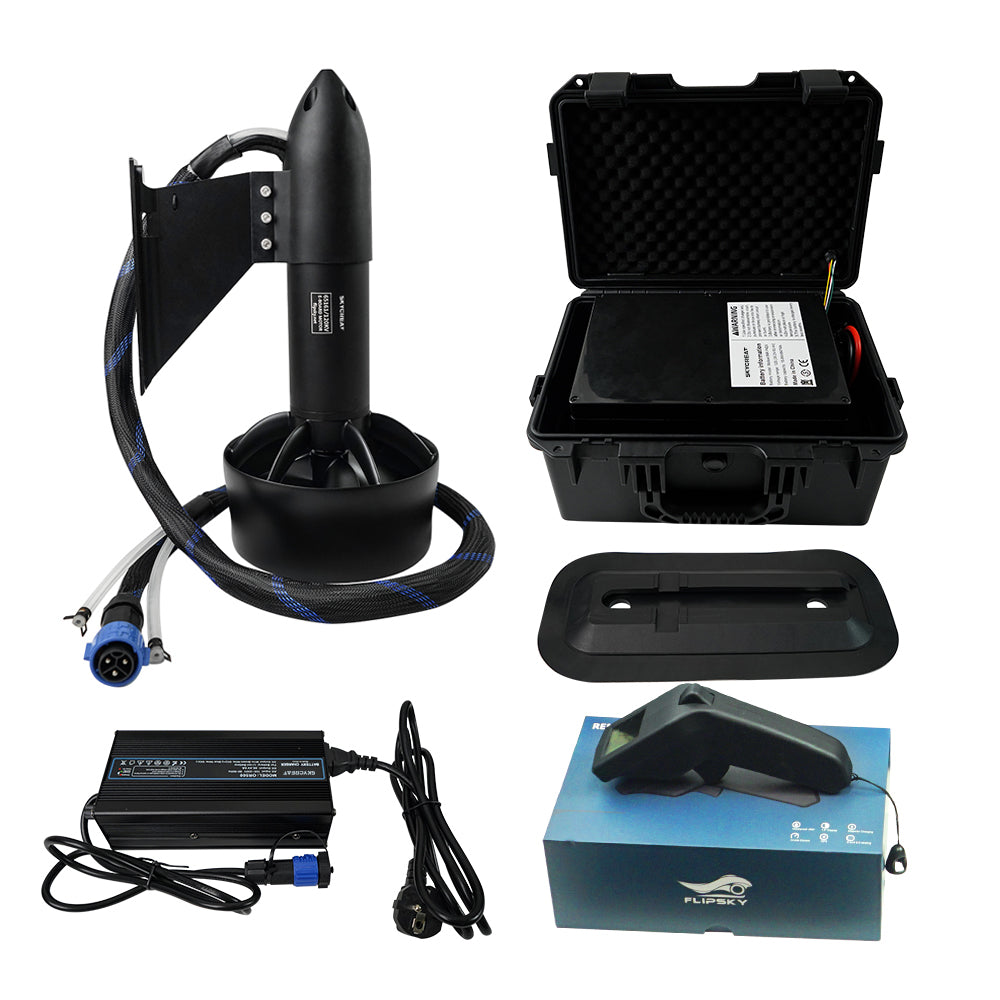

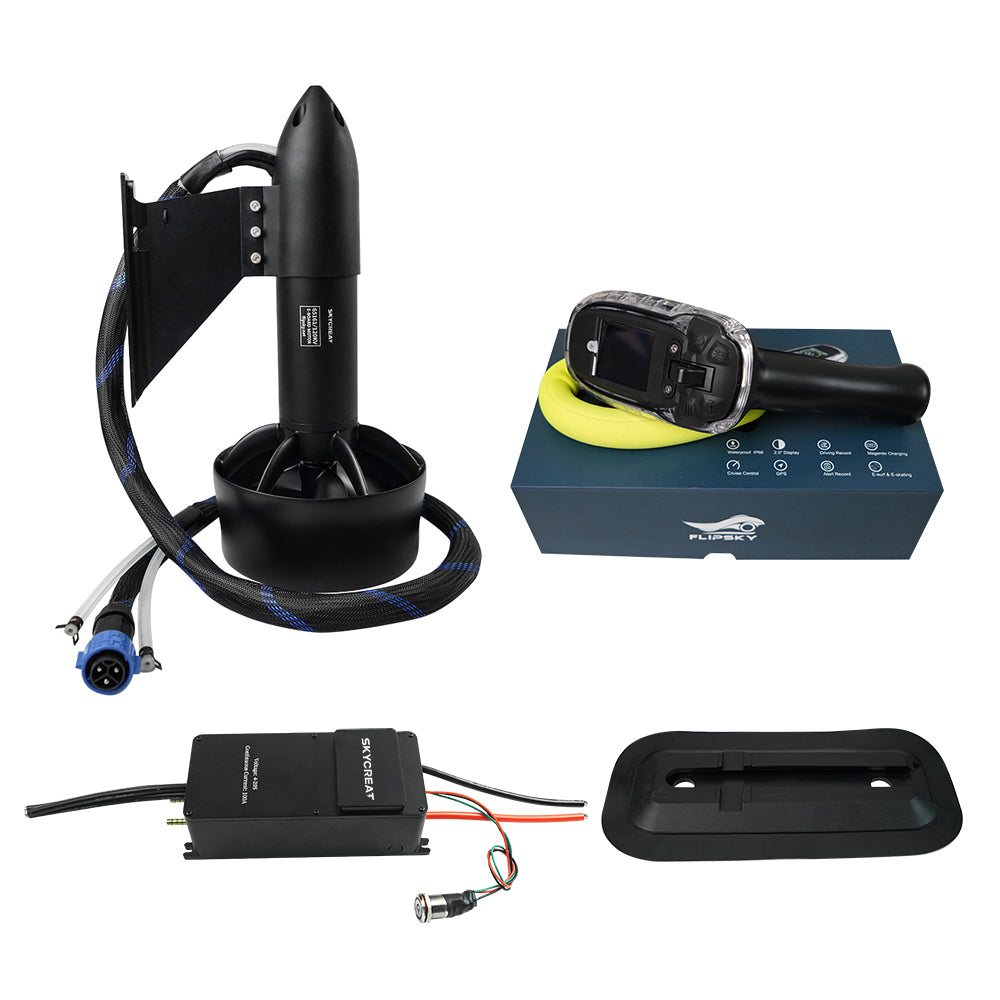

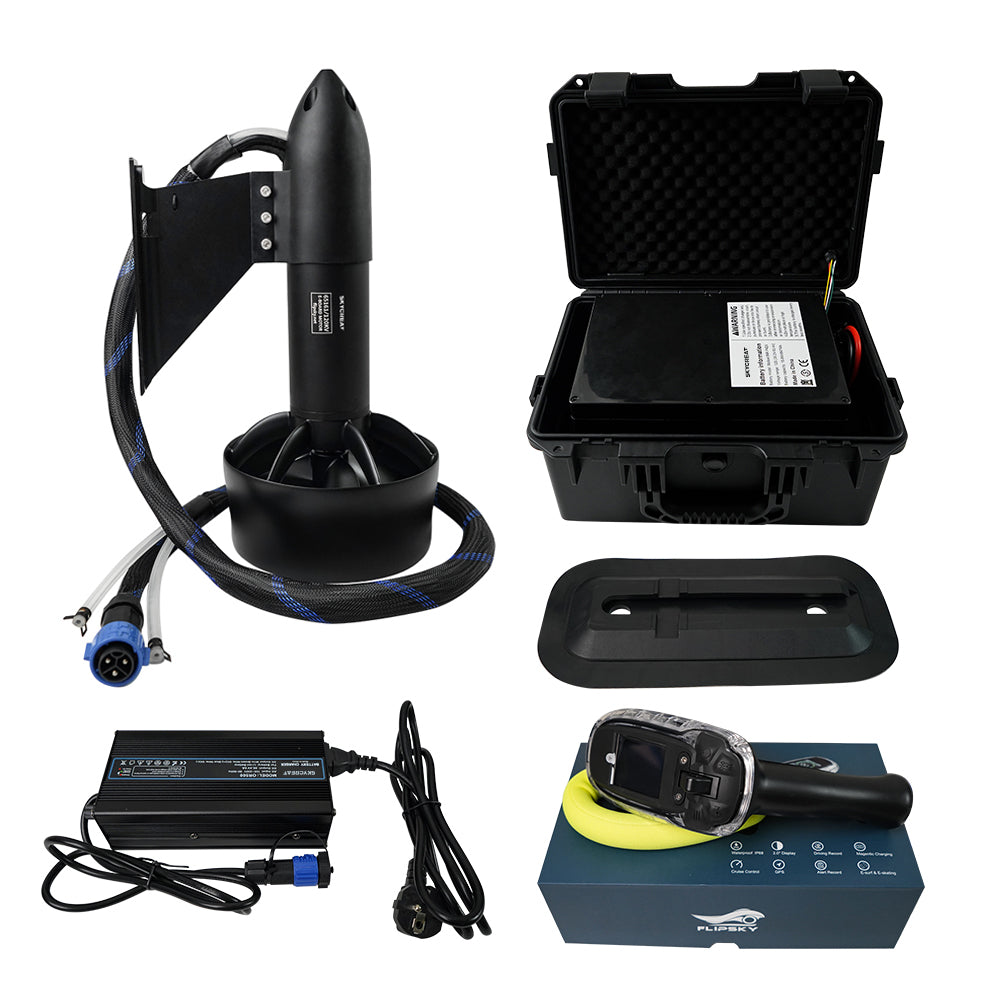

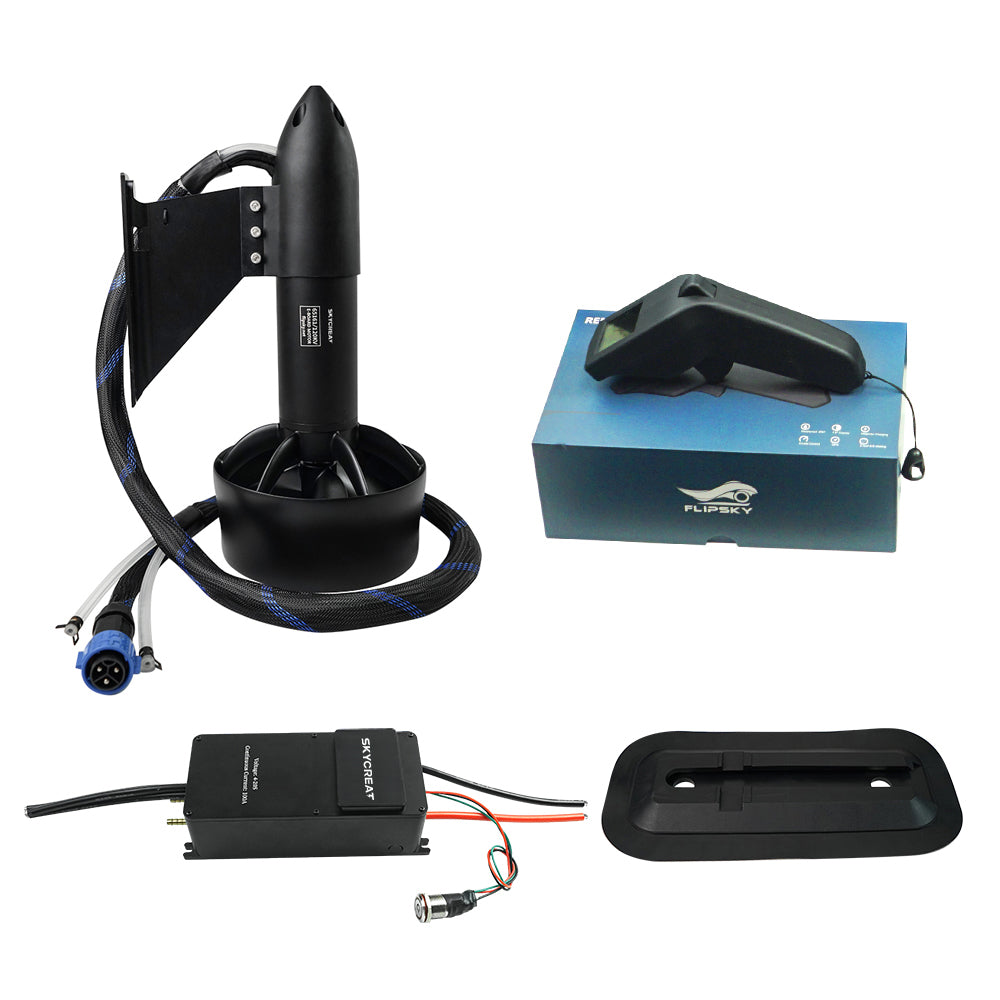

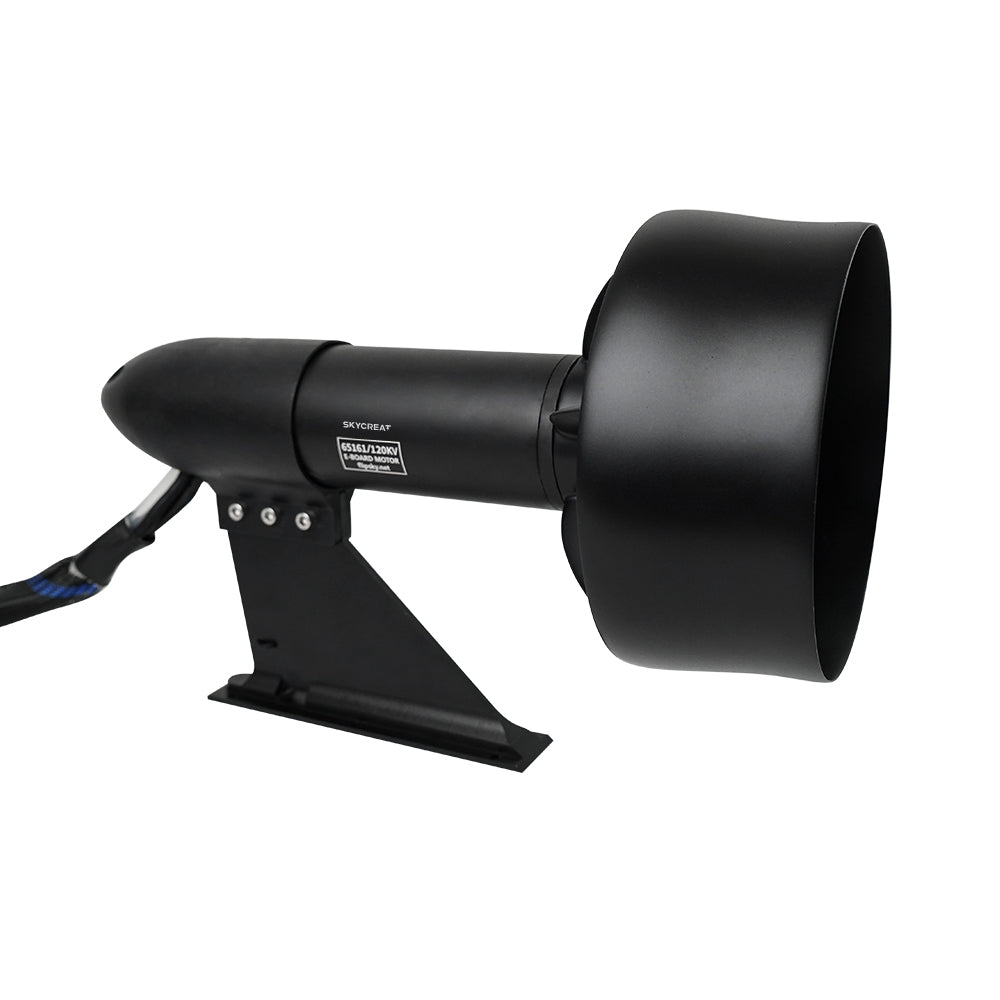

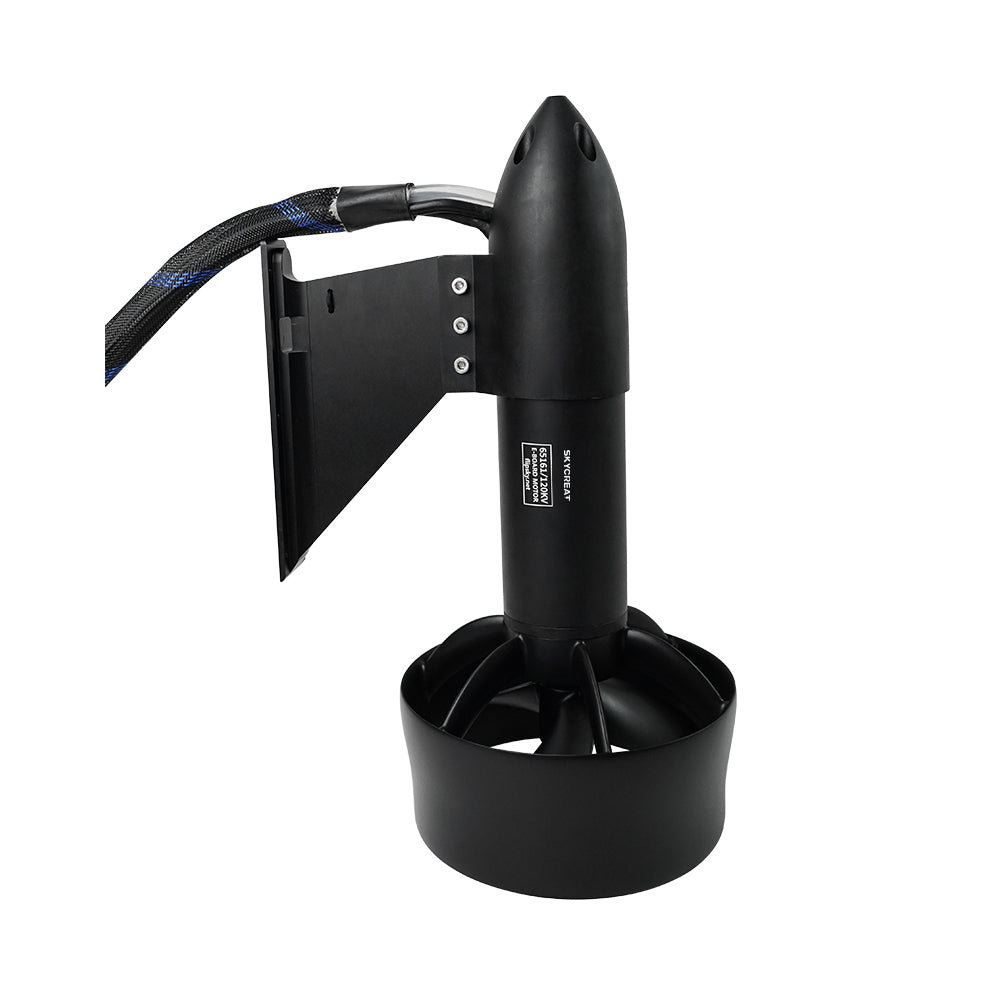

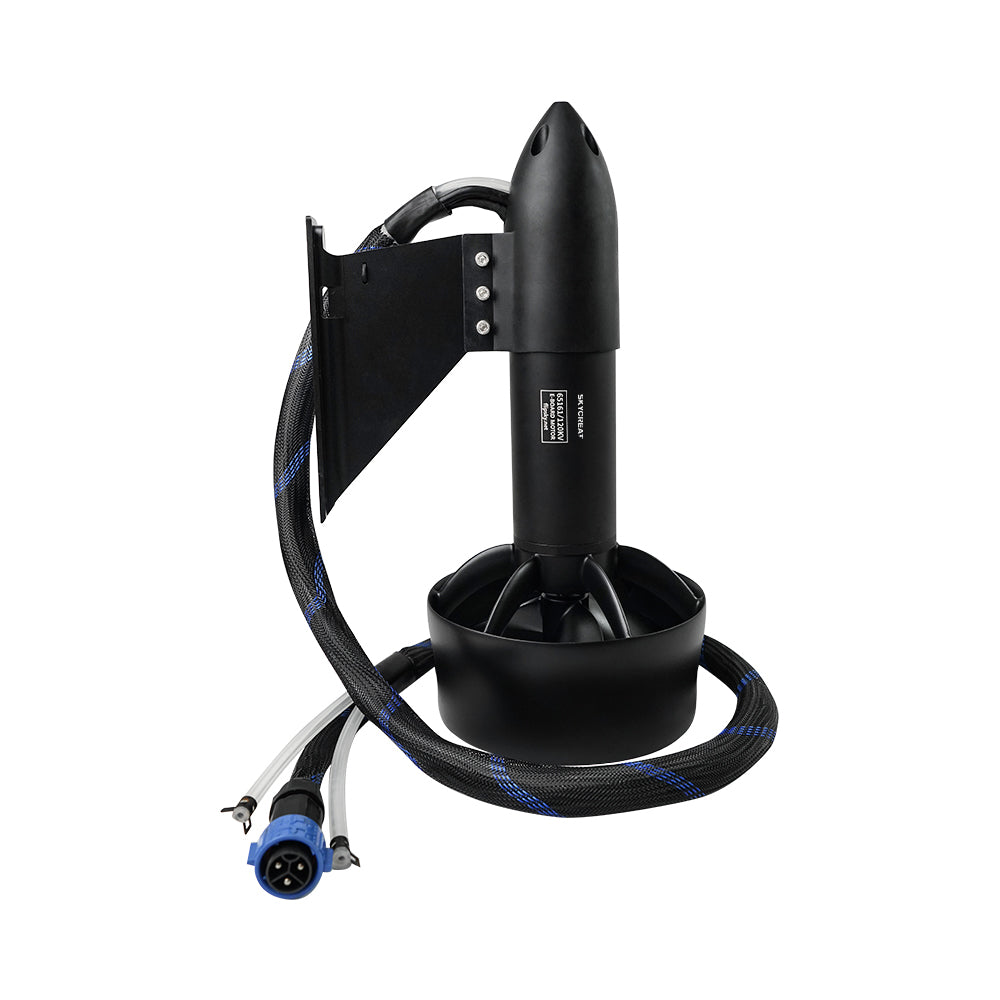

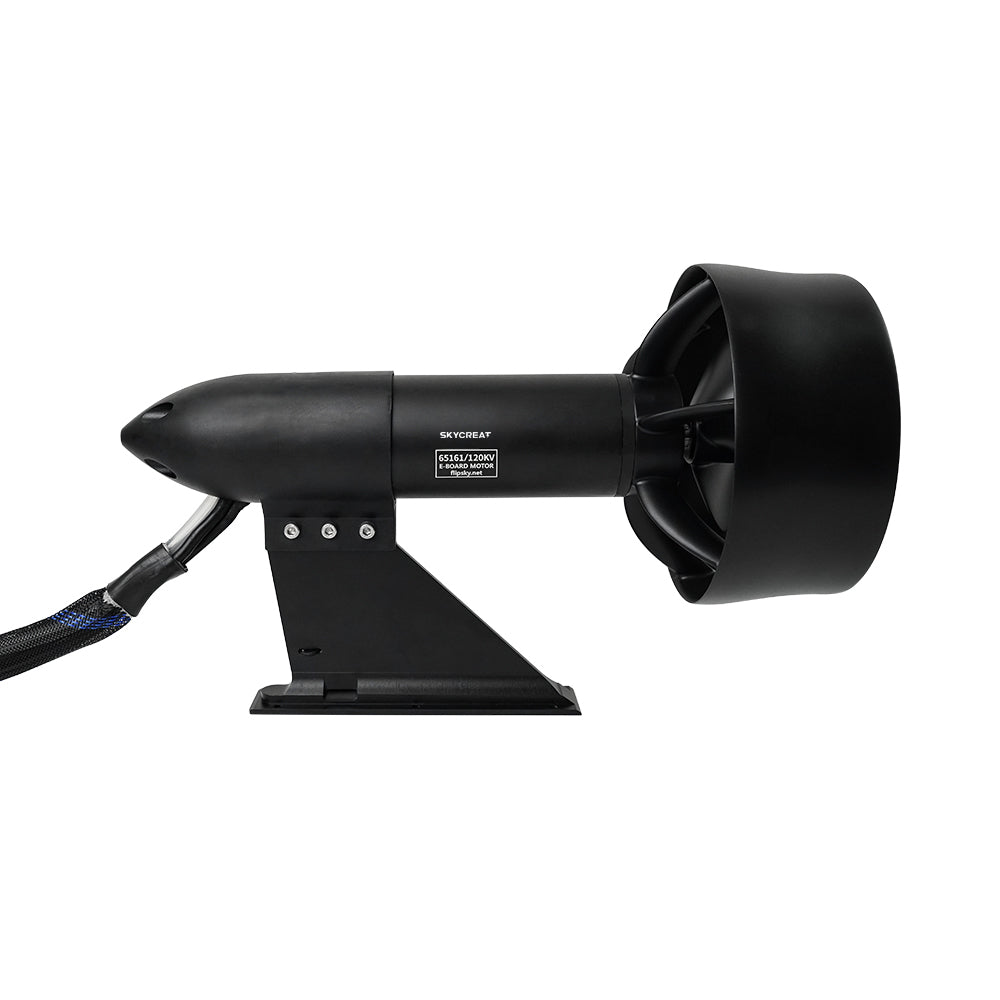

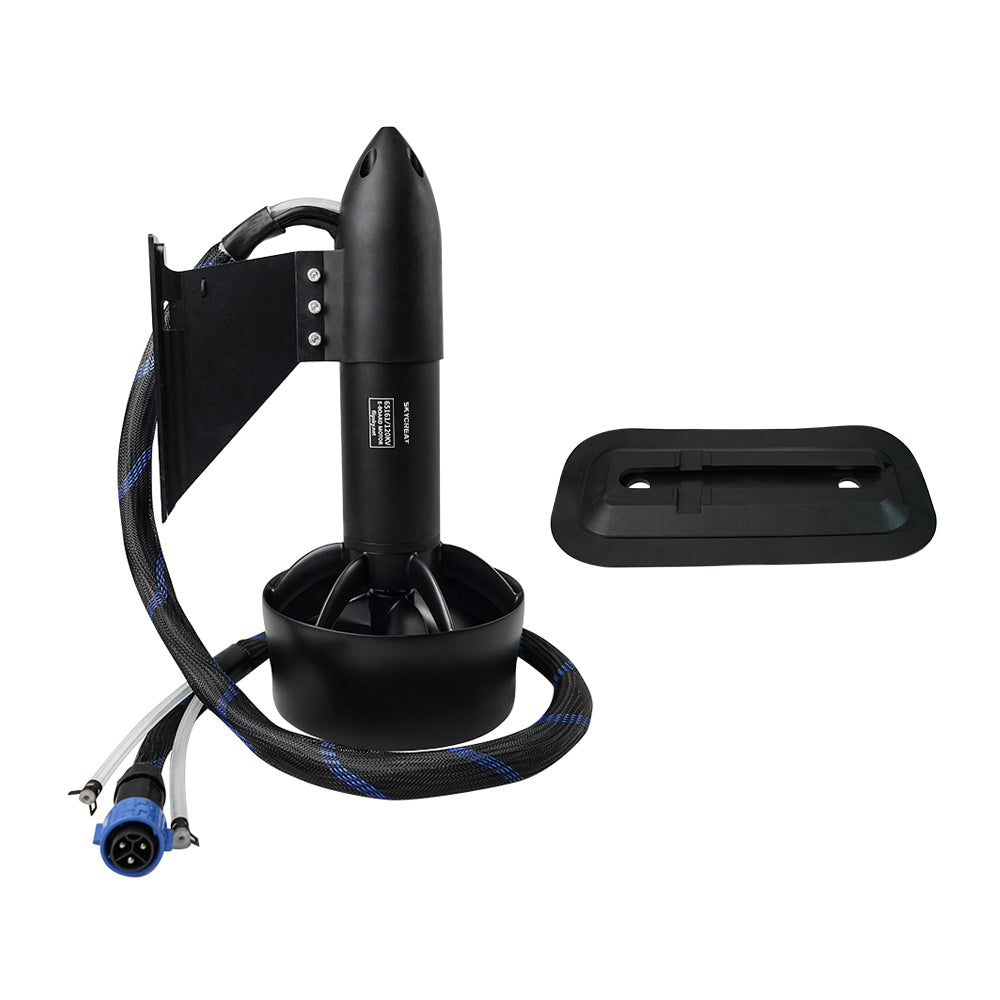

Skycreat Motor 65161(152mm): 6000W Waterproof Underwater Thruster - Electric Boat Thruster for ROV, RC Boat, Jet Boards, Outboard Motors, and Drive Boat Jets

SKU:FT-PC-65A161100

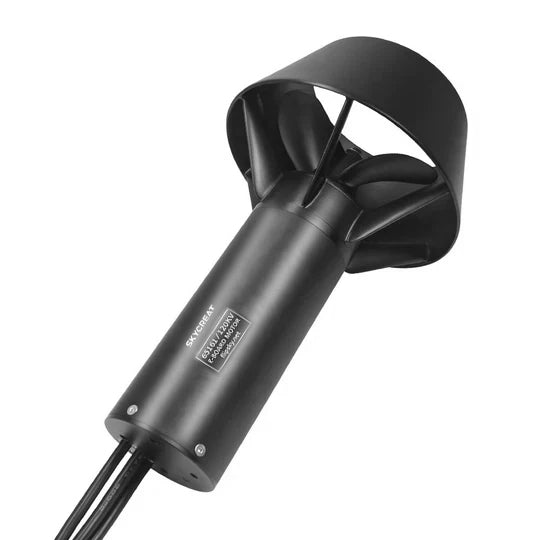

65161 Motor Spec:

• Voltage range: 6-20S (25.2-84V)
• Max Spin Speed(RPM): 16380
• KV(RPM/V): 120KV/100KV
• Max Power:6000W,rated power 3000W
• Peak current: 200A
• The number of pole: 6(please write 3 pairs when do setup)

• Max torque at 60%:9NM
• Demension: D65*L161mm
• Max working temperature: 120°C
• Insulation voltage & leak current: AC500V/10MA/3S
• Lead wires extension: 8AWGx1300mm
• Waterproof level:IP68
• Weight:3kg

• Motor wire: 8AWG

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

ESC

• ESC model:75200 Pro V2.0With Water Cooling Enclosure

• Voltage: 14-84V (safe for 4-20S)
• Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
• BEC: 5V@1A
• Support Modes: DC, BLDC, FOC (sinusoidal)
• ERPM: 150000
• Communication Ports: USB, CAN, UART

• Input Source Support: PPM, ADC,  UART
• Supported Sensorless: Yes
• Regenerative capacity: Yes
• Programmable via VESC_TOOL: Yes
• 75200 Size:130x67.7x40.1mm(Including alu. case)
• Motor/power wire size: 8 AWG

Remote control

• remote control:VX3 / VX5（Transparent）
• Control mode :UART
• Remote control distance: no interference, 25 meters in a straight line
• Waterproof grade:IP67
• There are 3 adjustable gears (L/M/H)
• Functions: Cruise control, GPS speed display, infinite throttle
