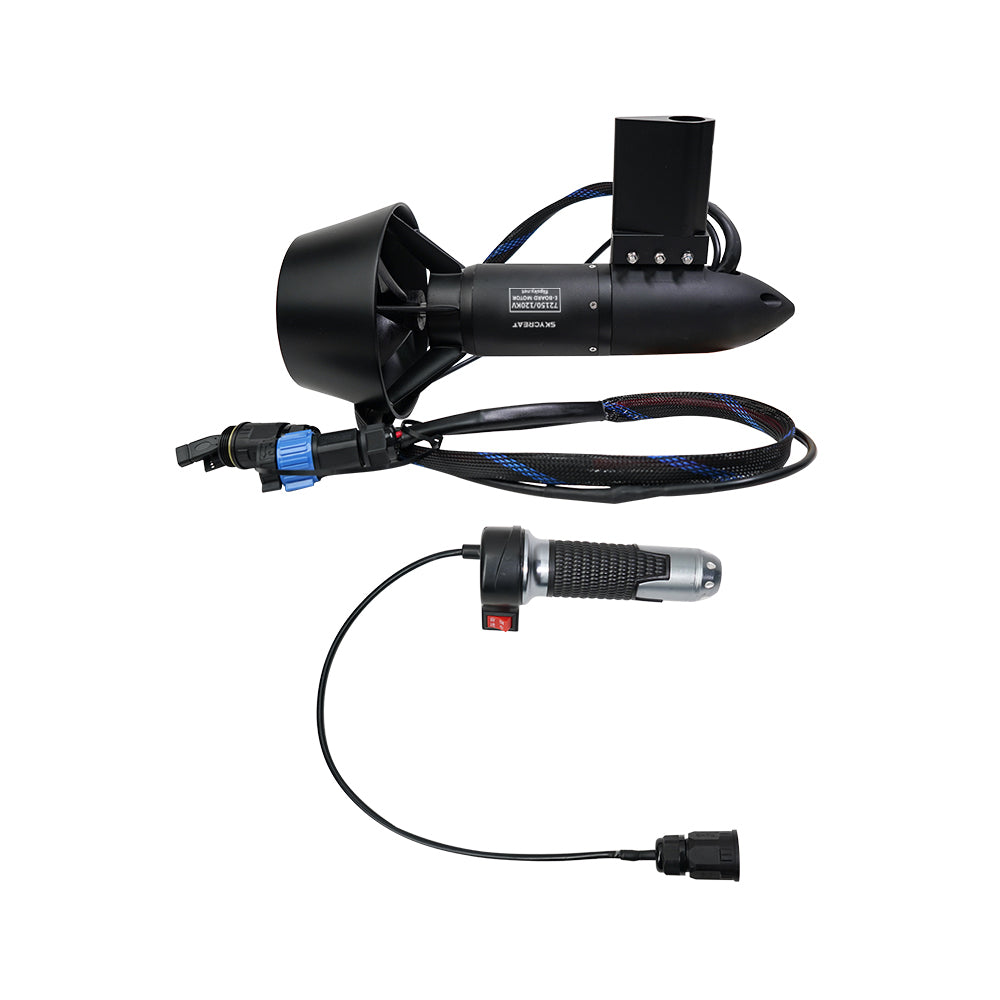

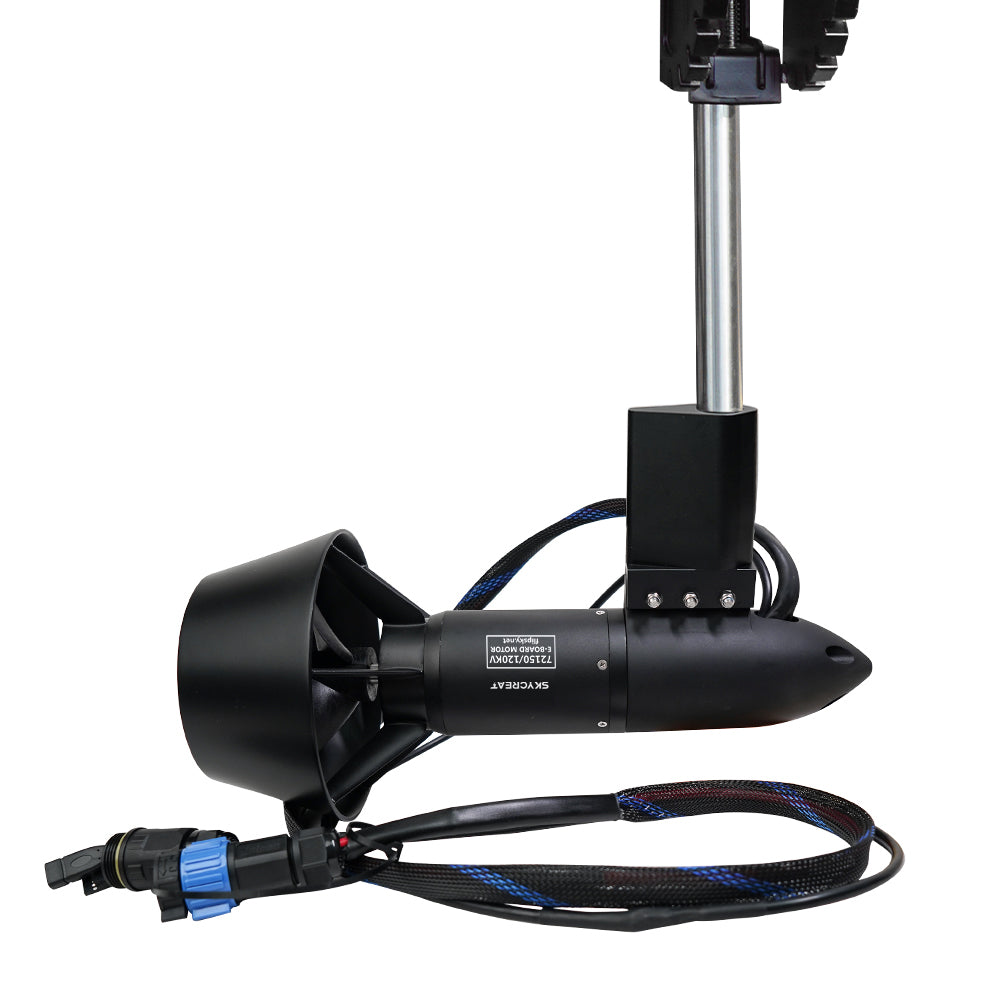

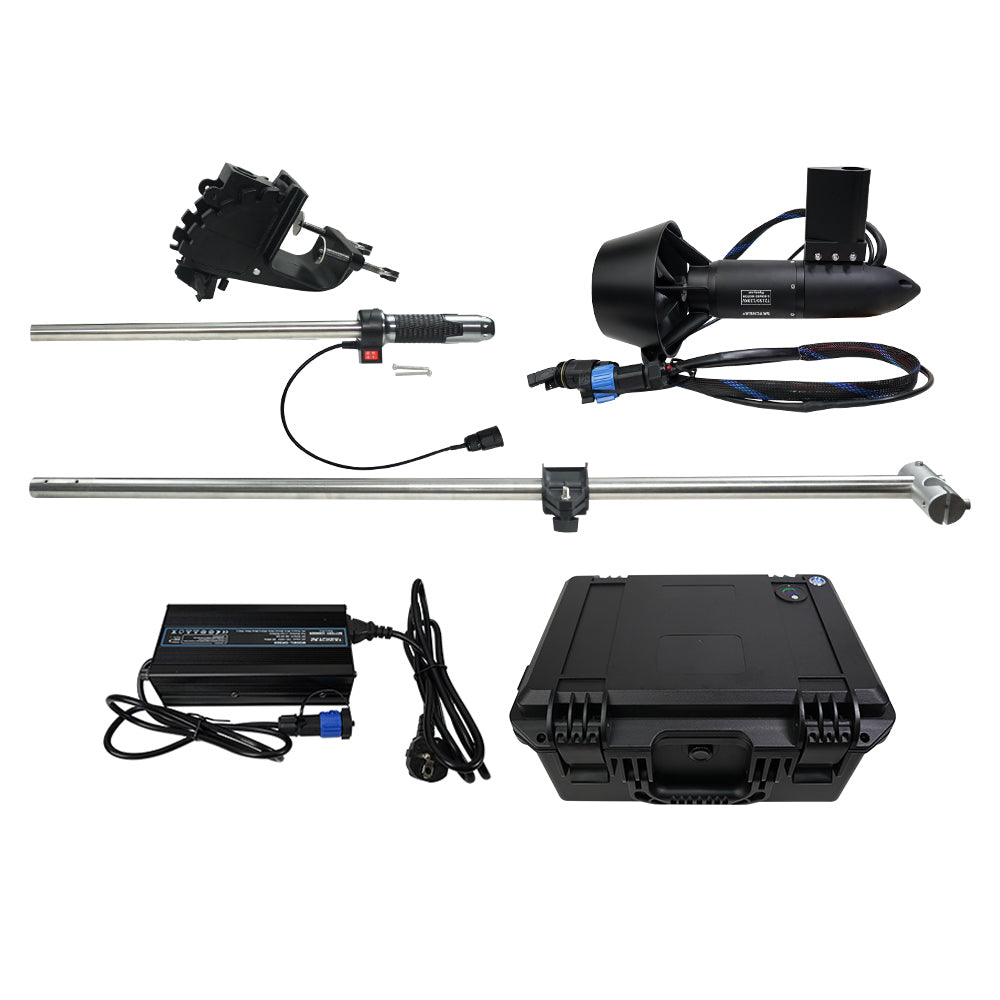

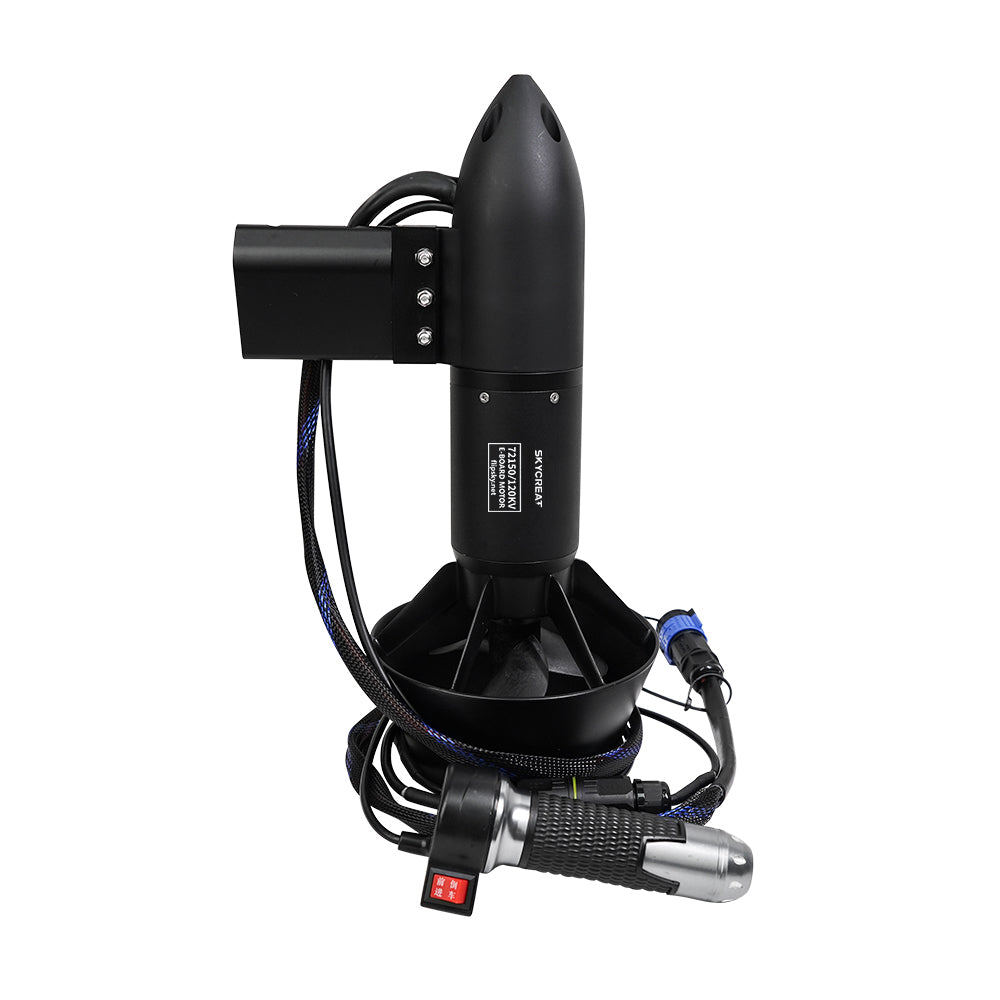

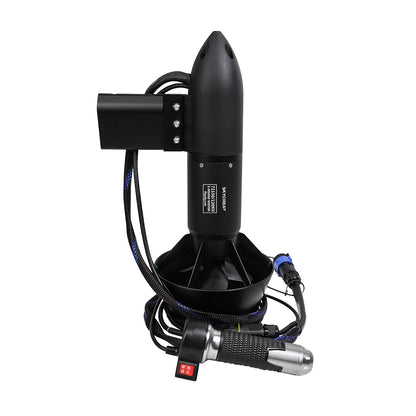

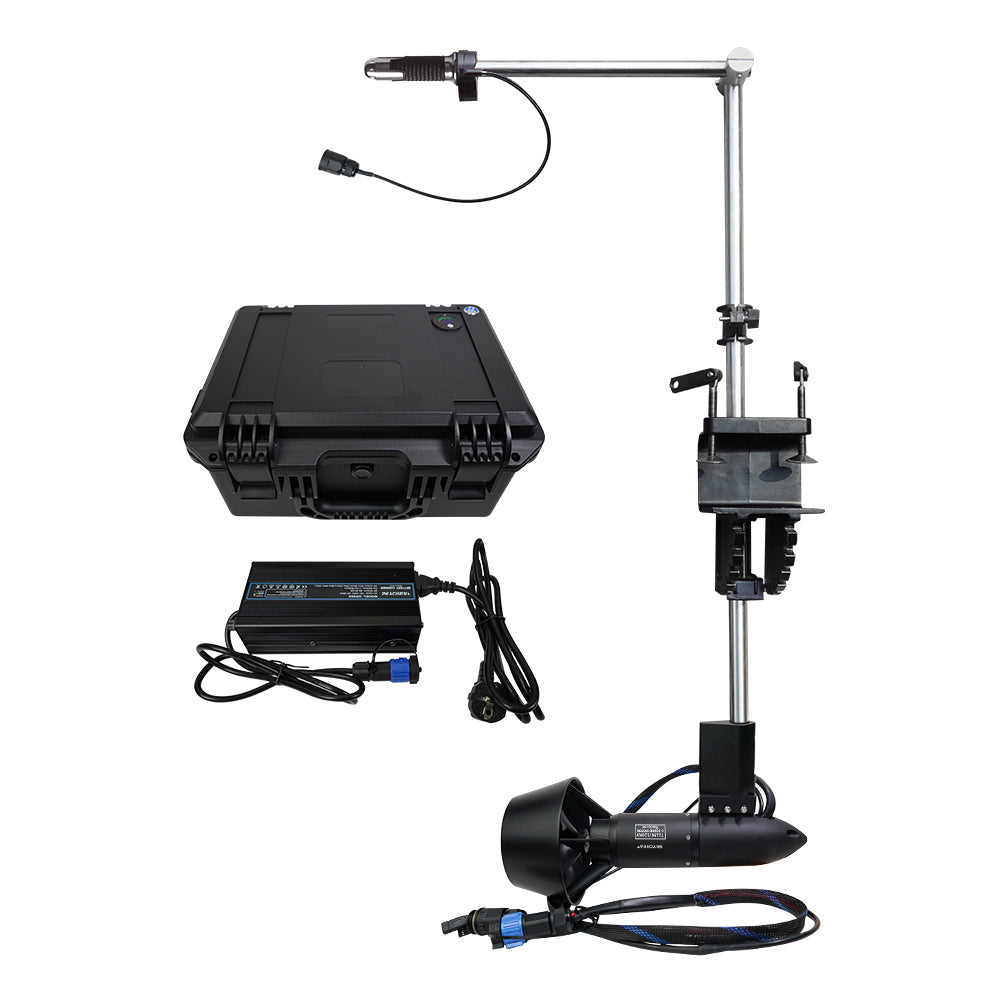

Skycreat Electric Outboard Motor 72150 3000W / ESC 2-in-1 Combo electric propeller outboard motor inflatable boat electric outboard

SKU:FT-OE-72150E302

72150 Motor Spec:

• Voltage range: 6-12S (25.2-50.4V)
• Max power: 3000W; Continuous power: 1700W
• Peak current: 60A; Continuous current: 40A
• Motor KV: 120KV

• Motor slots & poles: 12N/14P

• Waterproof rate: IP68
• Lead wires extension: 10AWGx1200mm
• Connector: XT90 Female
• Max thrust: 32

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 3 hours
• Operating time: 90-120 minutes (recommended cruising power: 500W)

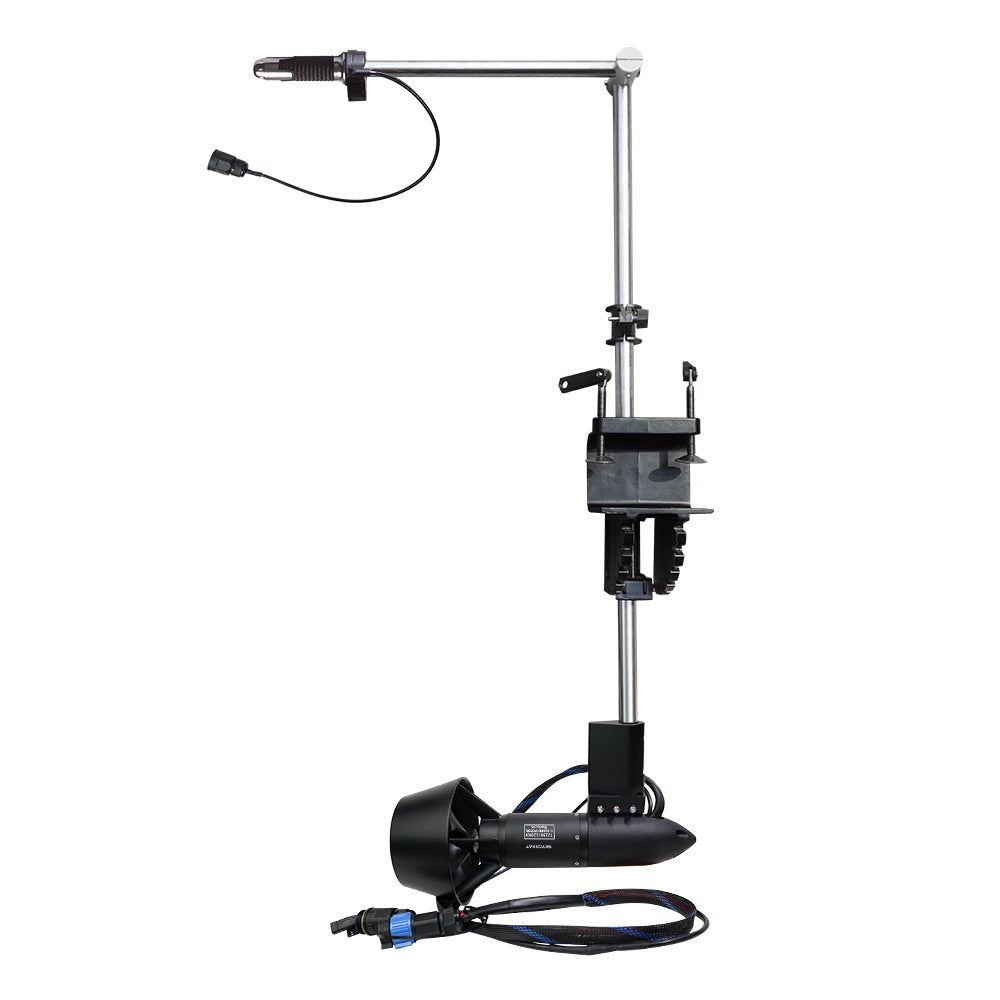

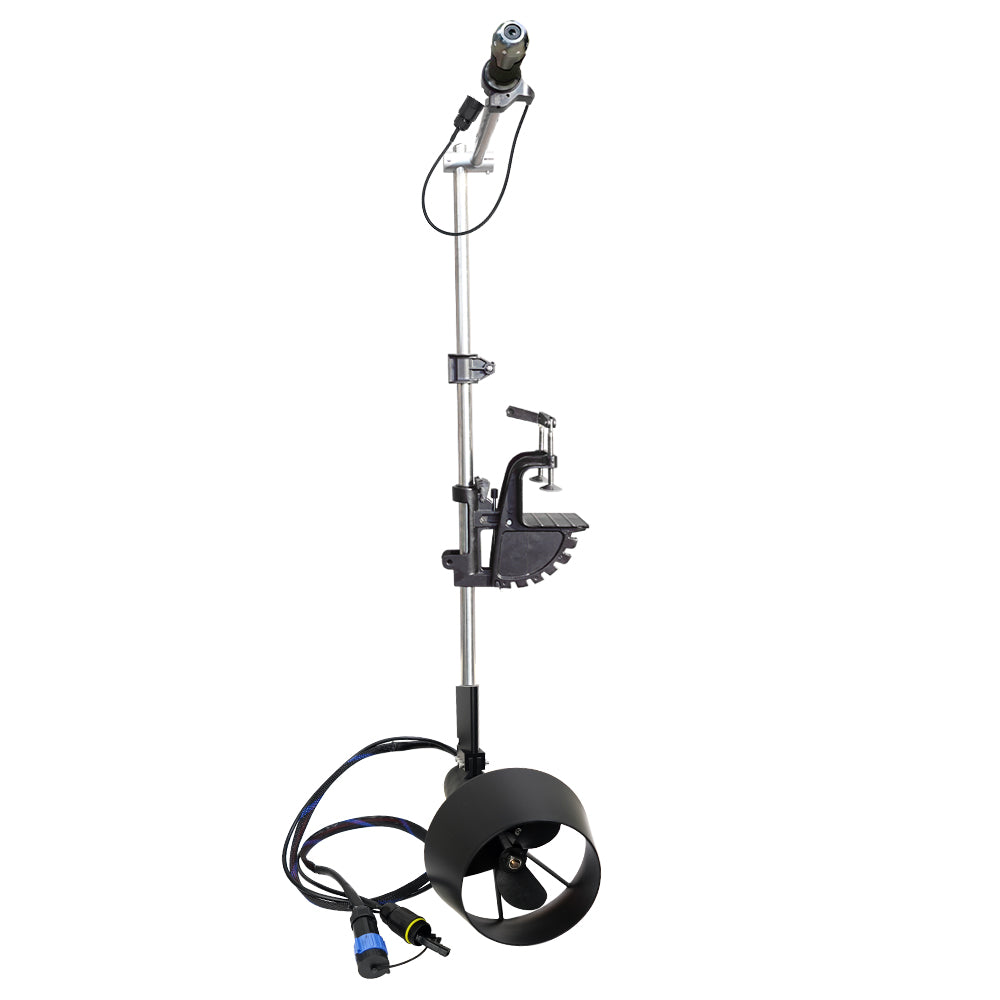

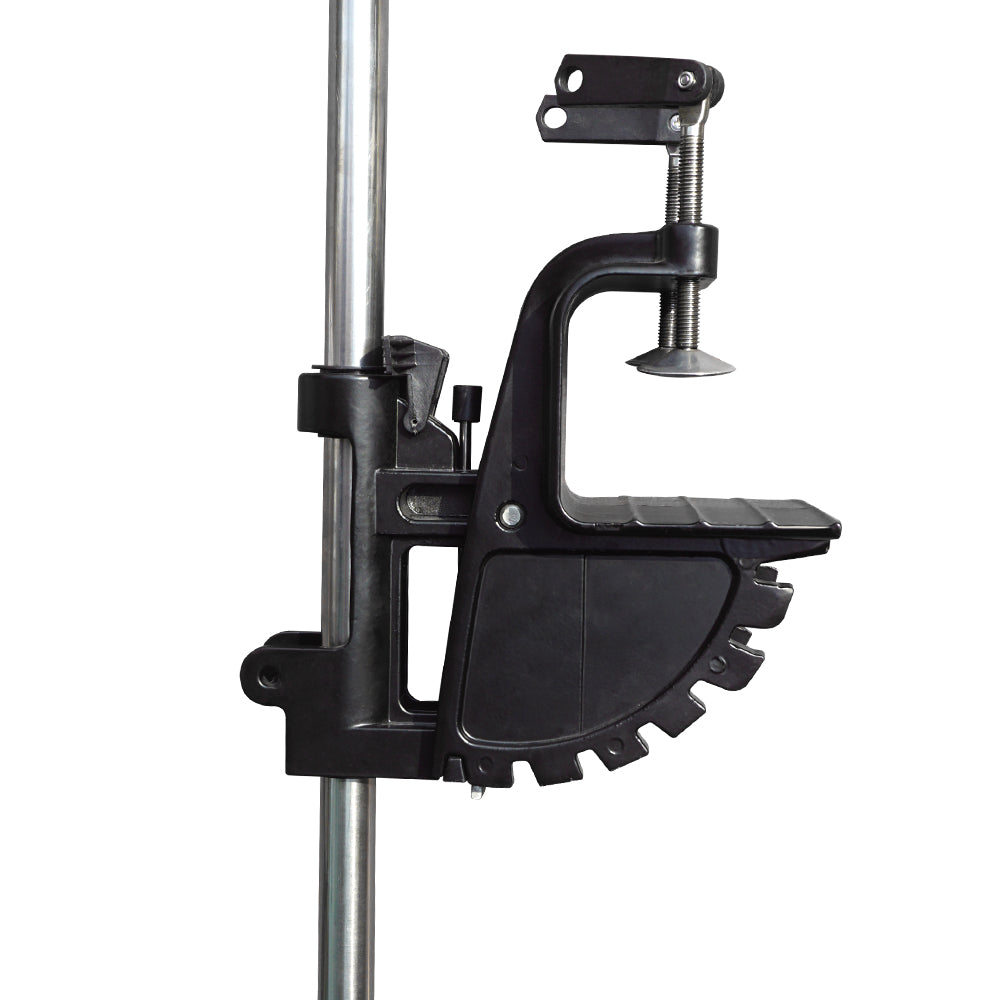

Outboard Motor Mount

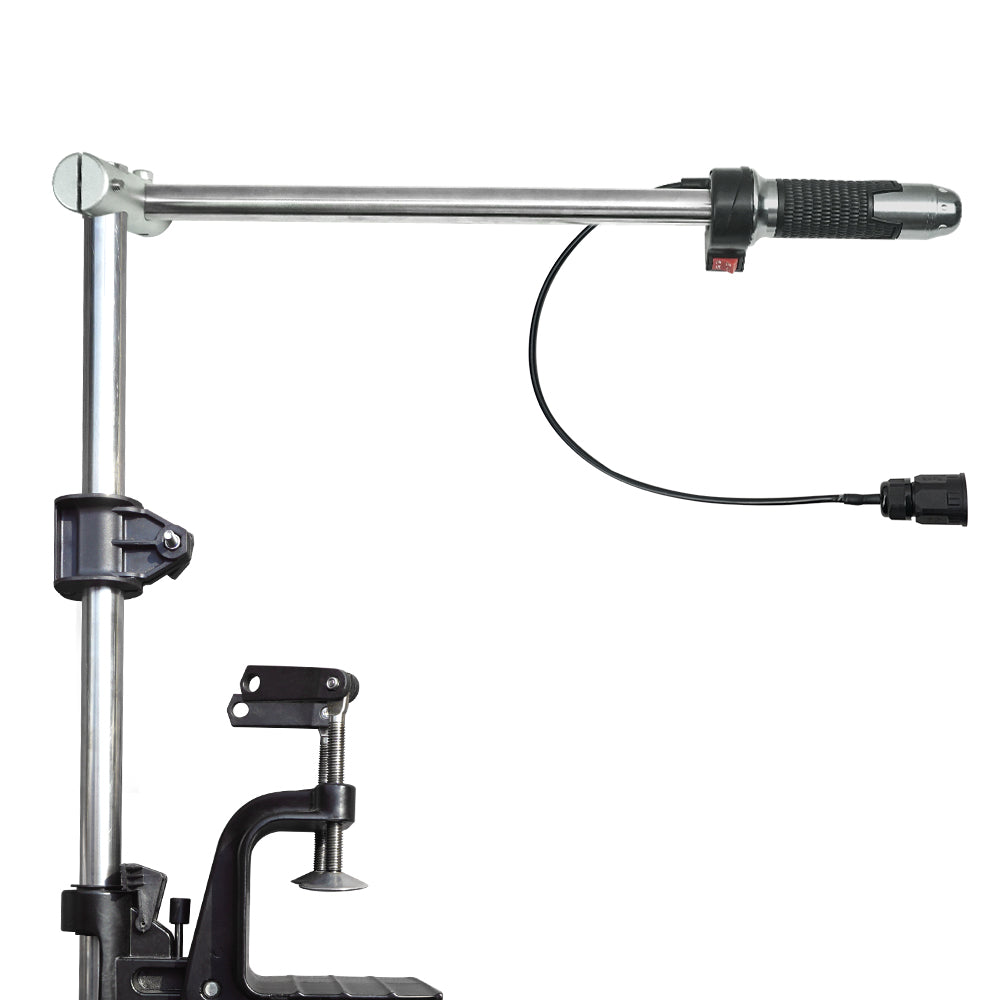

• Remote Control: Throttle Handle

• Control Mode: ADC

• Remote Range: Wired Control

• Waterproof Rating: IP58

• Gear Positions: Forward, Reverse
• Function: Control motor rotation direction

ESC integrated Spec

• ESC type: Flipsky Mini FSESC6.7 PRO
• Control Interface Ports: USB,CAN,UART
• ESC Drive Mode: ADC, reserved PPM
