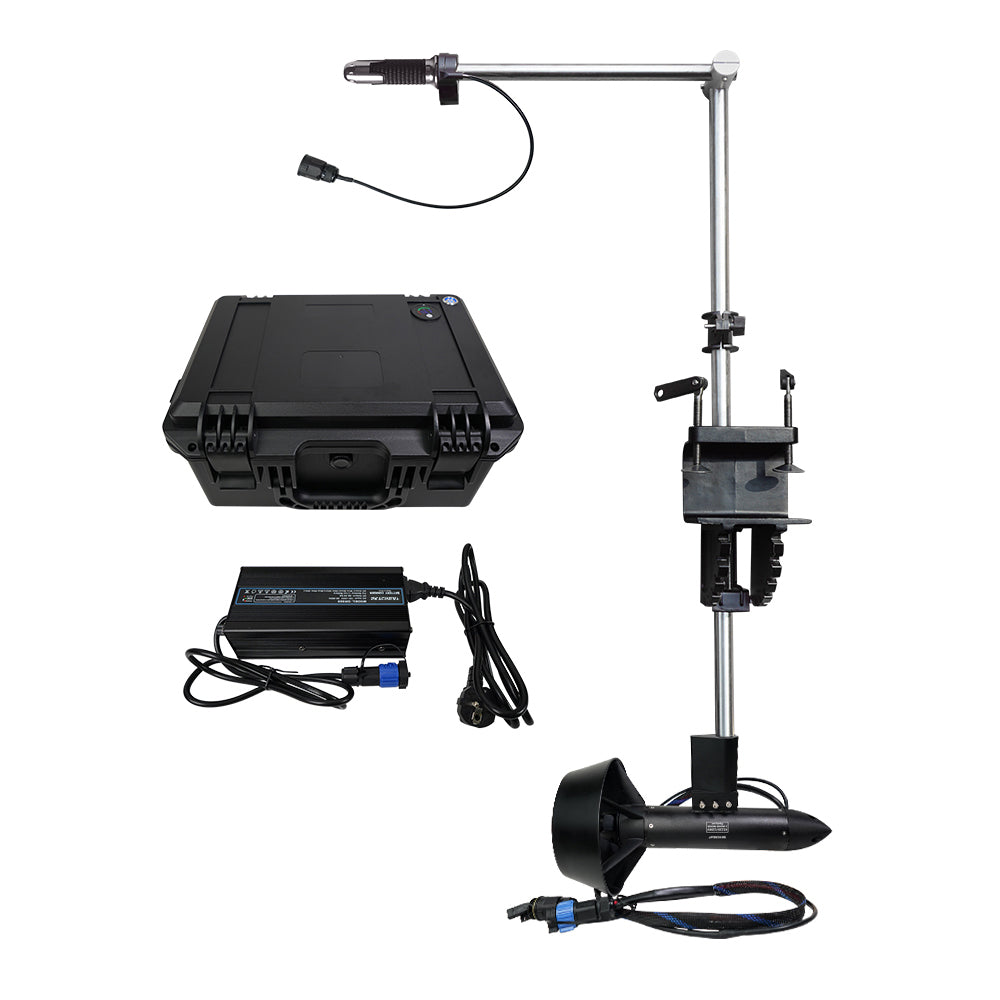

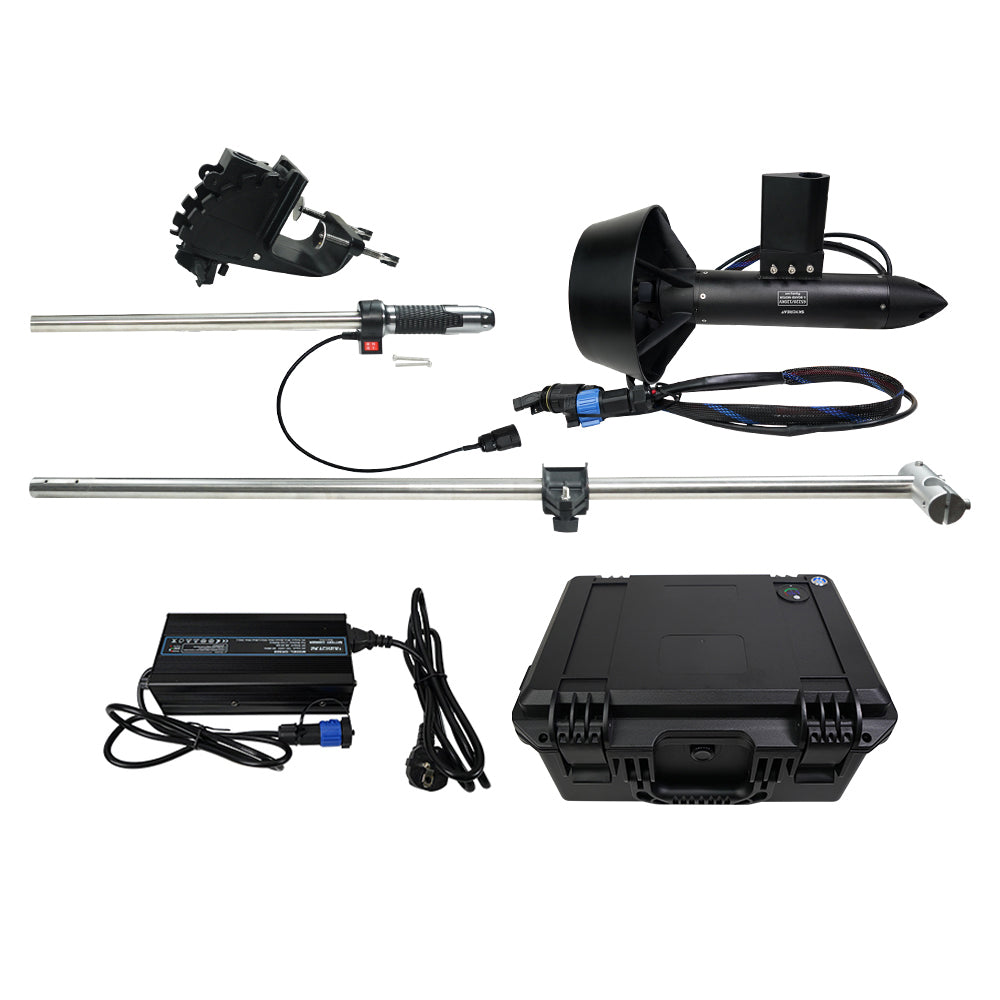

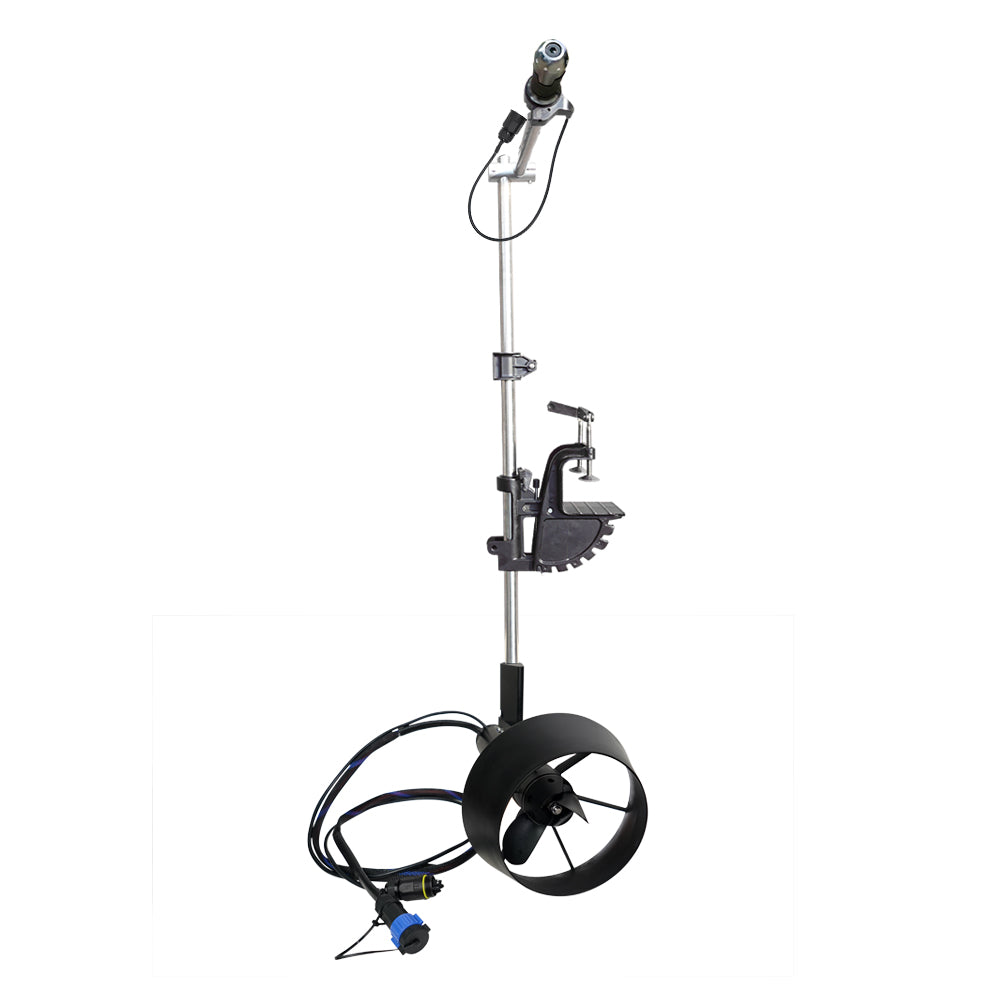

Skycreat Electric Outboard Motor 65220 6000W / ESC 2-in-1 Combo electric propeller outboard motor inflatable boat electric outboard

SKU:FT-OE-65220E102

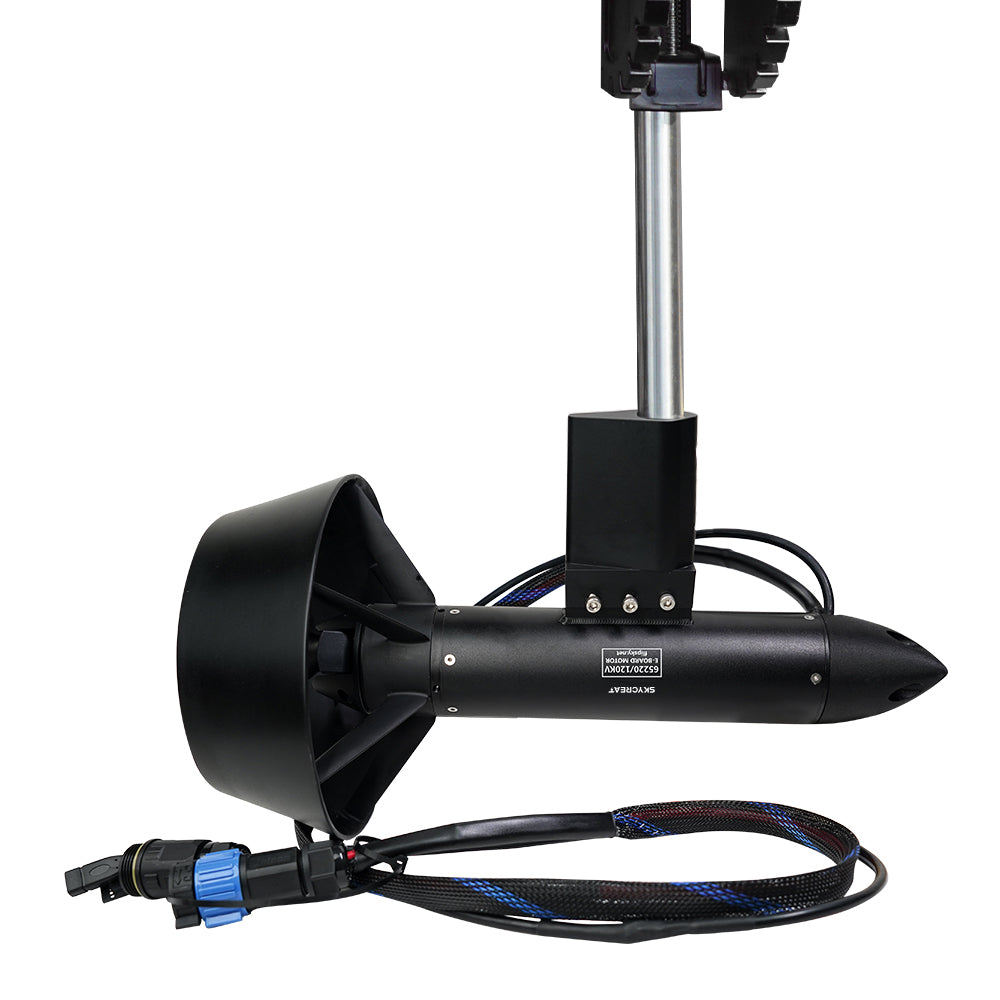

65220 Motor Spec:

• Voltage Range: 6-20S
• Maximum Power: 6000 W,Rated Power: 3000 W
• Rated Current: 60 A @50V
• Maximum Current: 100A @30V
• Insulation Current: AC 500V / 1mA / 3s
• Resistance: 58 mΩ
• Inductance: 170 μH
• Three-phase Wire: 3 x 10 AWG (5.5 mm)
• Power Connector: XT90
• Shaft : Φ12 -0.005 / -0.01
• Rated Torque: 6.3 N·m
• Number of slots & poles : 18 N / 6p
• Maximum Torque: 9 N·m
• Waterproof Level: IP68
• Weight: 3.23 kg

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 3 hours
• Operating time: 90-120 minutes (recommended cruising power: 500W)

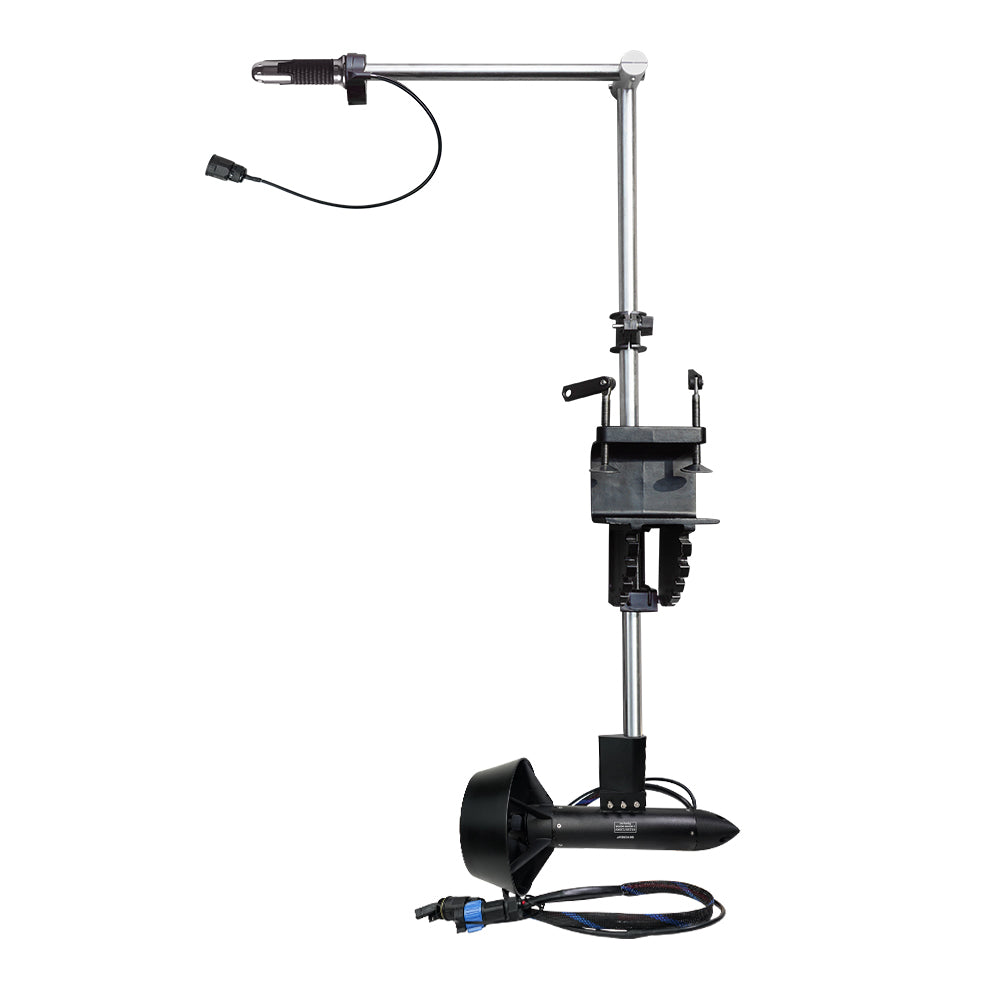

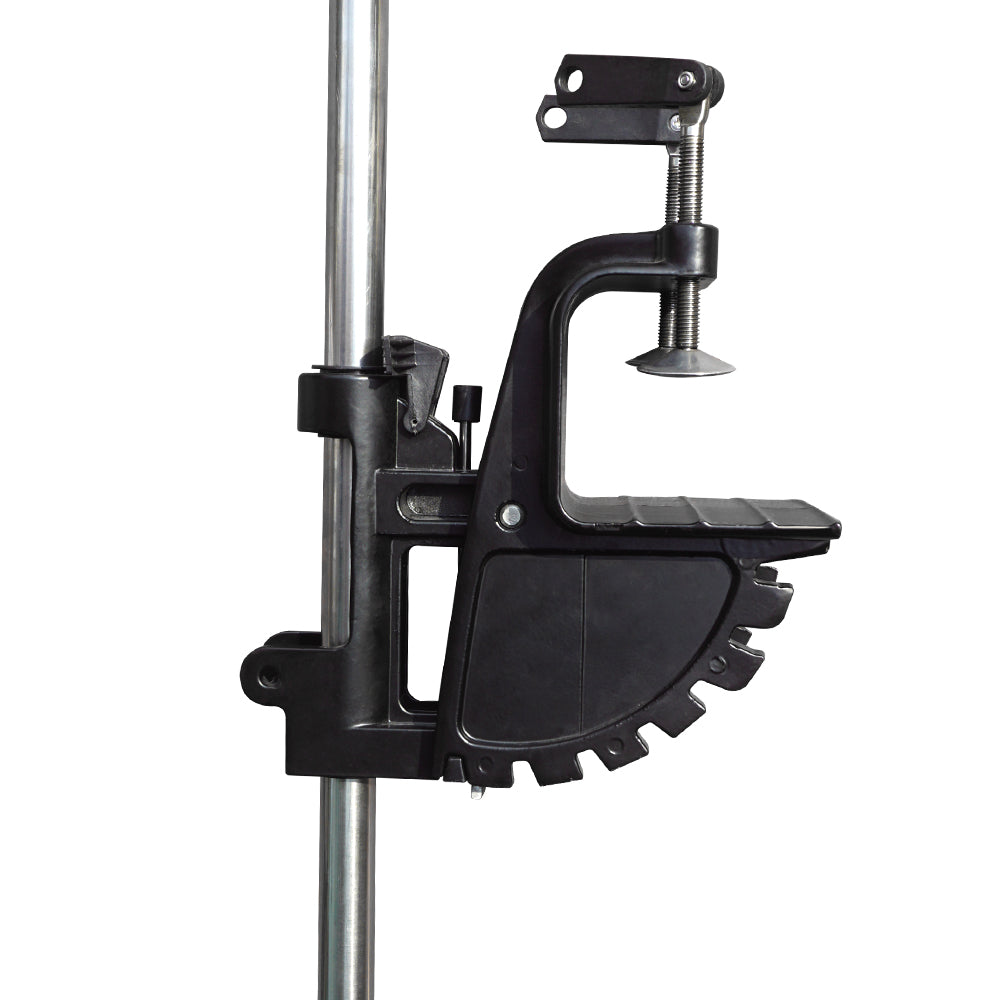

Outboard Motor Mount

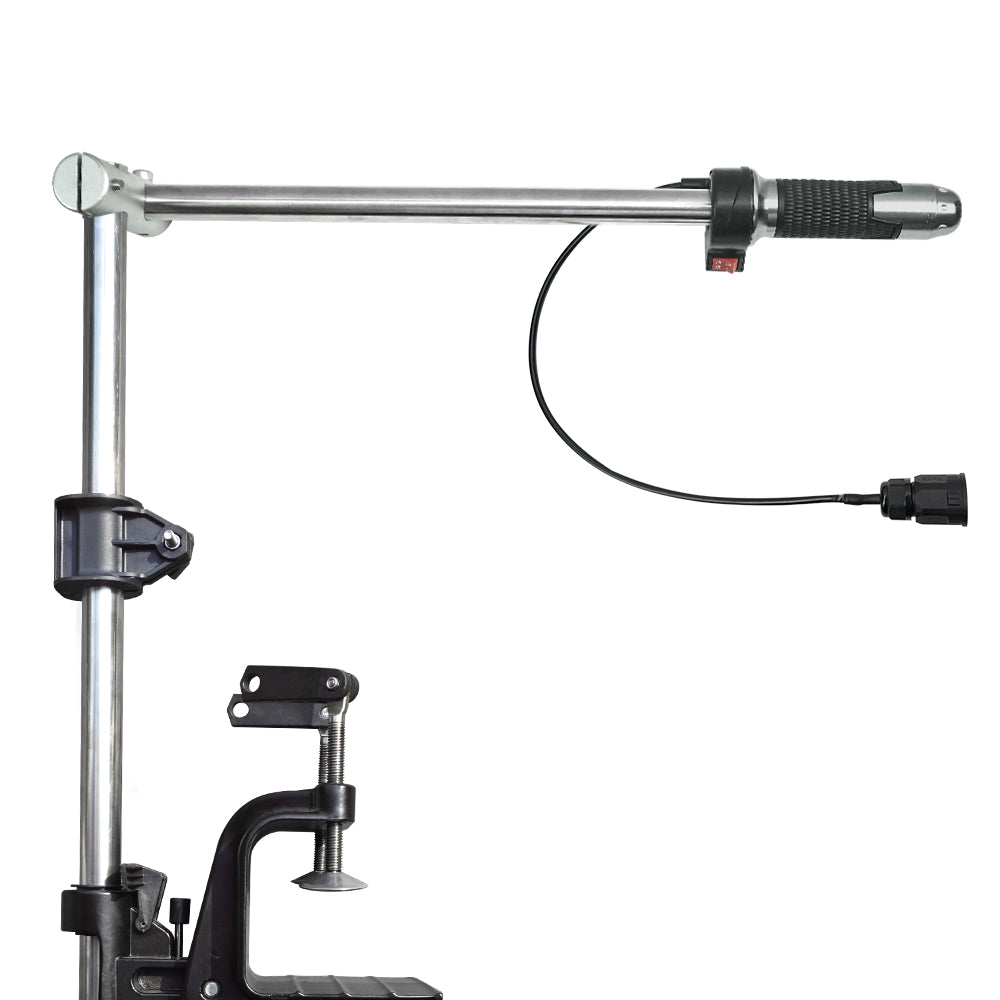

• Remote Control: Throttle Handle

• Control Mode: ADC

• Remote Range: Wired Control

• Waterproof Rating: IP58

• Gear Positions: Forward, Reverse
• Function: Control motor rotation direction

ESC integrated Spec

• Firmware: 5.2 VESC TOOL3.0
• ESC type: Flipsky 75100
• ESC Drive Mode: ADC, reserved PPM
• Communication Port: Default USB (customizable to CAN)
