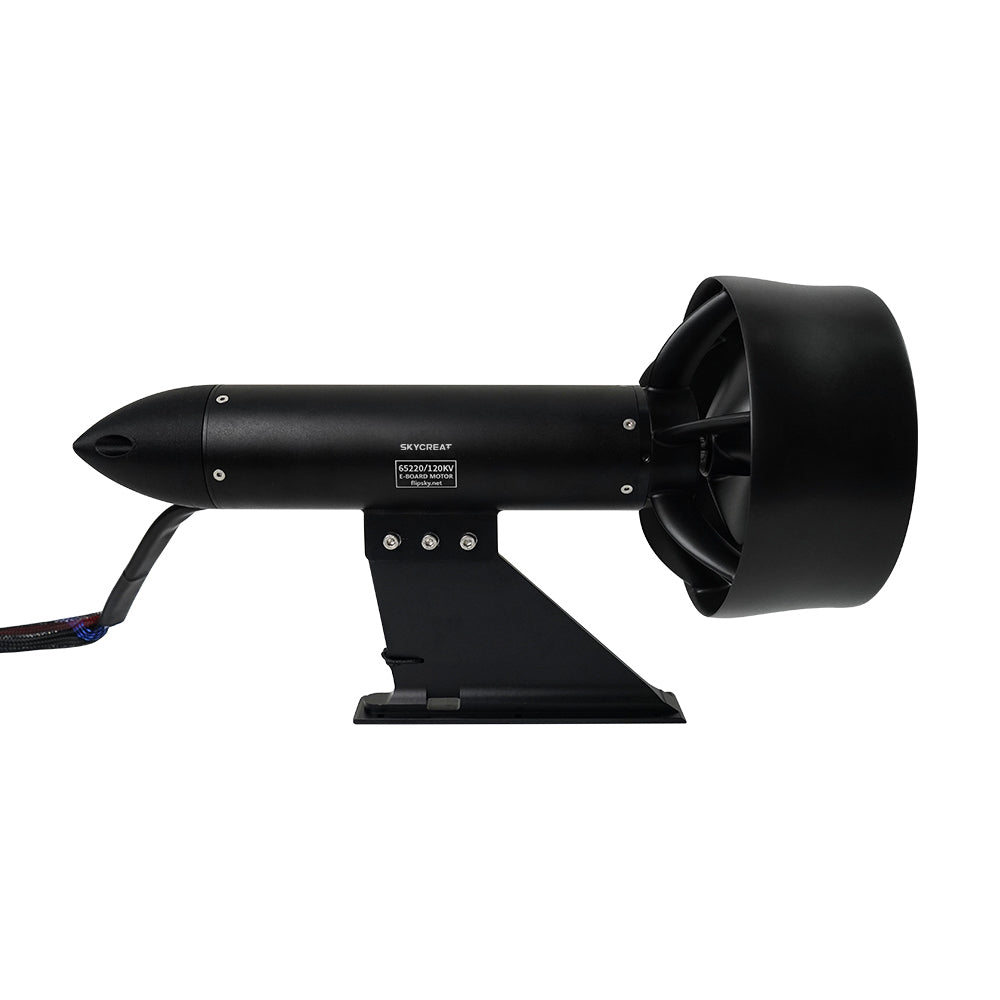

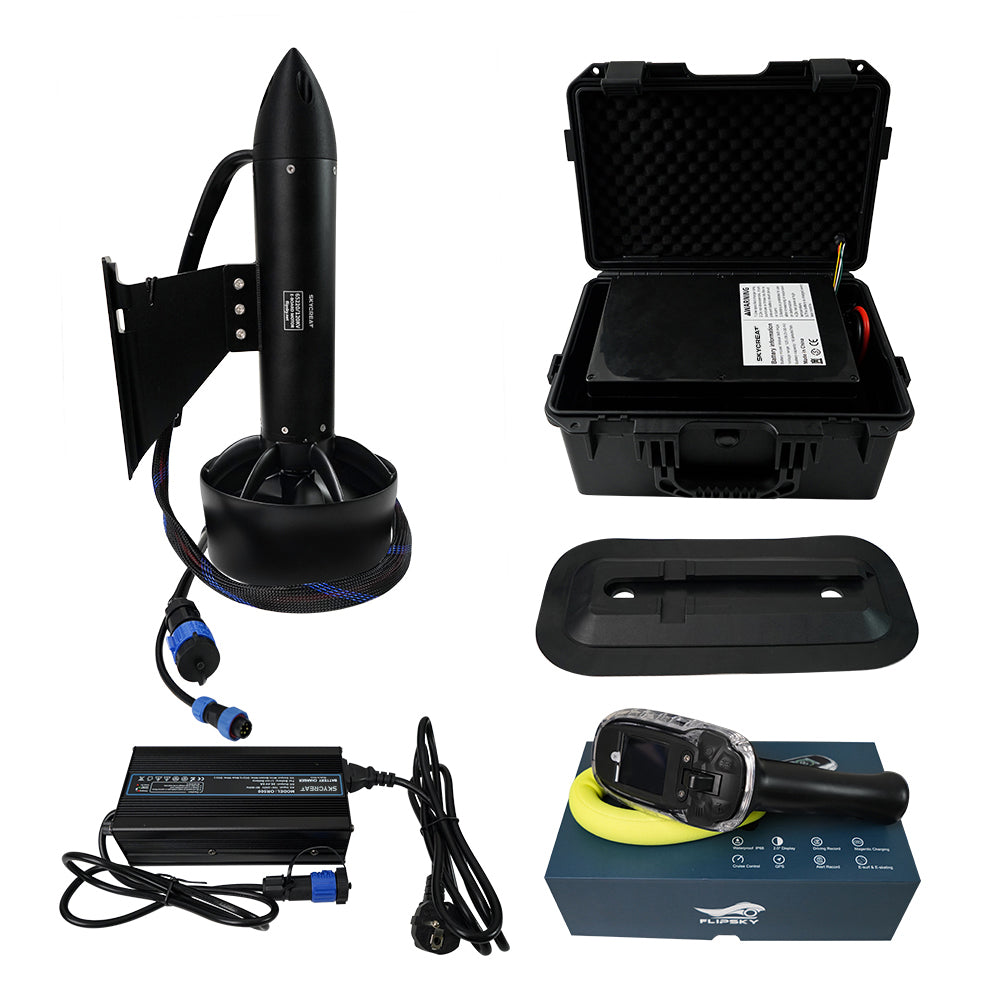

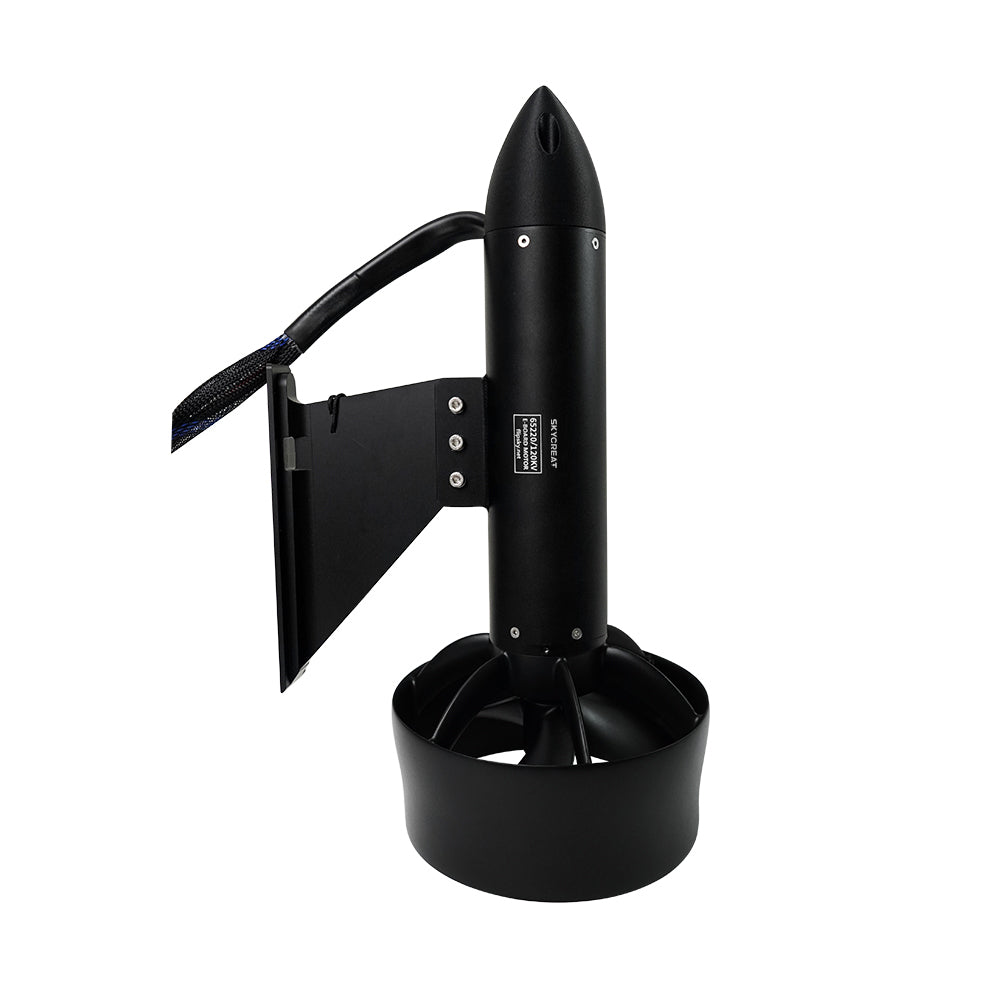

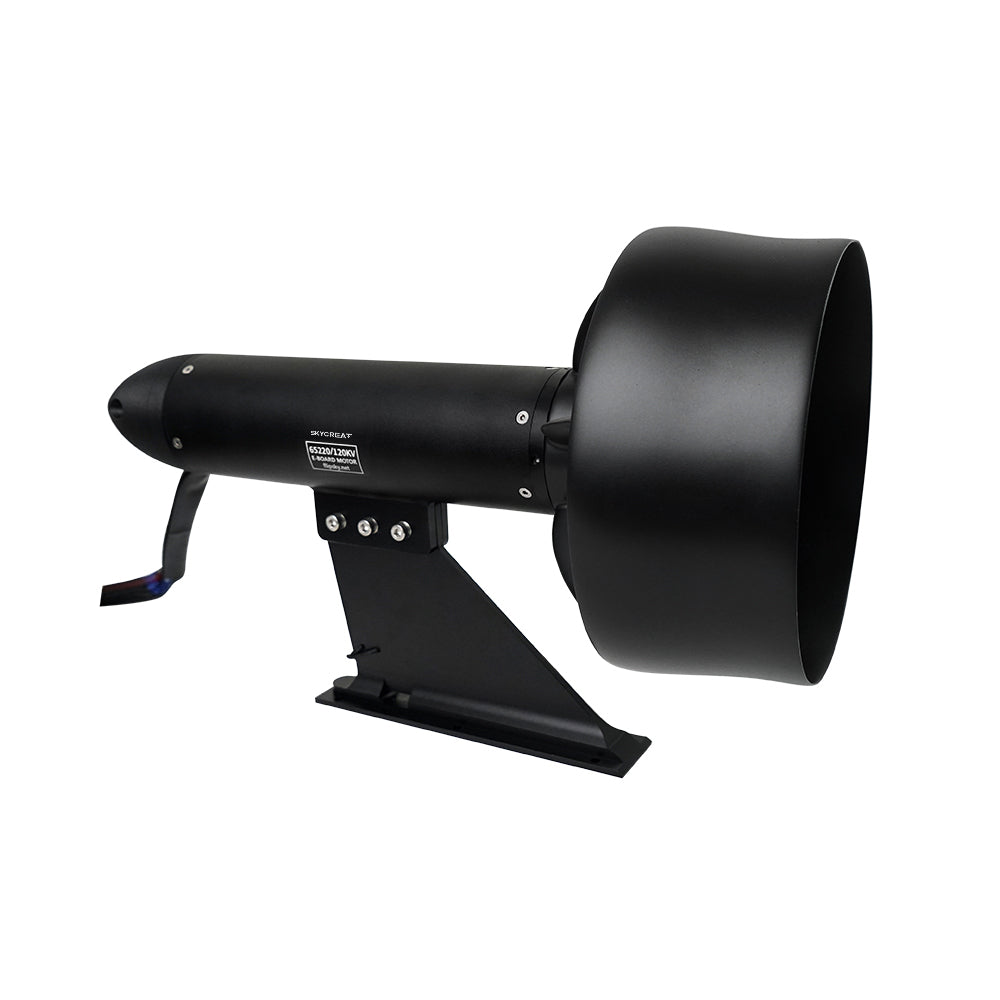

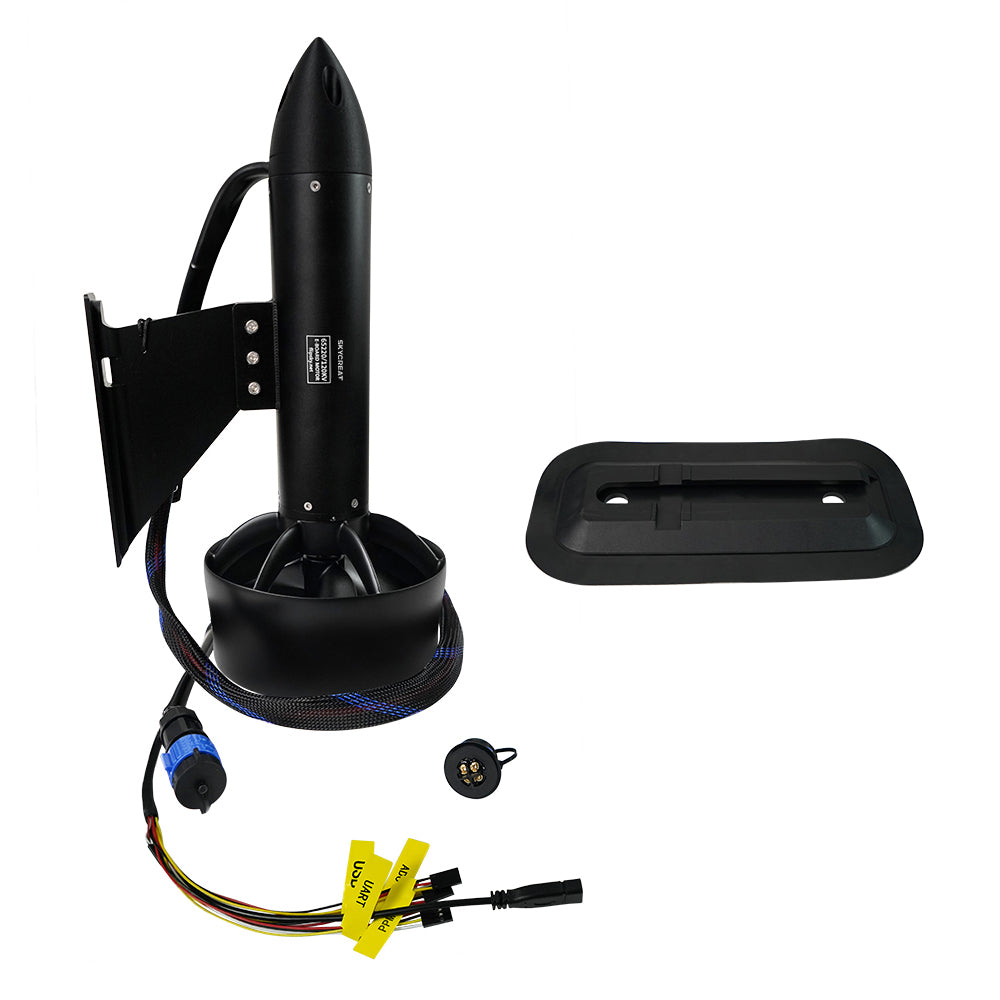

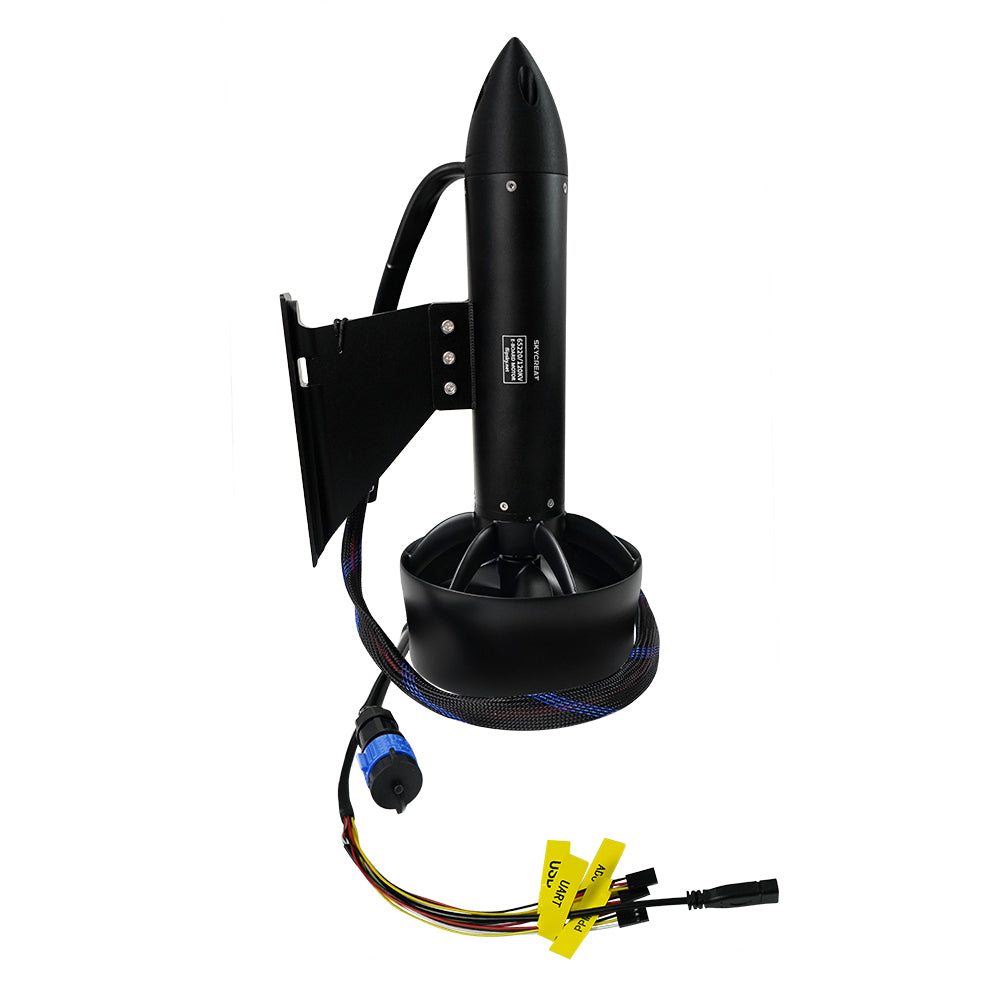

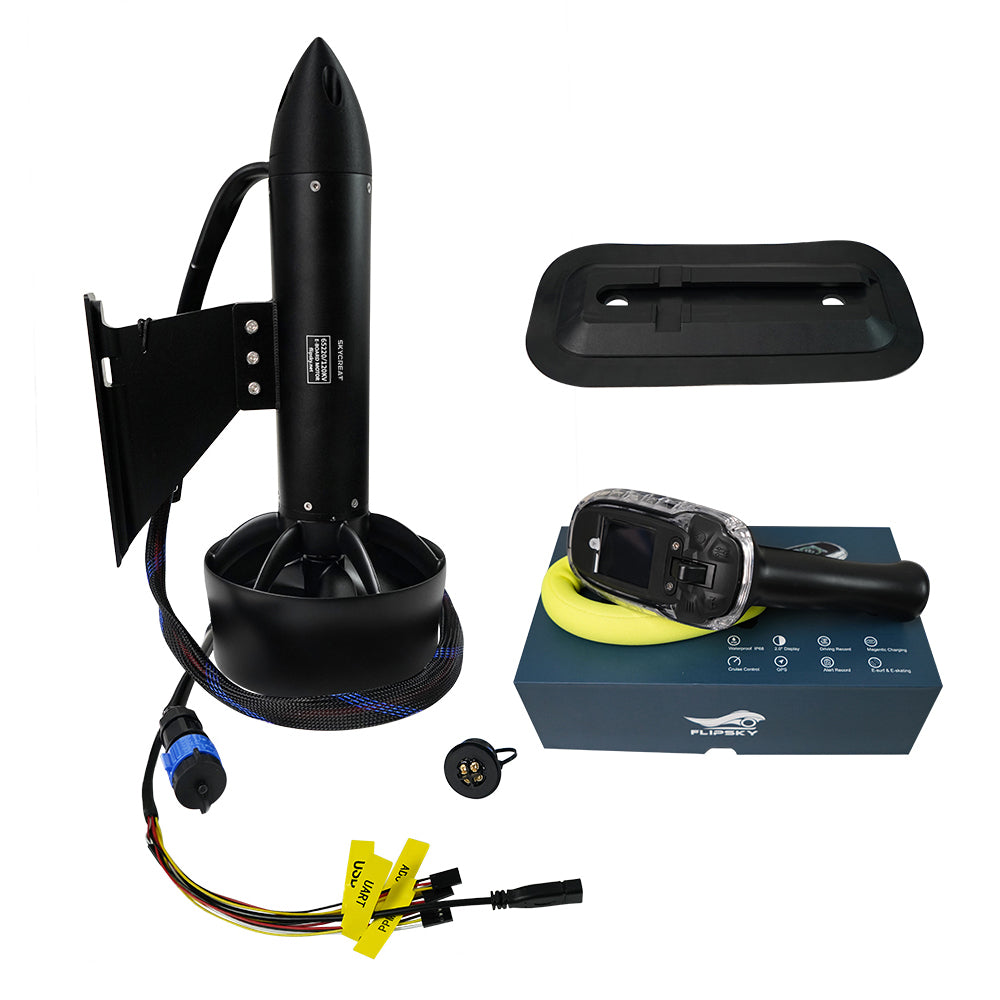

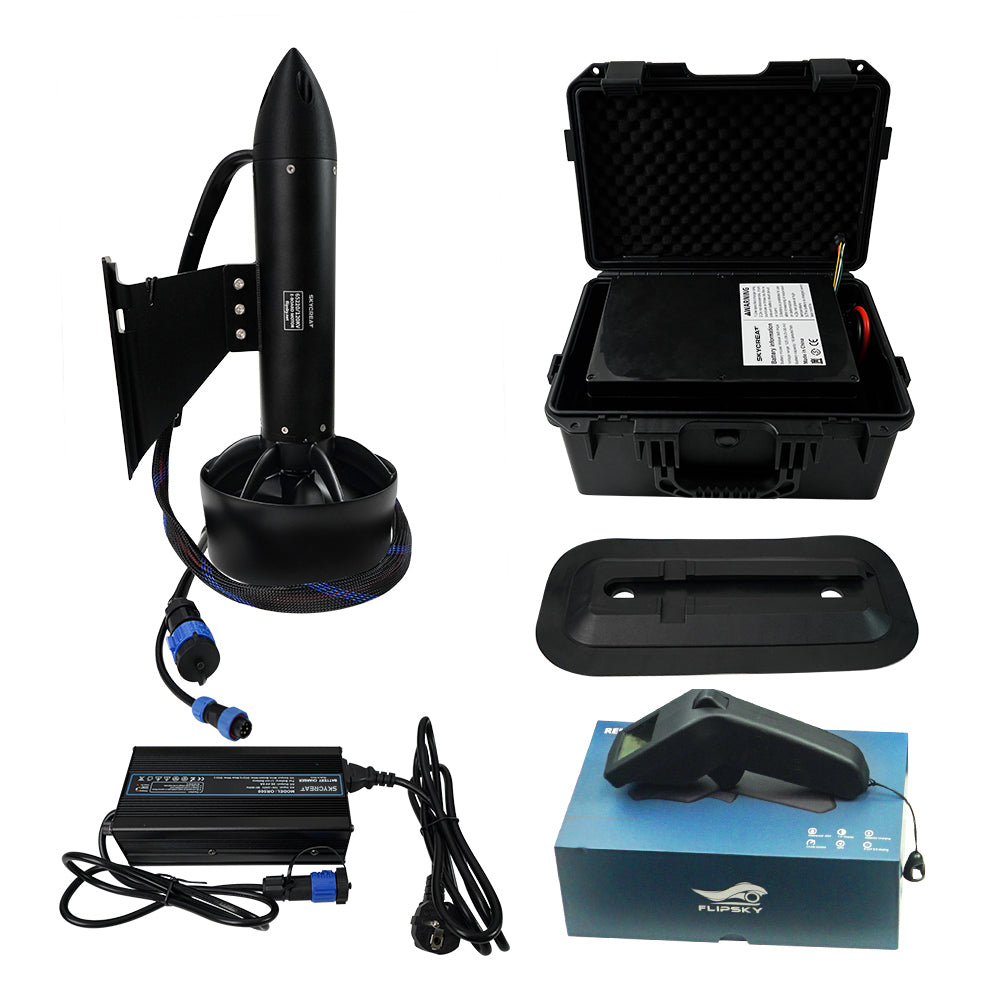

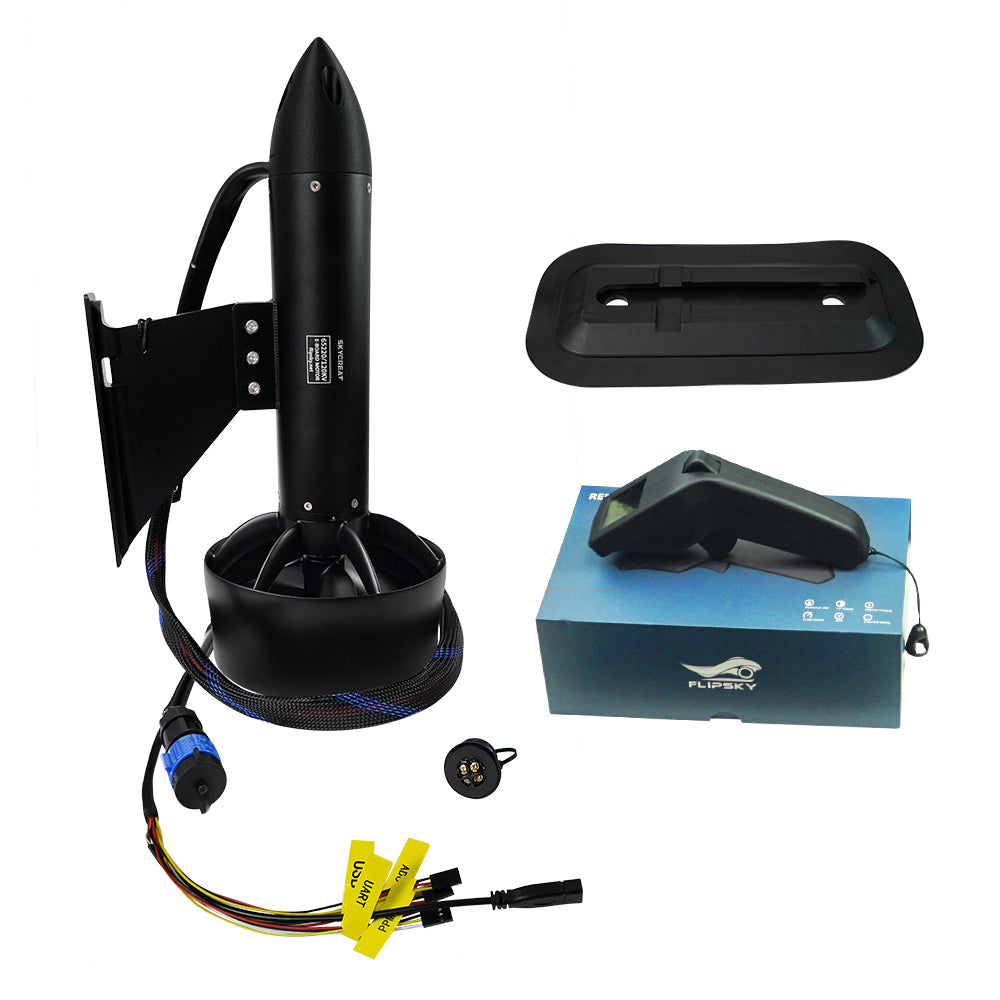

Skycreat Brushless Motor 65220 Integrated fish-fin Thruster, electric boat thruster for ROV RC Boat /Jet boards /Outboard motor / Drive boat jet

SKU:FT-MF-65220T12

65220 Motor Spec:

· Model: Φ65 x 220 mm

· Voltage Range: 6-20S

· Maximum Power: 6000 W

· Rated Power: 3000 W

· Rated Current: 60 A @50V

· Maximum Current: 100A @30V

· Insulation Current: AC 500V / 1mA / 3s

· Resistance: 58 mΩ

· Inductance: 170 μH

· Three-phase Wire: 3 x 10 AWG (5.5 mm)

· Shaft : Φ12 -0.005 / -0.01

· Rated Torque: 6.3 N·m

· Number of slots & poles : 18 N / 6p

· Maximum Torque: 9 N·m

· Waterproof Level: IP68

· Weight: 3.23 kg

Battery box parameters

· Battery outer box size: 371*269*186mm

· Waterproof grade: IP67

· Battery box material: ABS

· Voltage:50.4V

· Cell specifications: Molicel P42A 27100

· Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.

· Environment: (-20 degrees Celsius + 50 degrees Celsius)

· Charger: 50.4V 5.5A

· Charging time: about 2.6 hours

ESC integrated Spec

· Firmware: 5.2 VESC TOOL3.0

· ESC type: Flipsky 75100

· ESC Drive Mode: Default PPM & UART(customizable to ADC)

· Communication Port: Default USB (customizable to CAN)

Remote control

· remote control: VX5/VX3（Transparent）

· Control mode :UART

· Remote control distance: no interference, 25 meters in a straight line

· Waterproof grade:IP67

· There are 3 adjustable gears (L/M/H)

· Functions: Cruise control, GPS speed display, infinite throttle
