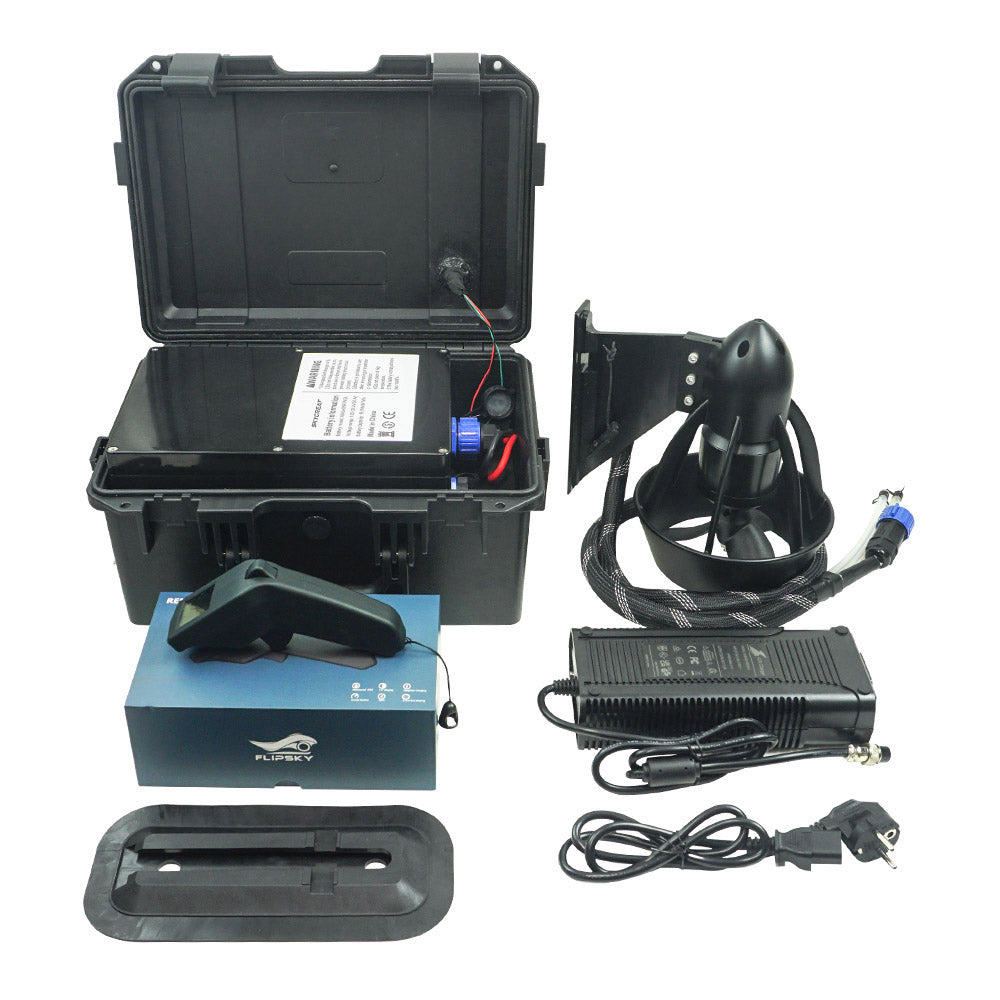

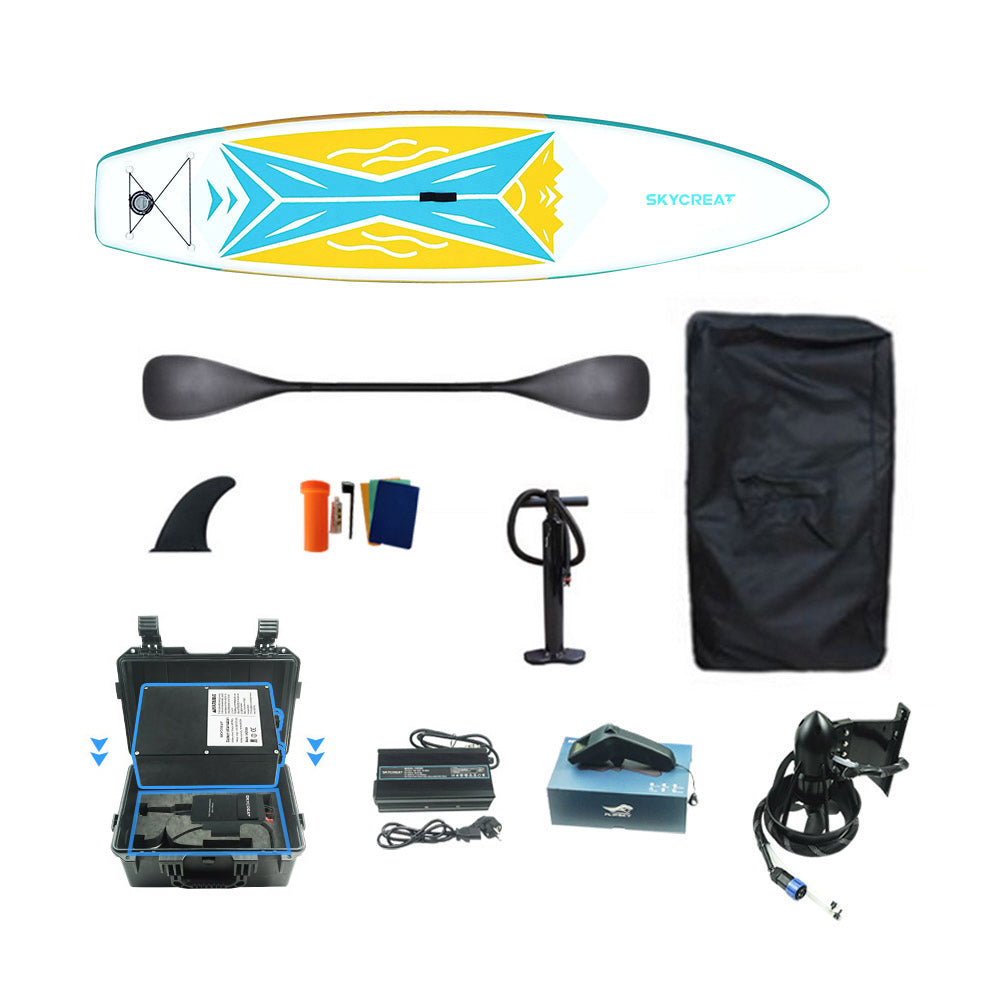

Skycreat B10 Electric Inflatable SUP with a 7070 Electric Fin Propulsion System, safe load capacity of 200KG

SKU:Fl-BD-7070B10

7070 motor parameters

• Motor :7070/110KV
• Waterproof grade :IP58
• Guard material :ABS
• Fixing bracket:6061 aluminum alloy
• Propeller: 1 pcs propeller 3.8 inches
• Voltage range 6-20s (25.4-84v)
• Rated power 2200w
• Maximum power: 4300W
• Weight:1.08KG

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

ESC

• ESC model:75100 pro v2.0
• Maximum discharge current: Maximum continuous 100A
• Voltage Range: 6-20s (25.2*84v)
• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)
• Support control protocols ppm, uart, adc, pas

Remote control

• remote control:VX3
• Control mode :UART
• Remote control distance: no interference, 25 meters in a straight line
• Waterproof grade:IP67
• There are 3 adjustable gears (L/M/H)
• Functions: Cruise control, GPS speed display, infinite throttle
