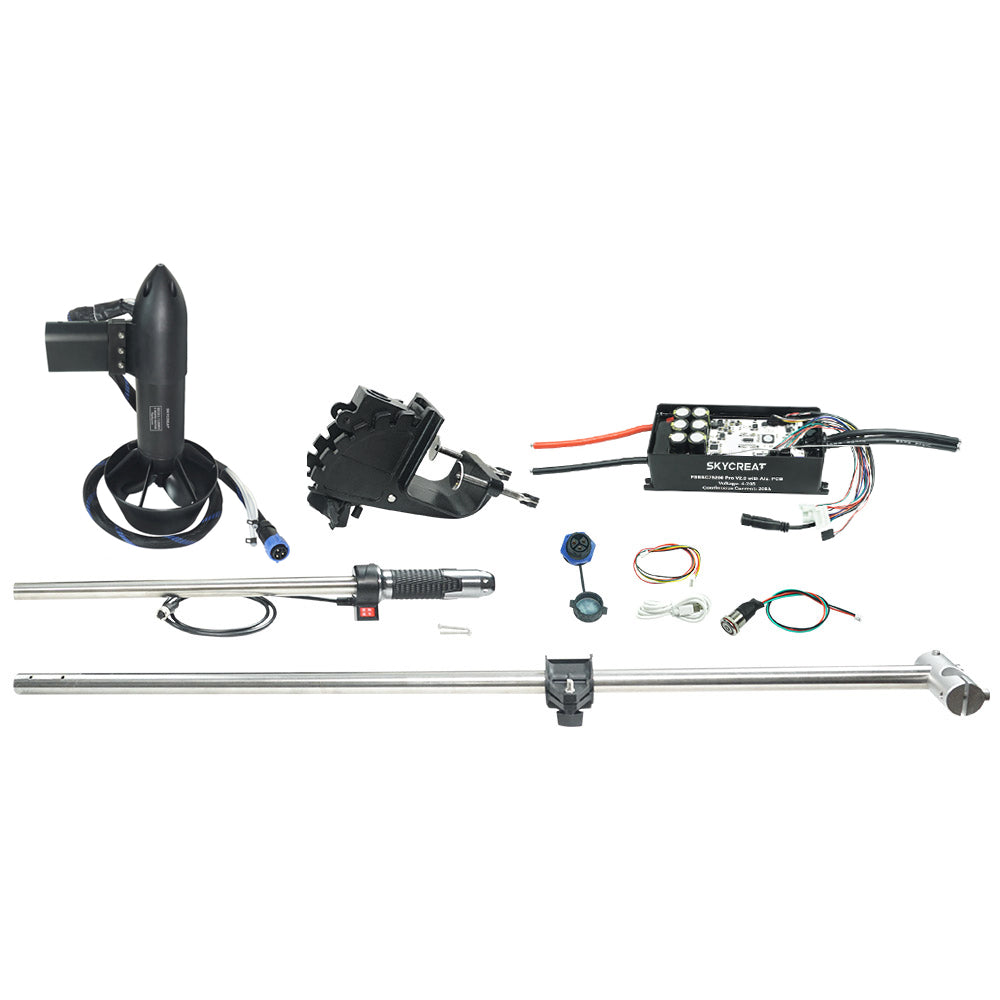

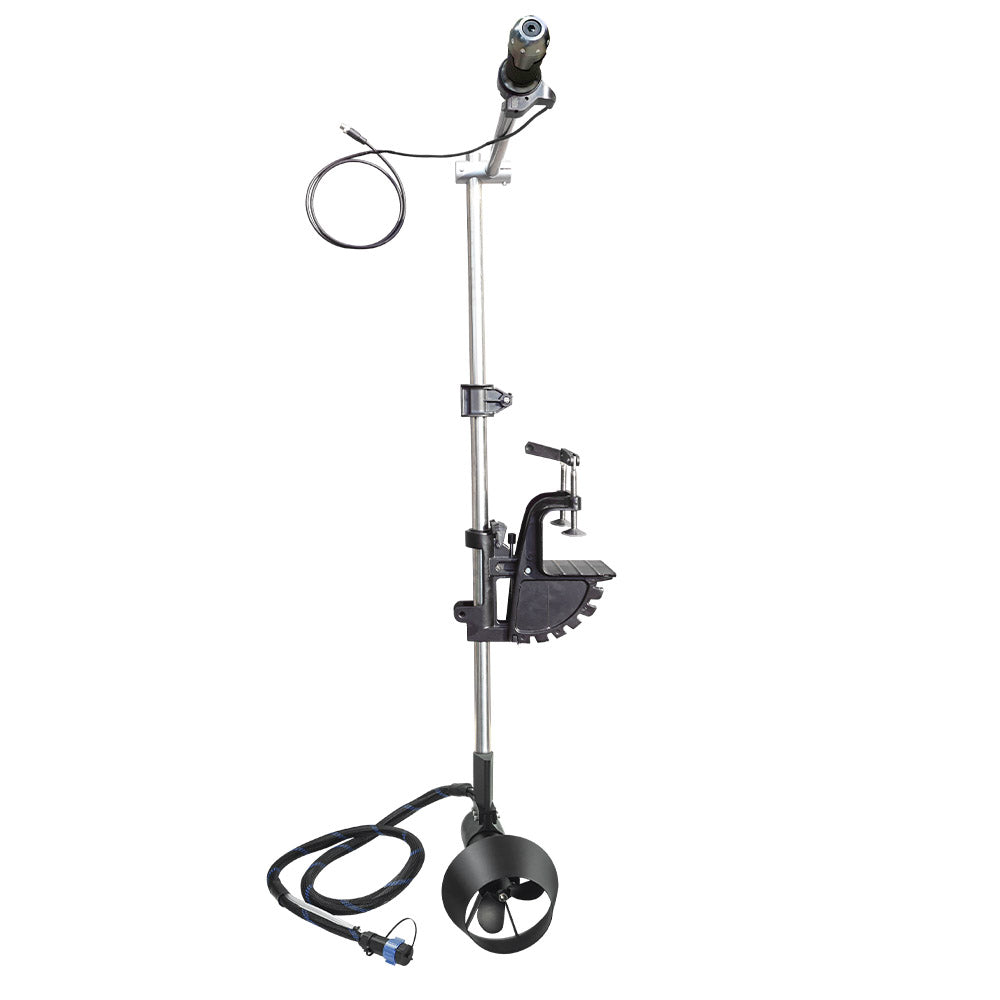

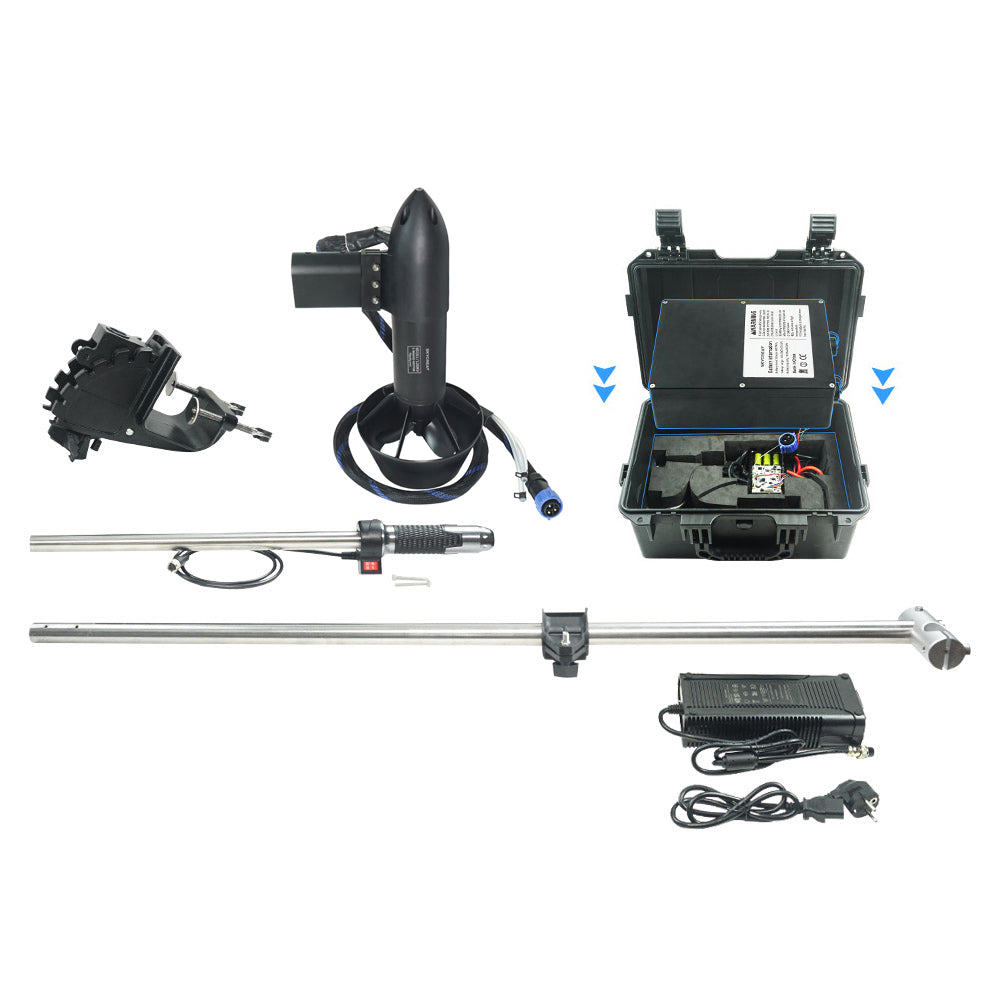

Skycreat 65161 6000W Electric Outboard Motor – High-Thrust Propeller for Inflatable Boats, Brushless Quiet Trolling Motor
Skycreat 65161 6000W Electric Outboard Motor – High-Thrust Propeller for Inflatable Boats, Brushless Quiet Trolling Motor
Regular price
$523.00 USD
Regular price
Sale price
$523.00 USD
Shipping calculated at checkout.
SKU:Fl-0E-65161062
Quantity
Couldn't load pickup availability

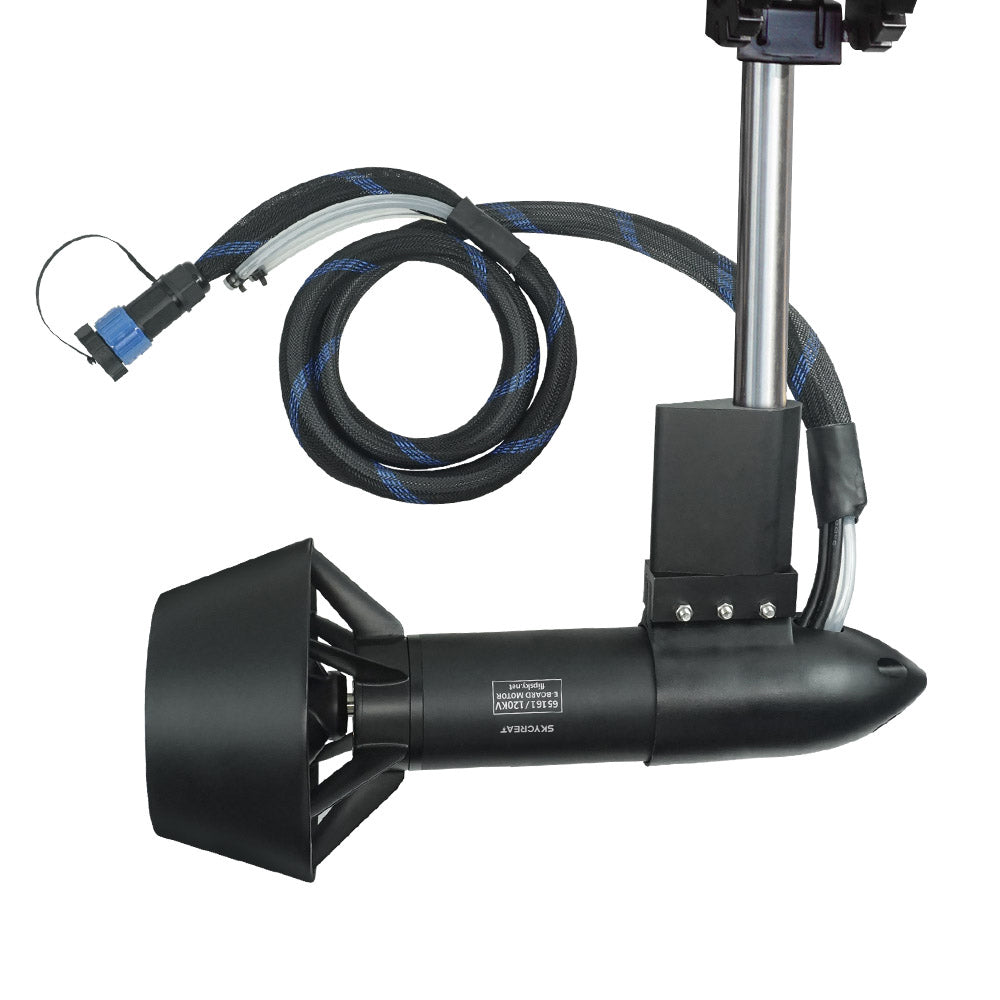

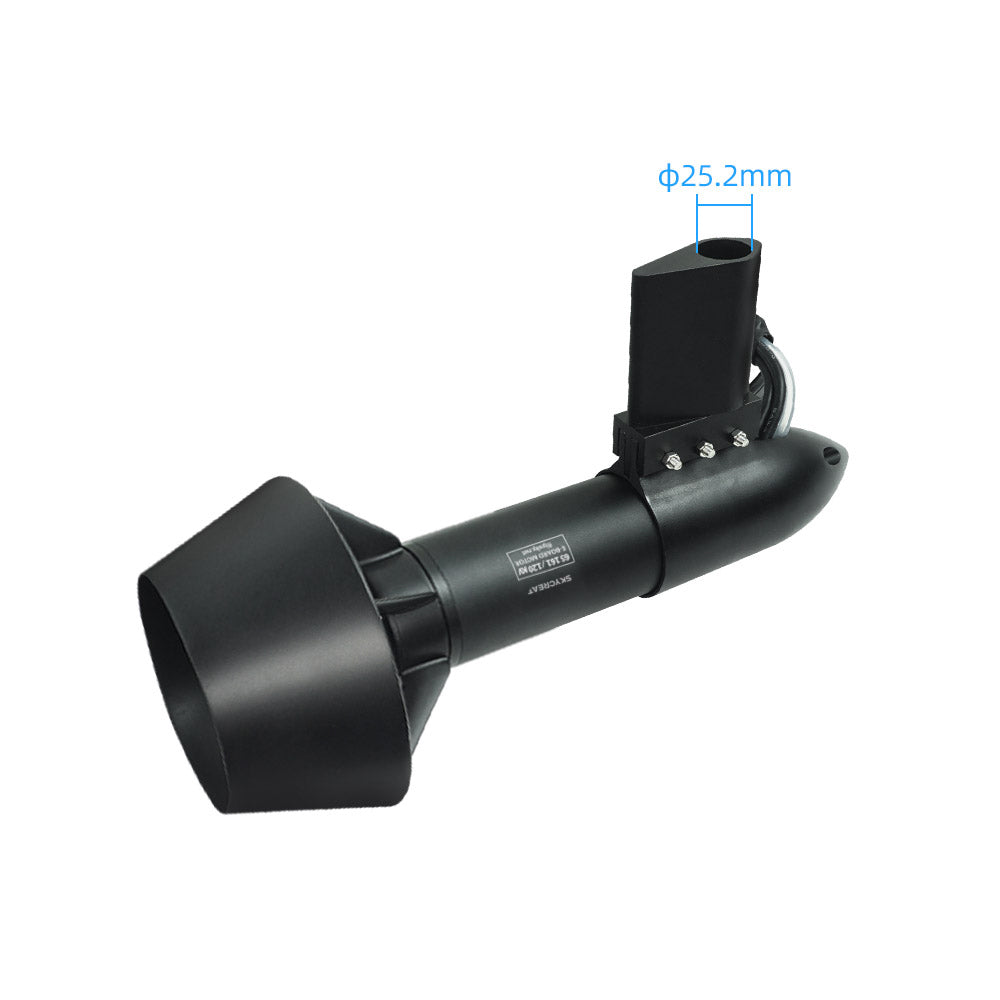

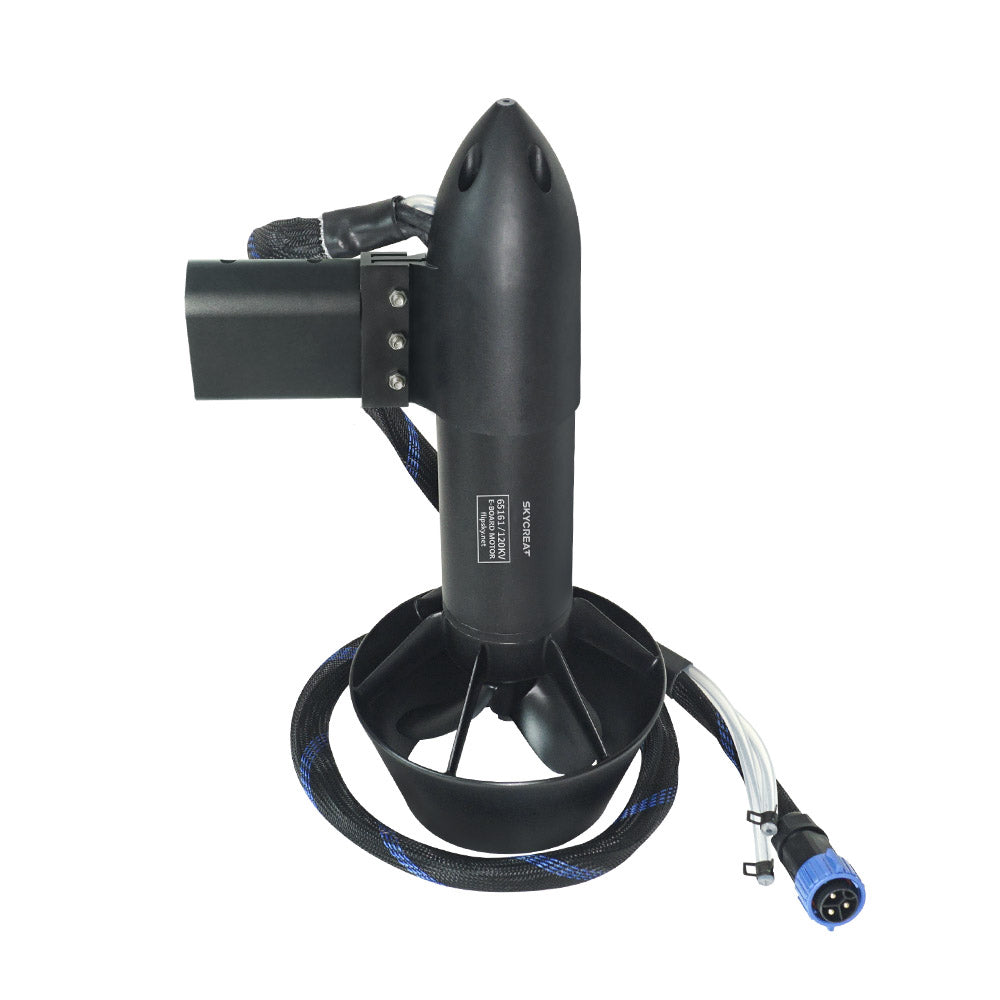

Motor 65161 Spec:
- Motor model: 152mm Propeller
- Voltage range: 6-20S (25.2-84V)
- Max Spin Speed(RPM): 16380
- KV(RPM/V): 120KV/100KV
- Max Power:6000W,rated power 3000W
- Peak current: 200A
- The number of pole: 6(please write 3 pairs when do setup)
- Max torque at 60%:9NM
- Demension: D65*L161mm
- Max working temperature: 120︒C
- Insulation voltage & leak current: AC500V/10MA/3S
- Lead wires extension: 8AWGx1300mm
- Waterproof level:IP68
- Weight:3kg
- Plug: 8.0mm
- Motor wire: 8AWG
Battery box parameters
- Battery outer box size: 371*269*186mm
- Waterproof grade: IP67
- Battery box material: ABS
- Voltage:50.4V
- Cell specifications: Molicel P42A 27100
- Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
- Environment: (-20 degrees Celsius + 50 degrees Celsius)
- Charger: 50.4V 5.5A
- Charging time: about 2.6 hours
ESC
- ESC model:75200 PRO V2.0 With Water Cooling Enclosure
- Voltage: 14-84V (safe for 4-20S)
- Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
- BEC: 5V@1A
- Support Modes: DC, BLDC, FOC (sinusoidal)
- ERPM: 150000
- Communication Ports: USB, CAN, UART
- Input Source Support: PPM, ADC, UART
- Supported Sensorless: Yes
- Regenerative capacity: Yes
- Programmable via VESC_TOOL: Yes
- 75200 Size:130x67.7x40.1mm(Including alu. case)
- Motor/power wire size: 8 AWG
| Motor 65161 Specifications | |
|---|---|
| Motor Model | 65161 (152mm Propeller) |
| Voltage Range | 6–20S (25.2V–84V) |
| Max Spin Speed | 16380 RPM |
| KV (RPM/V) | 120KV / 100KV |
| Max Power | 6000W (Rated: 3000W) |
| Peak Current | 200A |
| Number of Poles | 6 (set as 3 pairs in configuration) |
| Max Torque at 60% | 9 N·m |
| Dimensions | D65 × L161mm |
| Max Working Temperature | 120°C |
| Insulation Voltage & Leakage | AC500V / 10mA / 3s |
| Lead Wires Extension | 8AWG × 1300mm |
| Waterproof Rating | IP68 |
| Weight | 3 kg |
| Motor Accessories | |
| Plug | 8.0mm |
| Motor Wire | 8AWG |
| Battery Box Parameters | |
| Battery Box Dimensions | 371×269×186mm |
| Waterproof Rating | IP67 |
| Battery Box Material | ABS |
| Voltage | 50.4V |
| Cell Spec | Molicel P42A 21700 |
| Capacity | 12S 4P — 16.8Ah / 846.72Wh / 16800mAh |
| Operating Temperature | -20°C to +50°C |
| Charger | 50.4V 5.5A |
| Charge Time | ~2.6 hours |
| ESC — 75200 PRO V2.0 (Water Cooling Enclosure) | |
| ESC Model | 75200 PRO V2.0 with Water Cooling Enclosure |
| Voltage Range | 14V–84V (safe for 4–20S) |
| Continuous Current | 50V/200A; 75V/150A (varies by mounting & cooling); Burst: 300A |
| BEC | 5V @ 1A |
| Supported Modes | DC, BLDC, FOC (sinusoidal) |
| ERPM | 150000 |
| Communication Ports | USB, CAN, UART |
| Input Source Support | PPM, ADC, UART |
| Sensorless Support | Yes |
| Regenerative Braking | Yes |
| Programmable via VESC_TOOL | Yes |
| ESC Dimensions | 130×67.7×40.1mm (including aluminum case) |
| Motor / Power Wire Size | 8AWG |
