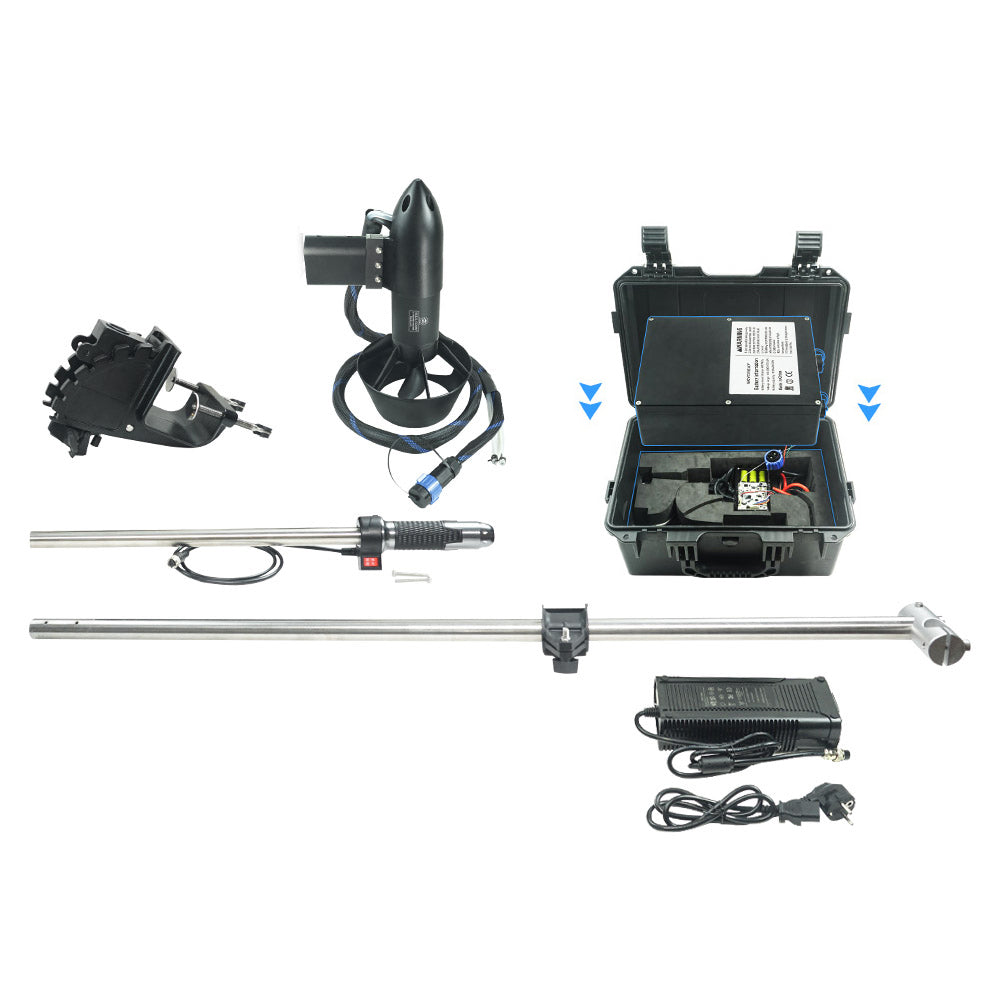

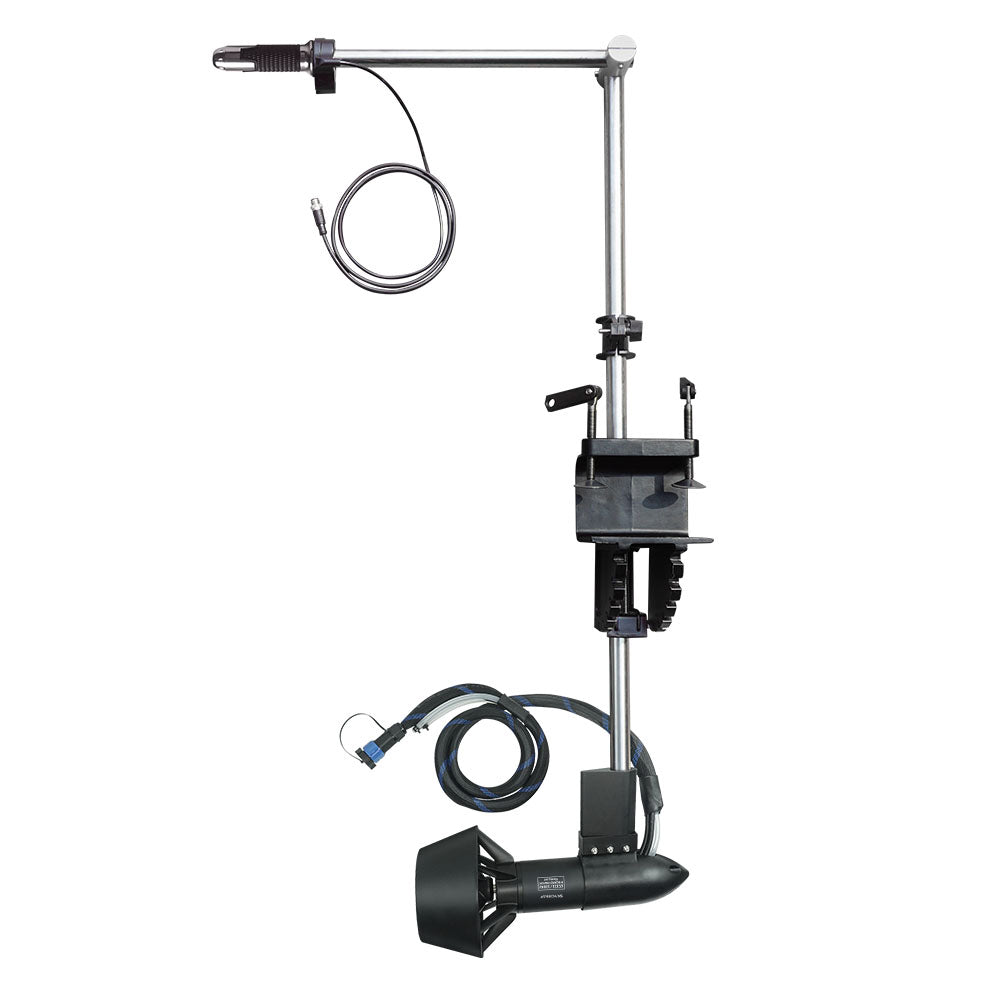

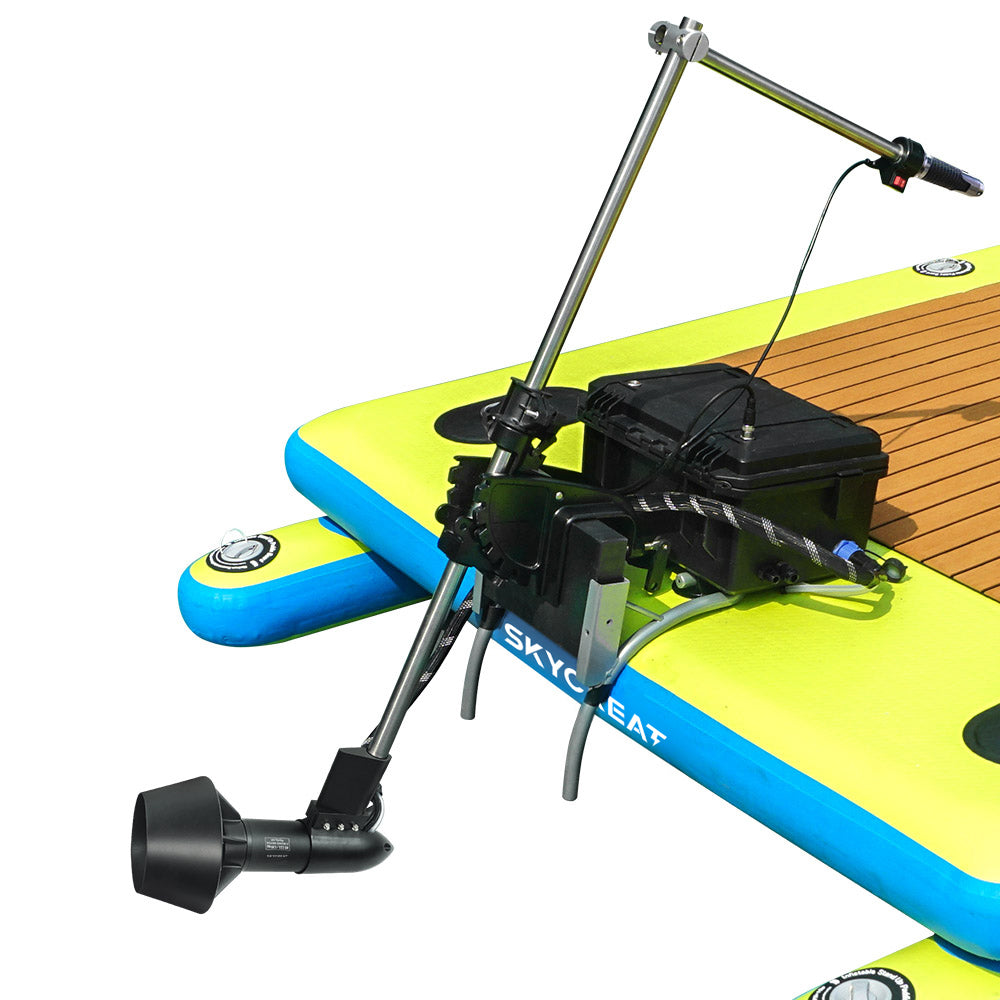

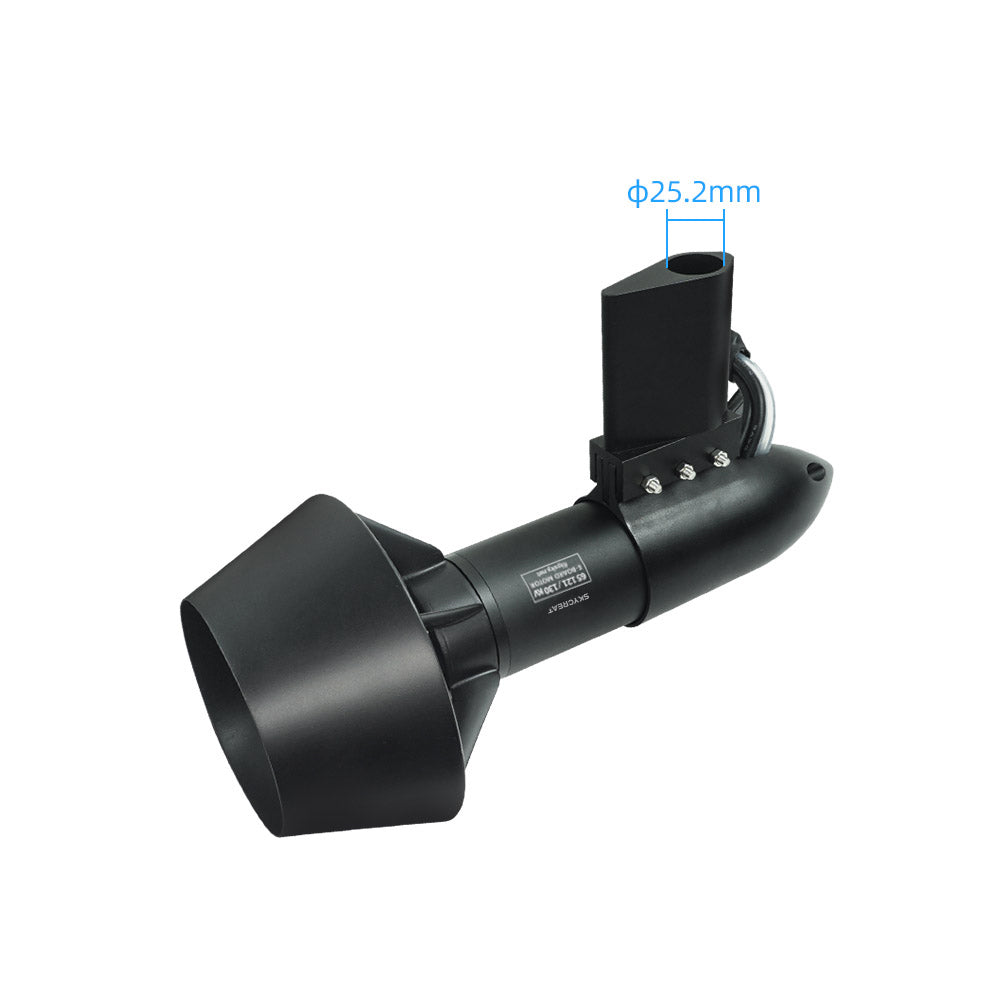

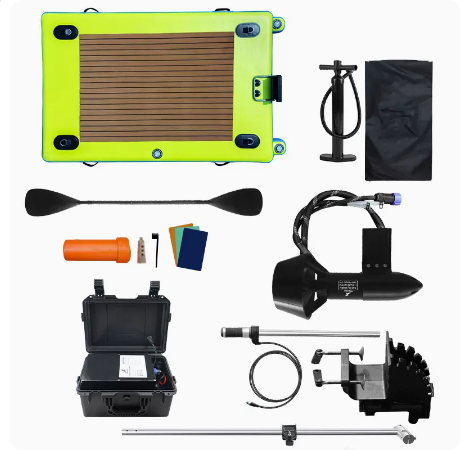

Skycreat 65121 Electric Outboard Motor 3700W – Durable Thrust for Tenders & Inflatable Boats

SKU:F1-0E-65121022

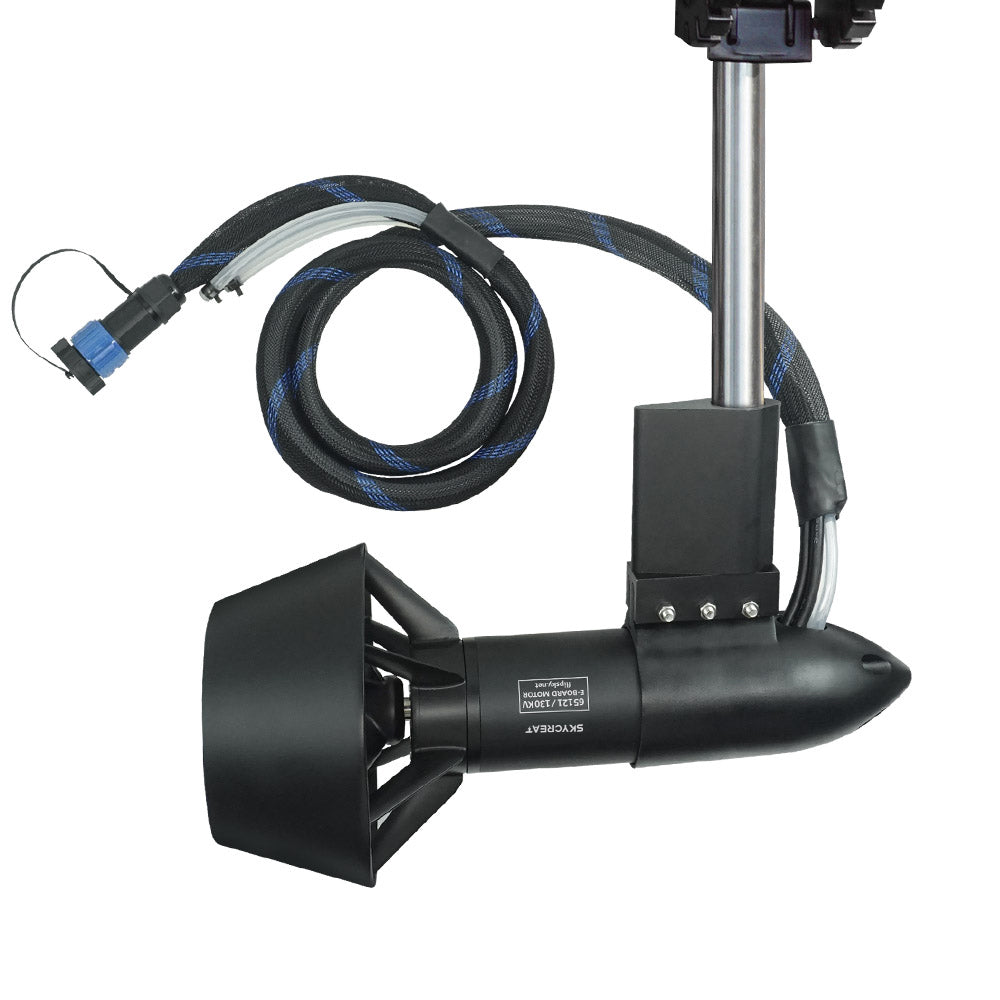

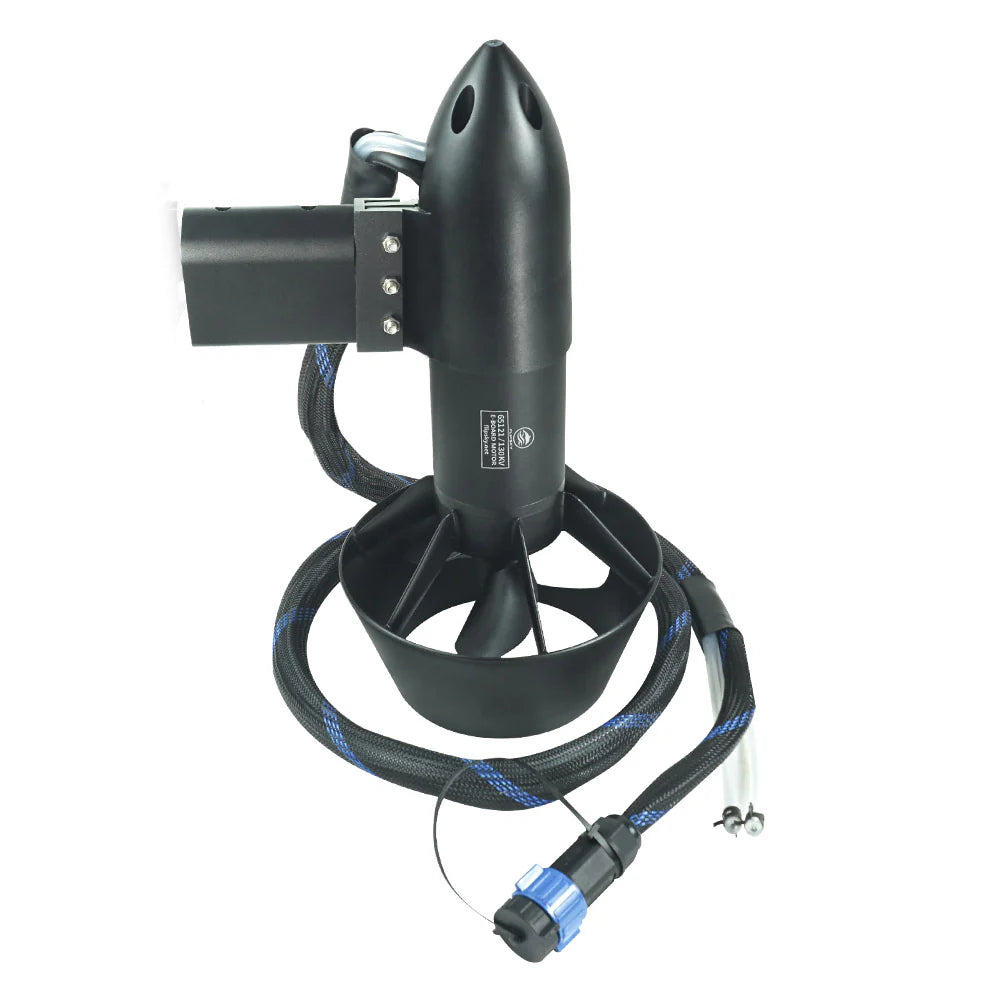

65121 Motor Spec:

• Voltage range: 6-20S (25.2-84V)
• Max power: 3700W; Continuous power: 2000W
• Peak current: 100A;
• Motor KV: 130KV
• Size: OD65*L121mm
• Shaft diameter: 12mm*m8
• Max output torque:5.5N*M
• Waterproof rate: IP68
• Connectors:8mm plug
• Weight:1.62KG
• Structure:18N/6P
• Lead wires extension: 8AWGx1400mm

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

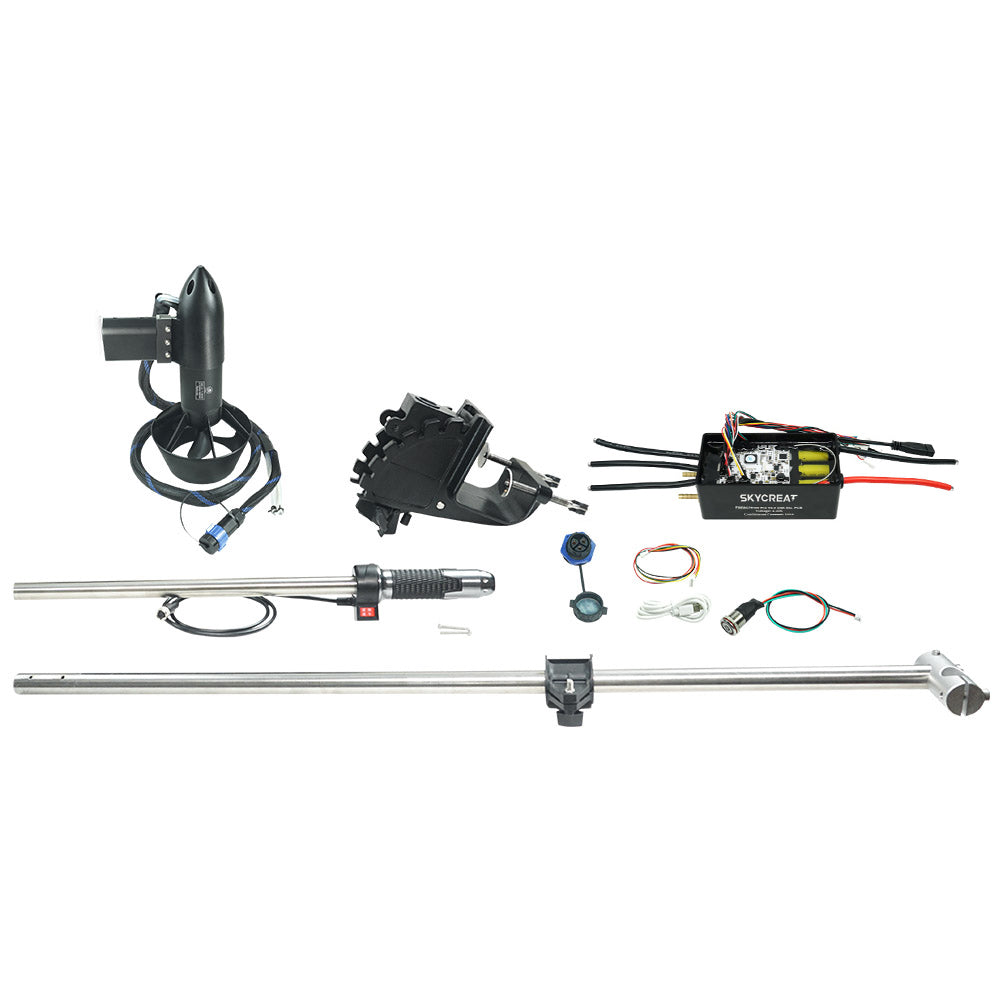

ESC

• ESC model:75100 pro v2.0
• Maximum discharge current: Maximum continuous 100A
• Voltage Range: 6-20s (25.2*84v)
• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)
• Support control protocols ppm, uart, adc, pas
