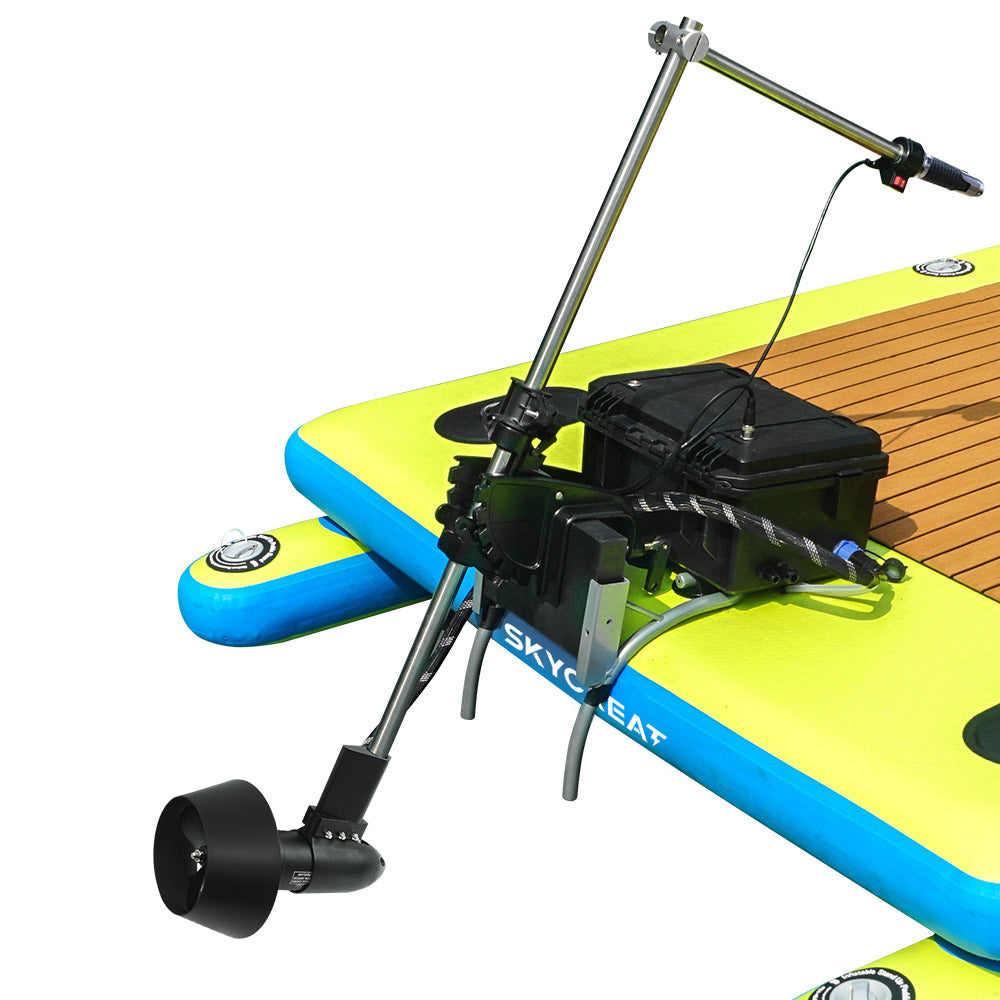

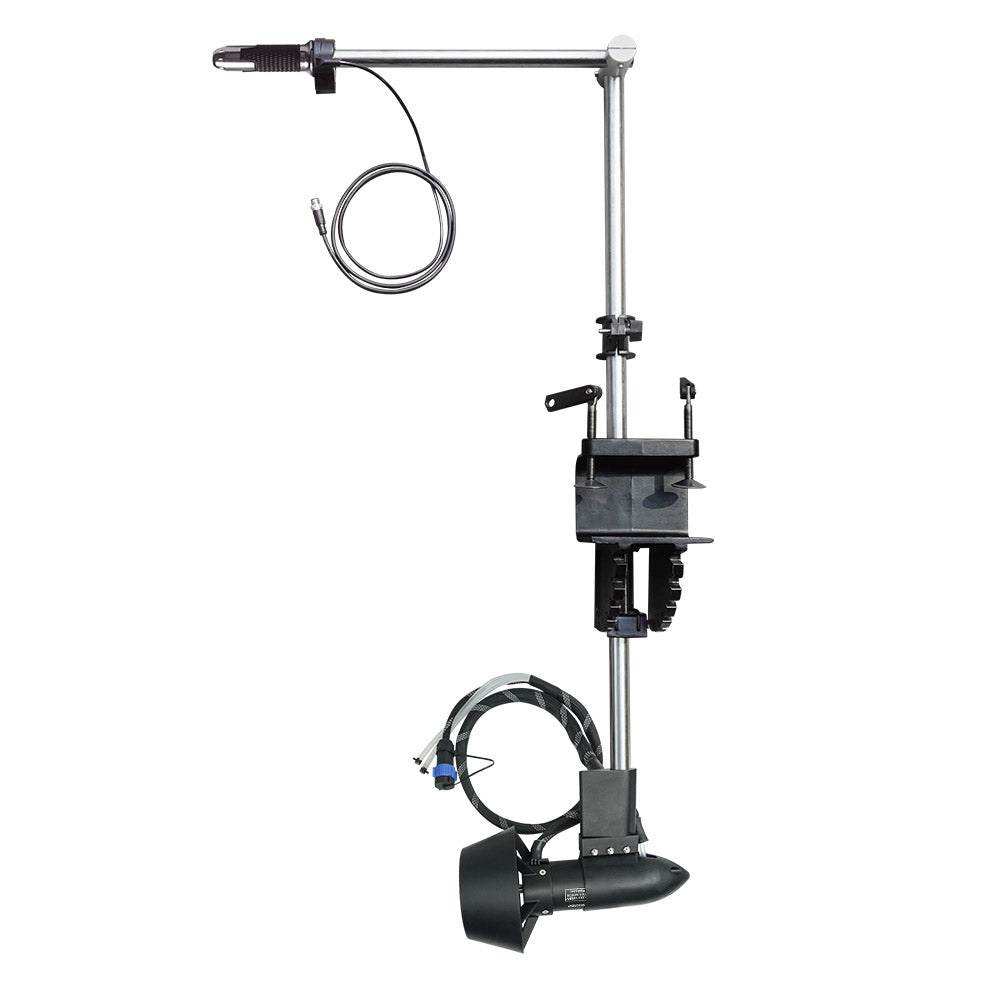

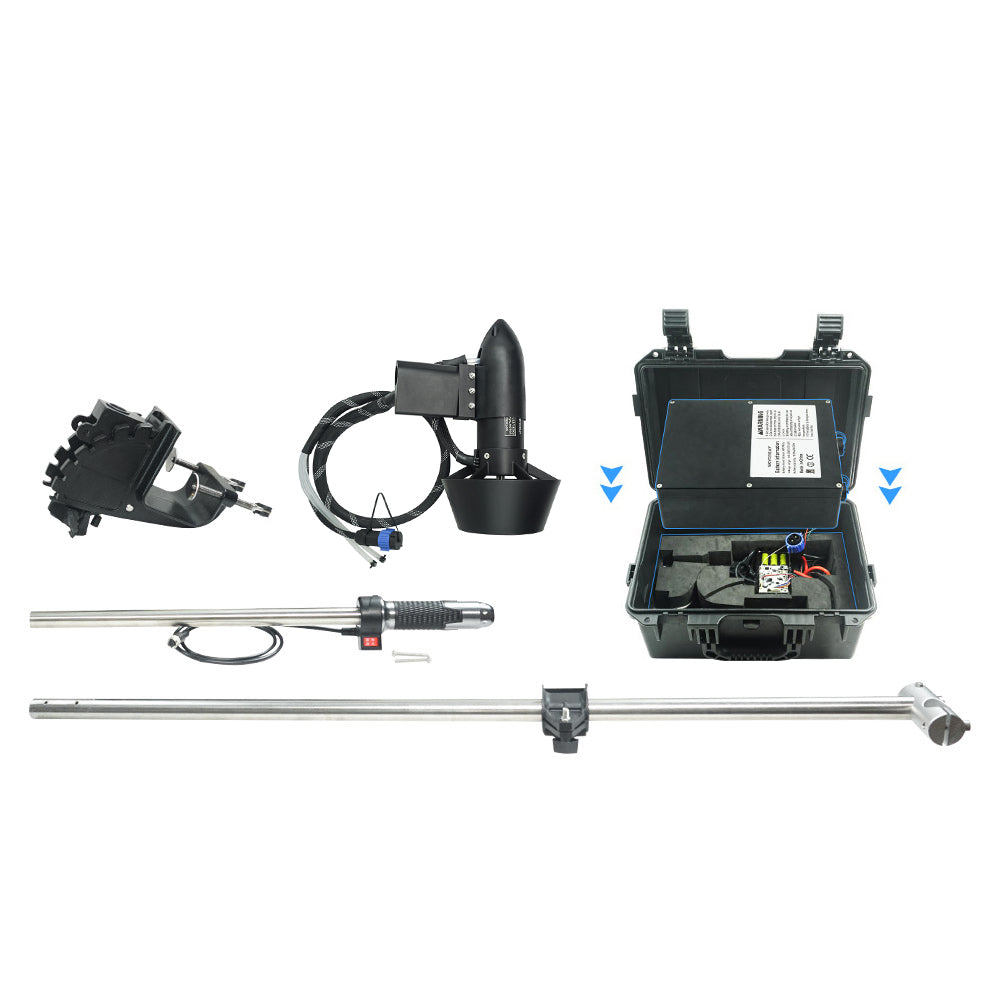

Skycreat 65111 Electric Outboard Motor 3000W – Reliable Thrust for Tenders & Inflatable Boats
Skycreat 65111 Electric Outboard Motor 3000W – Reliable Thrust for Tenders & Inflatable Boats
Regular price
$405.00 USD
Regular price
Sale price
$405.00 USD
Shipping calculated at checkout.
SKU:F1-0E-65111012
Quantity
Couldn't load pickup availability

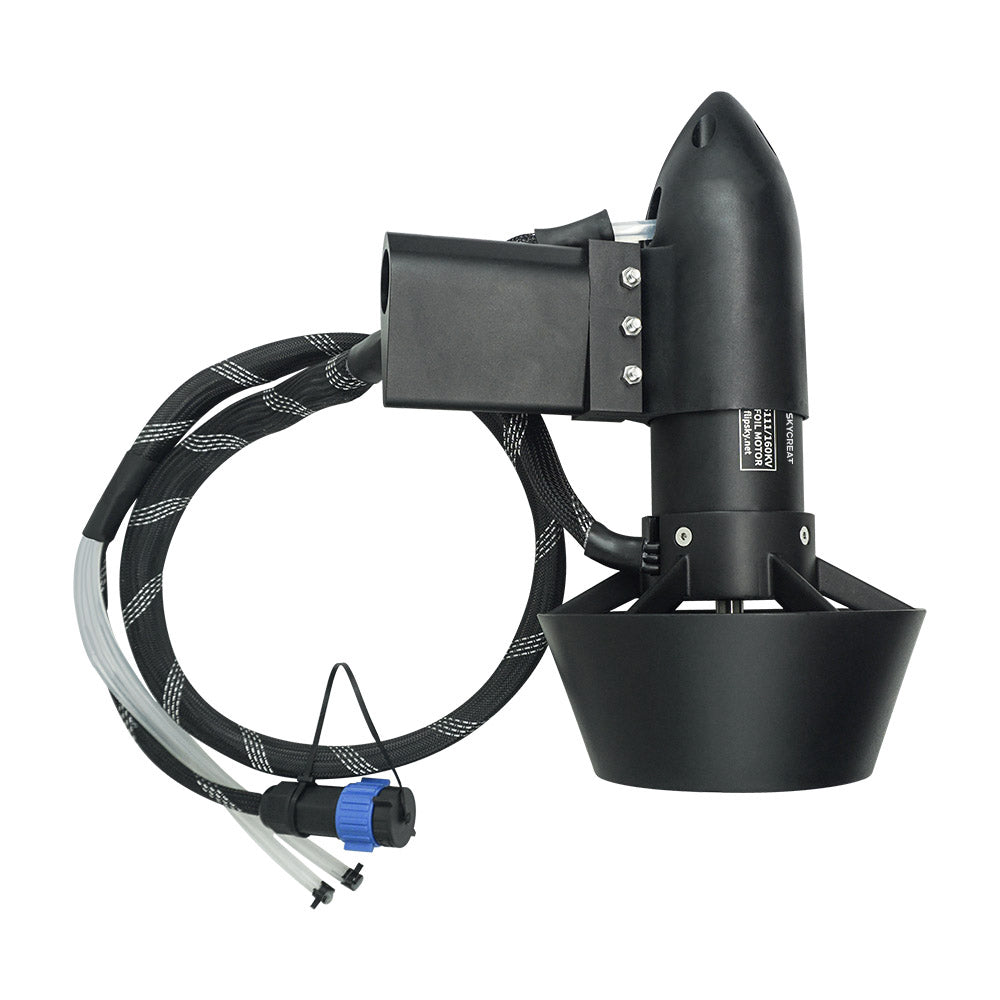

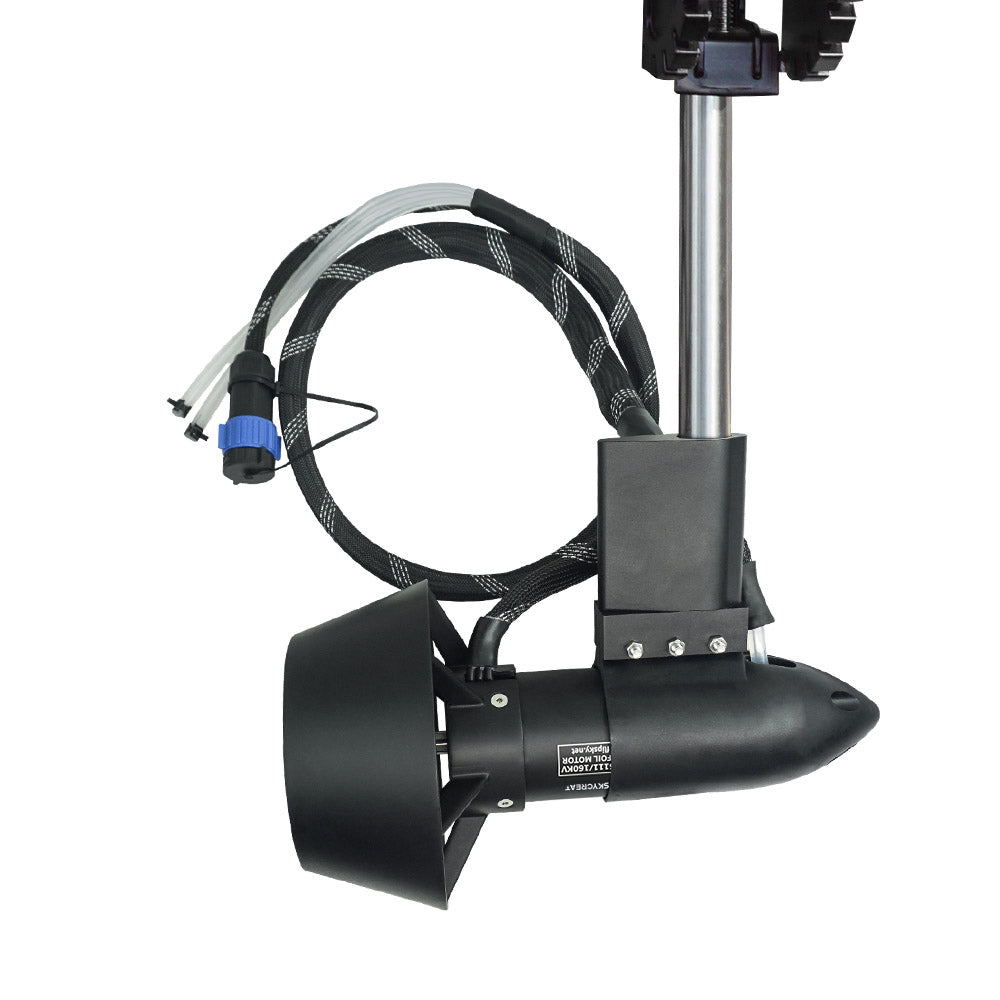

65111 Motor Spec:
- Voltage range: 8-12S (33.6-50.4V)
- Max power: 3000W; Continuous power: 1500W
- Peak current: 70A; Continuous current: 30A
- Motor KV: 160KV
- Max spin speed(RPM): 8064
- Size: OD65*L111mm
- Shaft diameter: 10mm
- Motor pole: 6pcs; 3 pairs
- Motor stator slot: 12
- Waterproof rate: IP68
- Lead wires extension: 12AWGx1400mm
- Weight：1.38kg

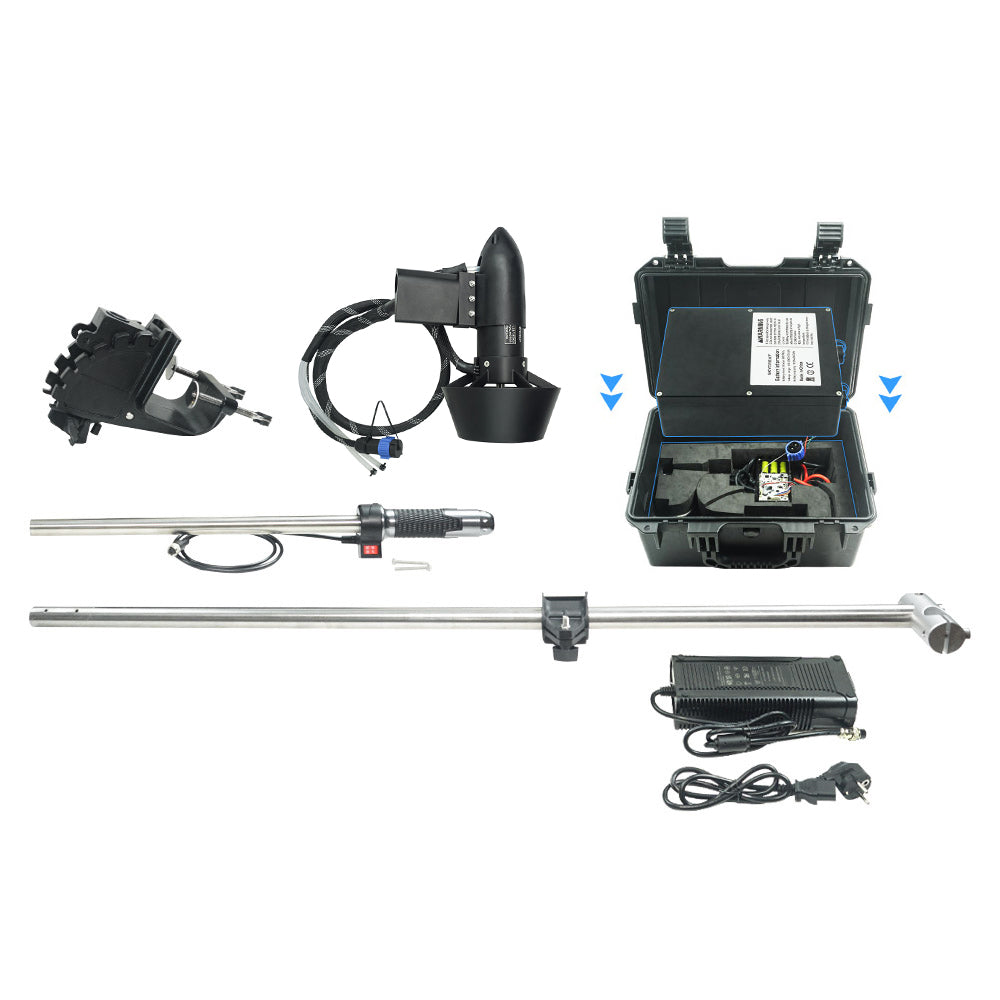

Battery box parameters
- Battery outer box size: 371*269*186mm
- Waterproof grade: IP67
- Battery box material: ABS
- Voltage:50.4V
- Cell specifications: Molicel P42A 27100
- Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
- Environment: (-20 degrees Celsius + 50 degrees Celsius)
- Charger: 50.4V 5.5A
- Charging time: about 2.6 hours

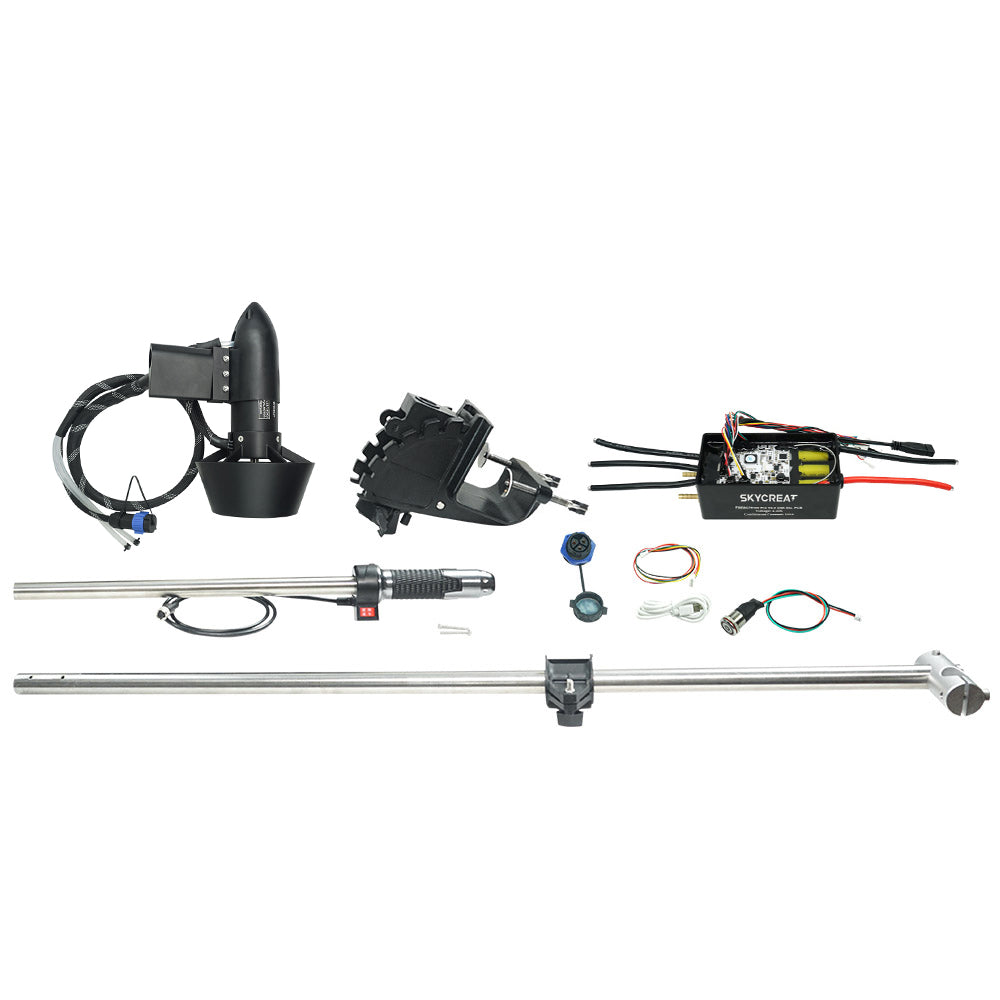

ESC
- ESC model:75100 pro v2.0
- Maximum discharge current: Maximum continuous 100A
- Voltage Range: 6-20s (25.2*84v)
- Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)
- Support control protocols ppm, uart, adc, pas
| 65111 Motor Specifications | |
|---|---|
| Voltage Range | 8–12S (33.6V–50.4V) |
| Max Power | 3000W |
| Continuous Power | 1500W |
| Peak Current | 70A |
| Continuous Current | 30A |
| Motor KV | 160KV |
| Max Spin Speed | 8064 RPM |
| Size | OD65 × L111mm |
| Shaft Diameter | 10mm |
| Motor Poles | 6 pcs (3 pairs) |
| Motor Stator Slots | 12 |
| Waterproof Rating | IP68 |
| Lead Wires Extension | 12AWG × 1400mm |
| Weight | 1.38 kg |
| Battery Box Parameters | |
| Battery Box Dimensions | 371×269×186mm |
| Waterproof Rating | IP67 |
| Battery Box Material | ABS |
| Voltage | 50.4V |
| Cell Spec | Molicel P42A 21700 |
| Capacity | 12S 4P — 16.8Ah / 846.72Wh / 16800mAh |
| Operating Temperature | -20°C to +50°C |
| Charger | 50.4V 5.5A |
| Charge Time | ~2.6 hours |
| ESC | |
| ESC Model | 75100 Pro v2.0 |
| Max Discharge Current | 100A continuous |
| Voltage Range | 6–20S (25.2V–84V) |
| Heat Dissipation | Water cooling (pipe OD: 8mm, ID: 3mm) |
| Supported Control Protocols | PPM, UART, ADC, PAS |
