Skycreat 3700 6600W Underwater Thruster – Waterproof Electric Boat Motor for Kayak/SUP/Surf/Jet Board & Outboard
Skycreat 3700 6600W Underwater Thruster – Waterproof Electric Boat Motor for Kayak/SUP/Surf/Jet Board & Outboard
Regular price
$590.00 USD
Regular price
Sale price
$590.00 USD
Shipping calculated at checkout.
SKU:SK-PB3700T32
Quantity
Couldn't load pickup availability
Moter Spec
- Voltage Range: 6-20S (24V-84V)
- Rated Power: 3700W ; Max Power: 6600W
- Waterproof level: IP68
Battery box parameters
- Battery Casing Dimensions: 240*158*135mm (including handle height)
- Waterproof Rating: IP67
- Battery Casing Material: Aluminum Alloy
- Voltage: 50.4V
- Cell Specifications: Molicel P42A 21700
- Battery Capacity: 12S 4P 16.8AH/846.72WH/16800mAh
- Charger: 50.4V 6A
ESC
- ESC Model: FT85CS_WP (Waterproof ESC)
- Voltage: 24V-84V (safe for 6-20S)
- Continuous Current: 75A
- Peak Current: 100A
- ESC Drive Method: UART
- Programmable Tool: Flipsky ESC TOOL
- Power Cord Length: 1.2 m
- Signal Cord Length: 1.3 m
Remote control
- Remote Control: VX3
- Control Mode: UART
- Remote Distance: 25 meters straight line, interference-free
- Waterproof Rating: IP68
- Adjustable Speed Settings: 3 levels (L/M/H), H level is the highest
- Functions: Cruise control, GPS, Speed display, Battery level display
Thrust test
| Motor & ESC | |
|---|---|
| Motor Model | 3700 120KV Outer Rotor Waterproof Motor (Threaded Shaft) |
| Waterproof Rating | IP68 |
| Motor Mount Material | Aluminum Alloy |

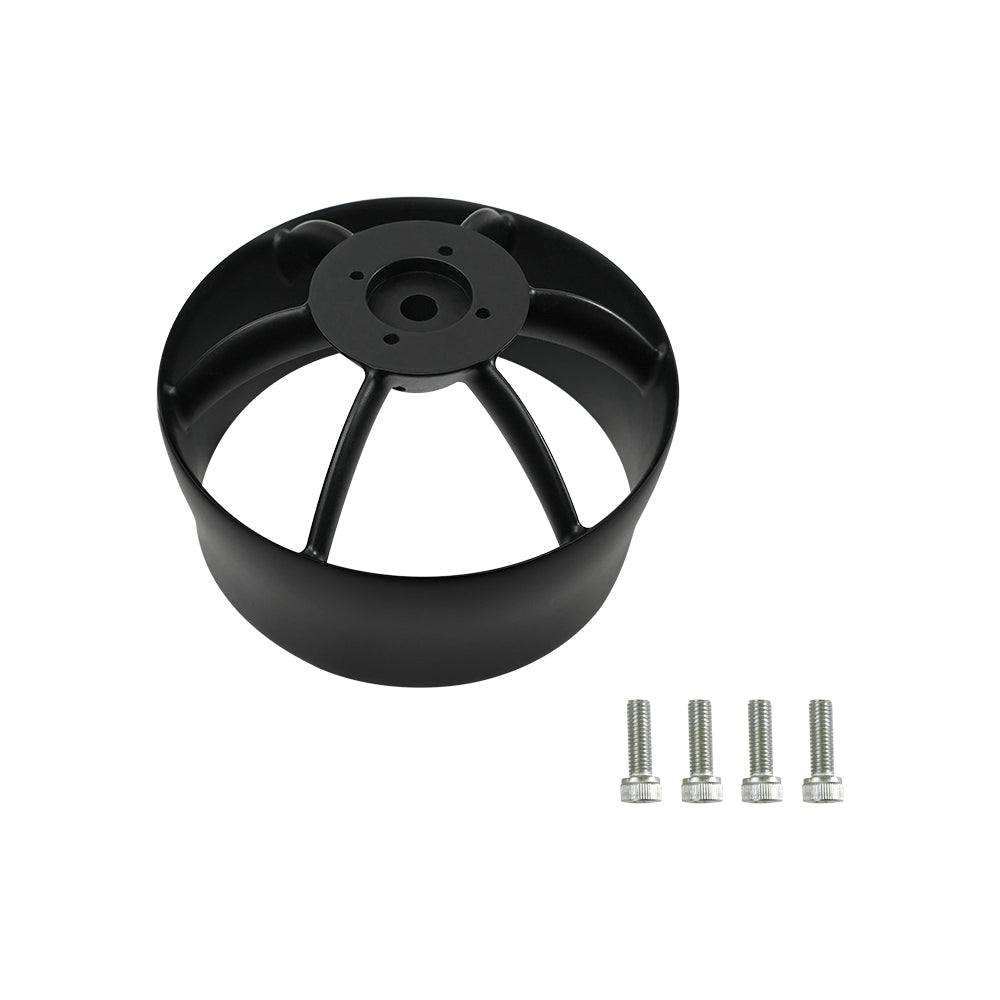

| Propeller Guard Material | ABS |
| Propeller | 3-Blade (152mm) |
| Rated Power | 3700W |
| Max Power | 6600W |
| ESC | FT85CS_WP (Waterproof) |
| Voltage Range | 6–20S (24V–84V) |
| Rated Current | 150A |
| ESC Drive Mode | UART |
| Power Cable Length | 1.2m |
| Signal Cable Length | 1.3m |
| Power (W) | Static Thrust (kg) |
| 500W | 12 kg |
| 1000W | 22 kg |
| 1500W | 27 kg |
| 2000W | 33 kg |
| 2500W | 36 kg |
| 3000W | 40 kg |
| 3300W | 42 kg |
| Battery Box | |
| Dimensions | 240×158×135mm |
| Waterproof Rating | IP67 |
| Voltage | 50.4V |
| Cell Spec | Molicel P42A 21700 |
| Capacity | 12S 4P — 16.8Ah / 846.72Wh / 16800mAh |
| Charger | 50.4V 6A |
| Charge Time | ~2.6 hours |
| Runtime | 90–120 min (recommended cruise power: 500W) |
| Remote Controller | |
| Model | VX3 (with receiver & wireless charging dock) |
| Control Mode | UART |
| Range | 25m (interference-free, line of sight) |
| Waterproof Rating | IP67 |
| Speed Modes | 3 modes: Low / Medium / High |
| Features | Cruise control, GPS, speed display, battery level display |
| Packaging | |
| Box Dimensions | 46cm × 34cm × 40cm |
| Gross Weight | 11 kg |
