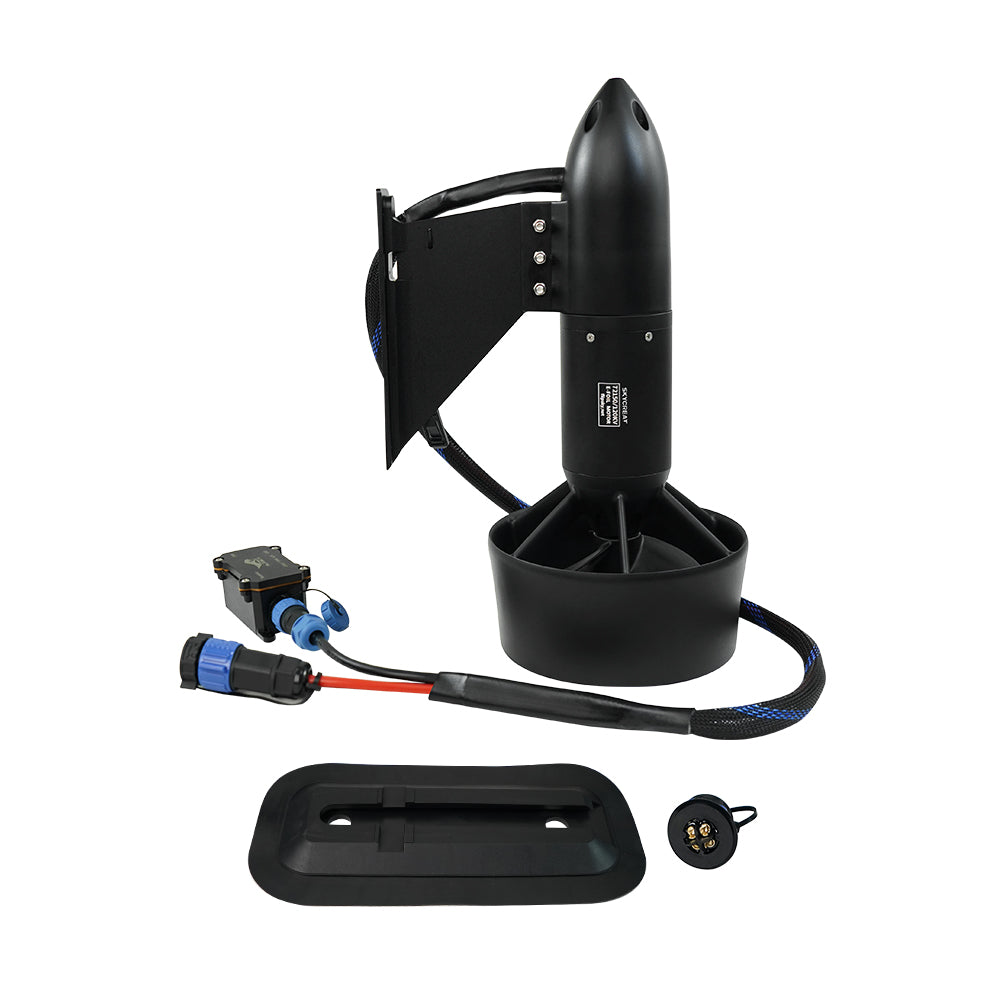

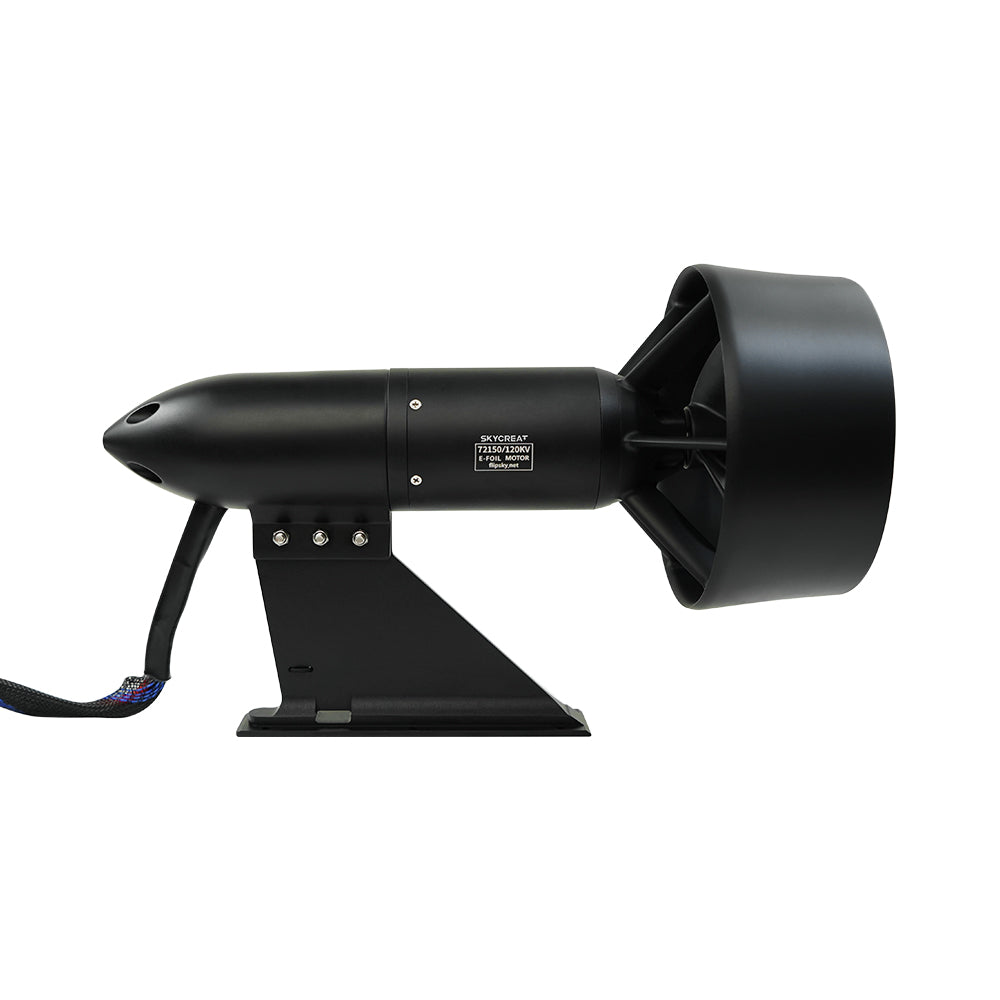

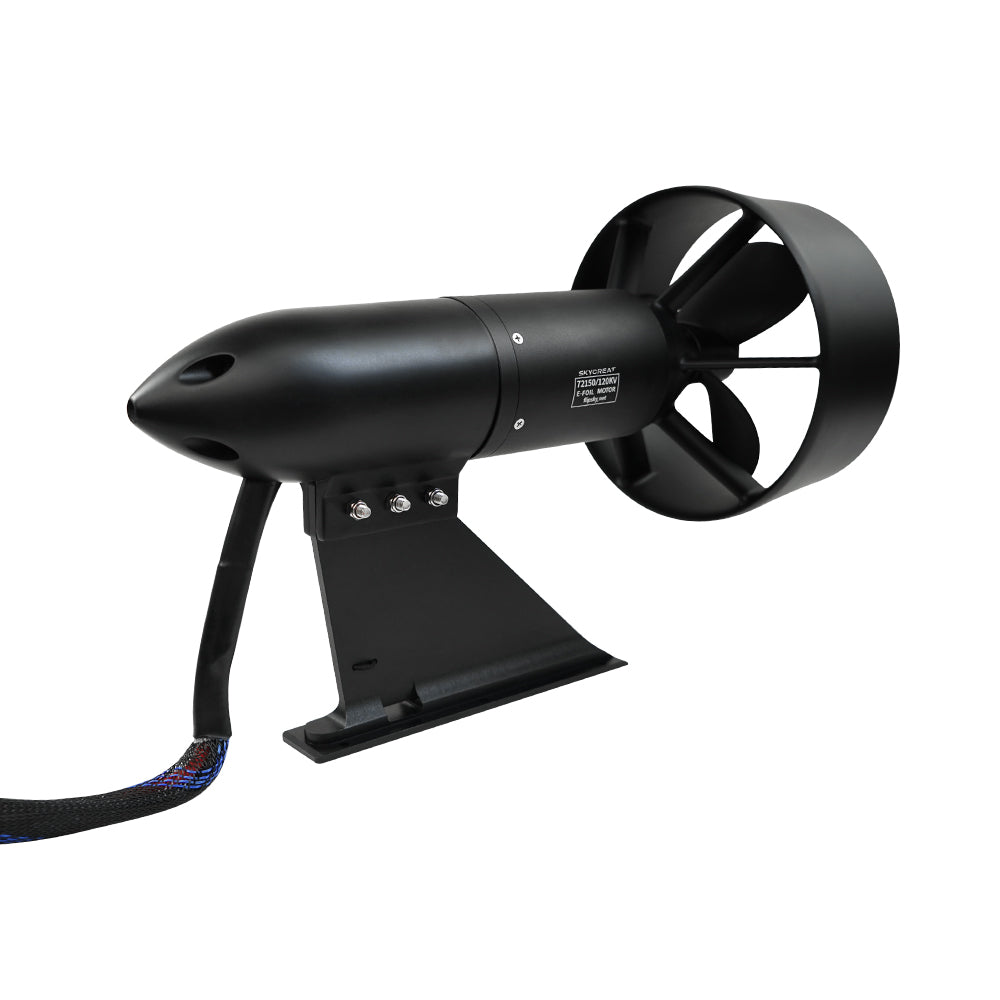

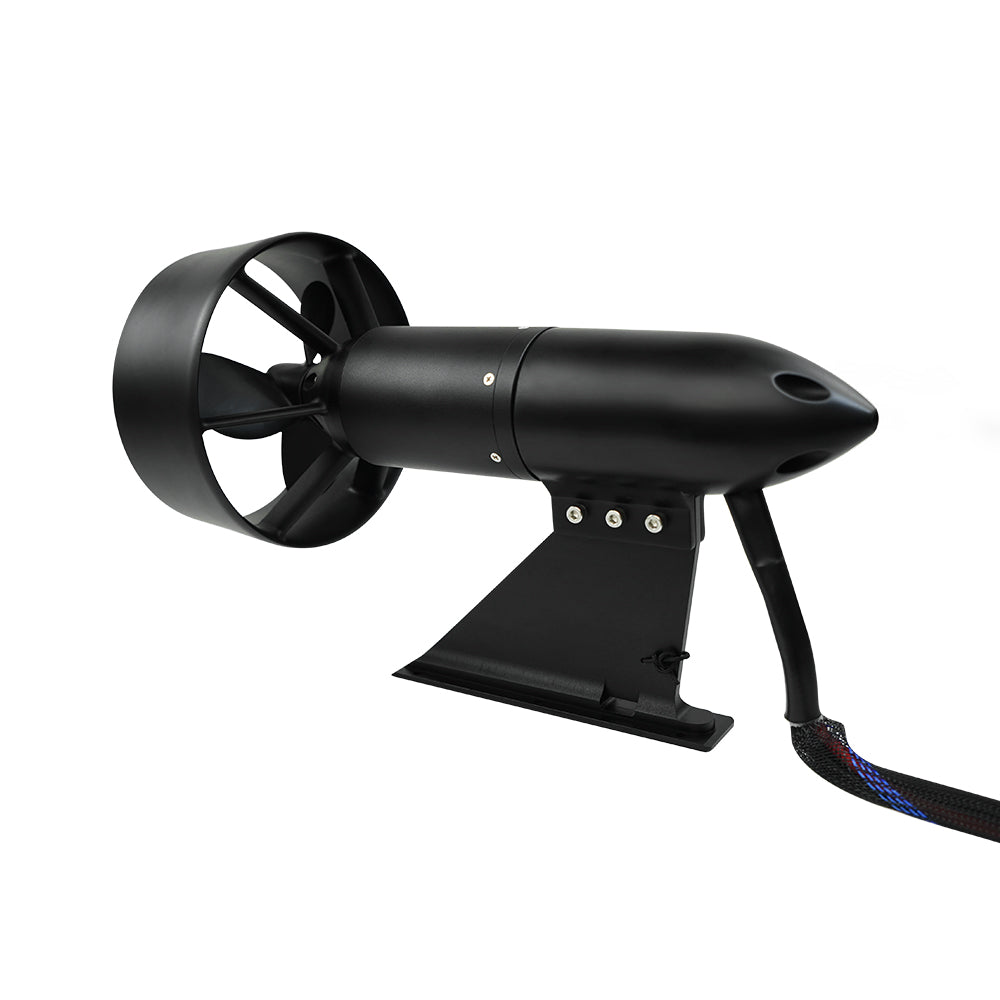

Skycreat 2200 Series 3000W Brushless Underwater Thruster – IP68 Waterproof for ROV, Jet Board, RC Boat & Outboard

Skycreat 2200 Series 3000W Brushless Underwater Thruster – IP68 Waterproof for ROV, Jet Board, RC Boat & Outboard

Regular price $449.00 USD
Regular price Sale price $449.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:SK-PB2200T03

Style
Quantity

72150 Motor Spec:

  • Voltage range: 6-12S (25.2-50.4V)
  • Continuous power: 2100W; Max power: 3000W
  • Peak current: 100A; Continuous current: 70A
  • Motor KV: 120KV
  • Motor Blade: 3-blade propeller (140mm)
  • Waterproof rate: IP68
  • Lead wires extension: 10AWGx1200mm
  • Max thrust: 30KG

Battery box parameters:

  • Battery outer box size: 371*269*186mm
  • Waterproof grade: IP67
  • Battery box material: ABS
  • Voltage:50.4V
  • Cell specifications: Molicel P42A 27100
  • Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
  • Environment: (-20 degrees Celsius + 50 degrees Celsius)
  • Charger: 50.4V 6A
  • Charging time: about 2.6 hours
  • Battery life: 90-120 minutes,Recommended cruising power: 500W.

ESC integrated Spec:

  • ESC type:  Mini FSESC6.7 PRO
  • Control Interface Ports: USB,CAN,UART
  • Input Set Support: PPM, ADC, UART

Remote control:

  • remote control:VX3
  • Control mode :UART
  • Remote control distance: No interference, 25 meters in a straight line
  • Waterproof grade:IP68
  • There are 3 adjustable gears (L/M/H)
  • Functions: Cruise control, GPS speed display, infinite throttle

Thrust test

Motor & ESC
Motor Model 72150 Built-in Drive Waterproof Motor (Threaded Shaft)
Waterproof Rating IP68
Motor Mount Material ABS
Propeller Guard Material ABS

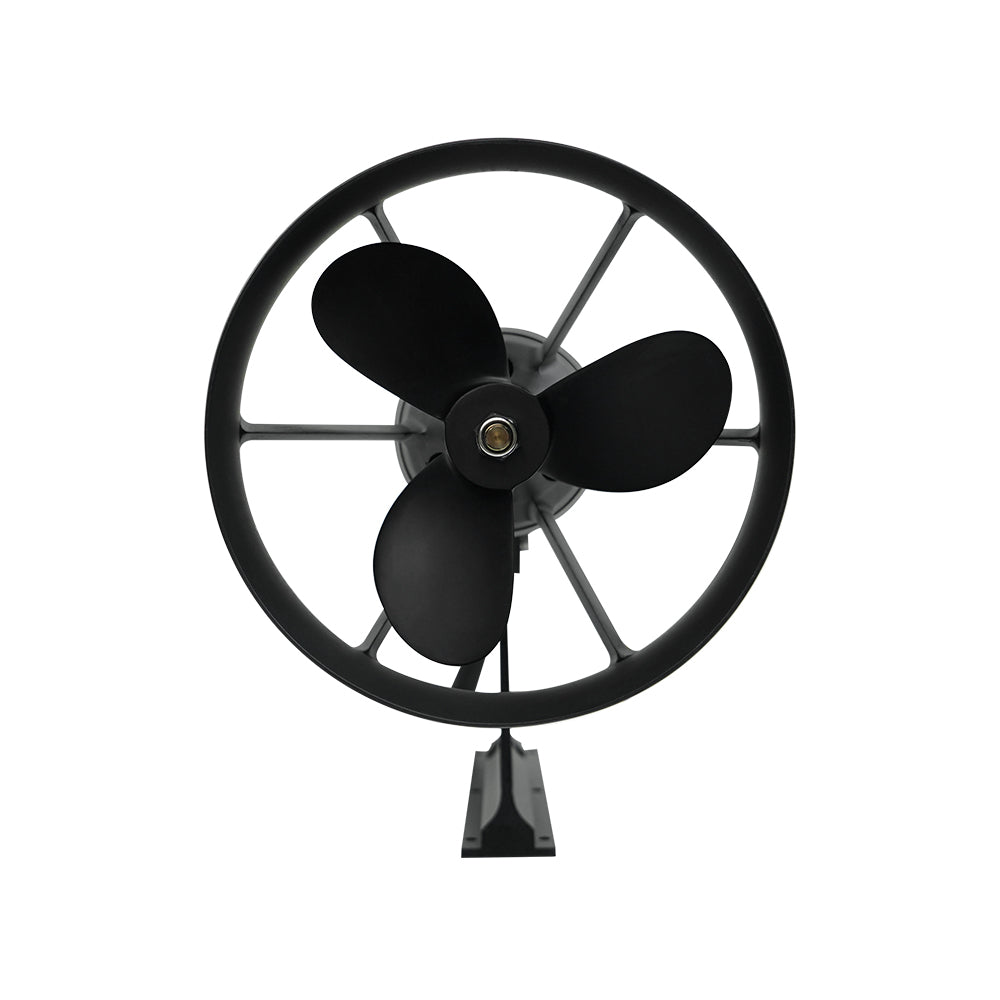

Propeller 72 Motor 3-Blade (140mm)
Voltage Range 6–12S (25.2V–50.4V)
Rated Power 2100W
Max Power 3000W
Rated Current 70A
Max Current 100A
ESC Drive Mode UART
Power (W) Static Thrust (kg)
300W 8 kg
500W 12 kg
800W 16 kg
1000W 19 kg
1200W 21 kg
1500W 24 kg
1800W 27 kg
2000W 29 kg
2100W 30 kg
Battery Box
Dimensions 371×269×186mm
Waterproof Rating IP67
Voltage 50.4V
Cell Spec Molicel P42A 21700
Capacity 12S 4P — 16.8Ah / 846.72Wh / 16800mAh
Charger 50.4V 6A
Charge Time ~2.6 hours
Runtime 90–120 min (recommended cruise power: 500W)
Remote Controller
Model VX3
Control Mode UART
Range 25m (interference-free, line of sight)
Waterproof Rating IP68
Speed Modes 3 modes: Low / Medium / High
Features Cruise control, GPS, speed display, battery level display
Packaging
Box Dimensions 46cm × 33cm × 49cm
Gross Weight 12 kg
View full details
Your cart
Variant Variant total Quantity Price Variant total
Skycreat 2200 Series 3000W Brushless Underwater Thruster – IP68 Waterproof for ROV, Jet Board, RC Boat & Outboard
Moter only
Moter only
$449.00/ea
$0.00
$449.00/ea $0.00
Skycreat 2200 Series 3000W Brushless Underwater Thruster – IP68 Waterproof for ROV, Jet Board, RC Boat & Outboard

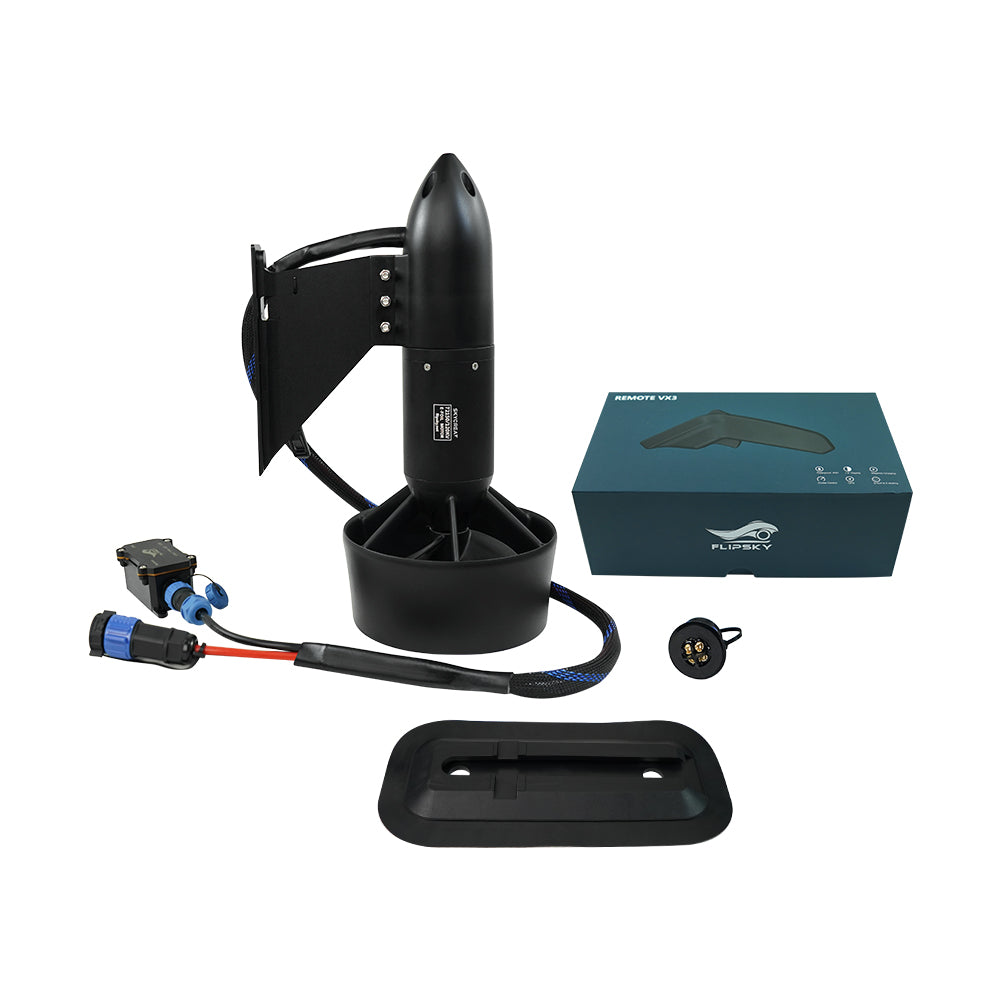

With Remote (No Battery)
With Remote (No Battery)
$544.00/ea
$0.00
$544.00/ea $0.00
Skycreat 2200 Series 3000W Brushless Underwater Thruster – IP68 Waterproof for ROV, Jet Board, RC Boat & Outboard

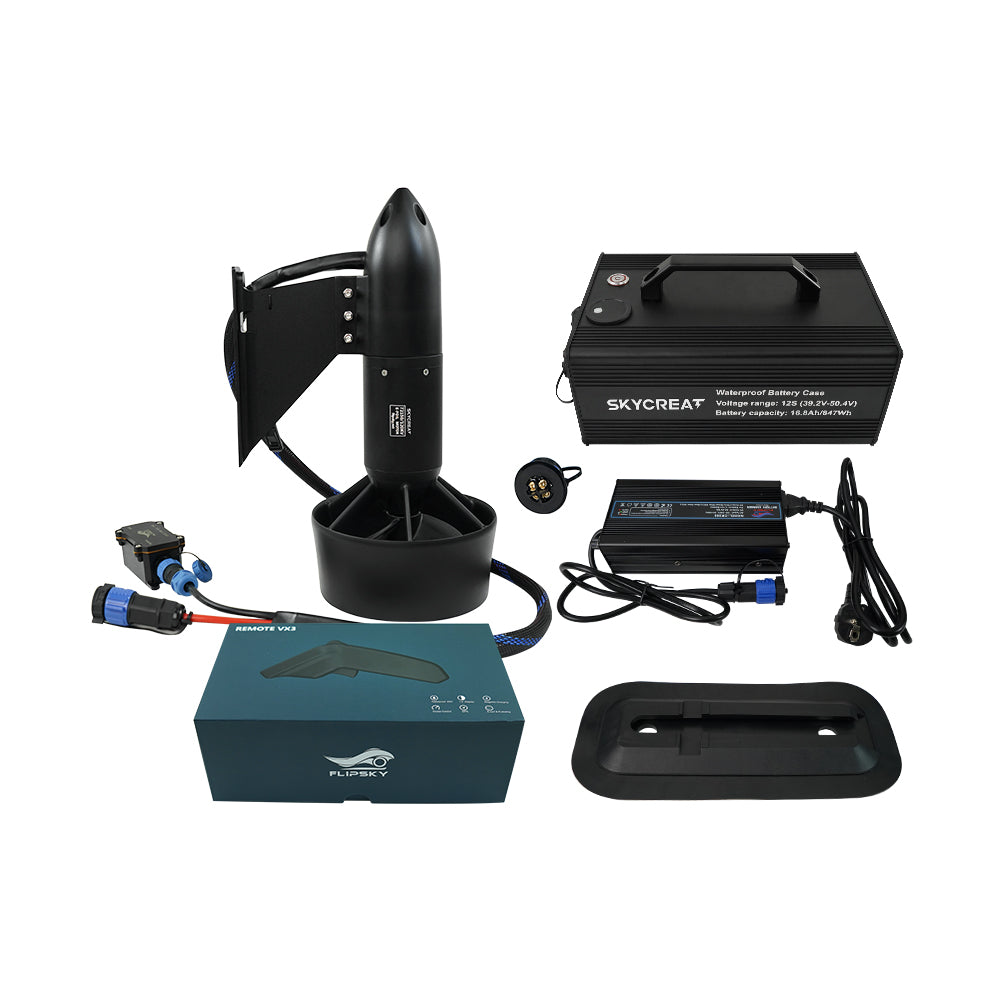

With Remote & Battery
