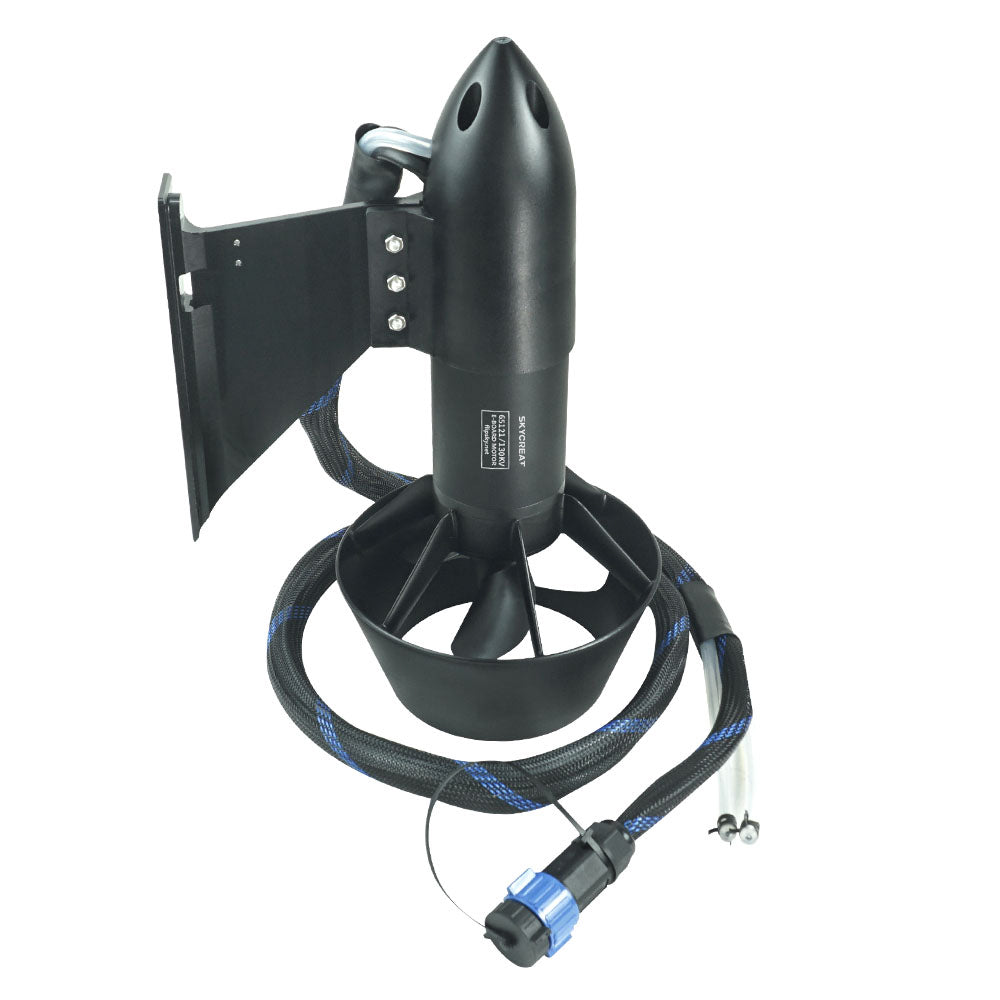

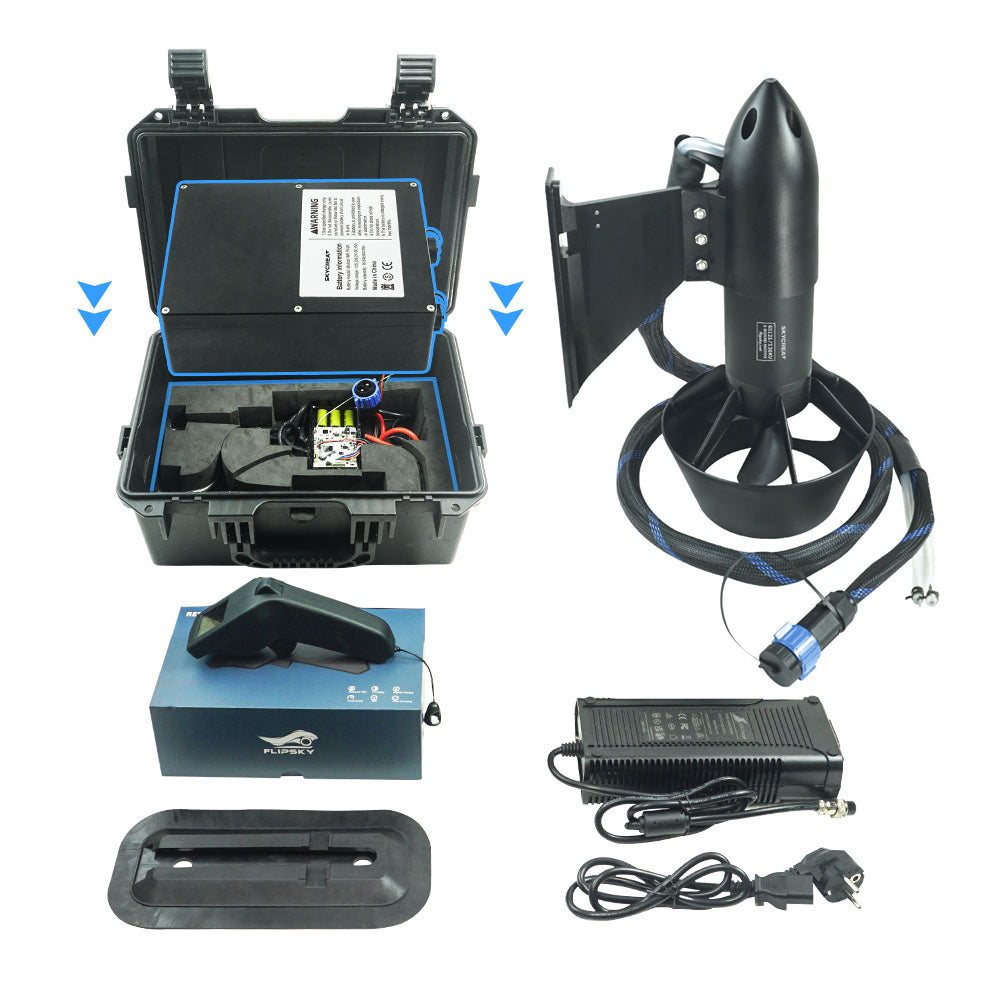

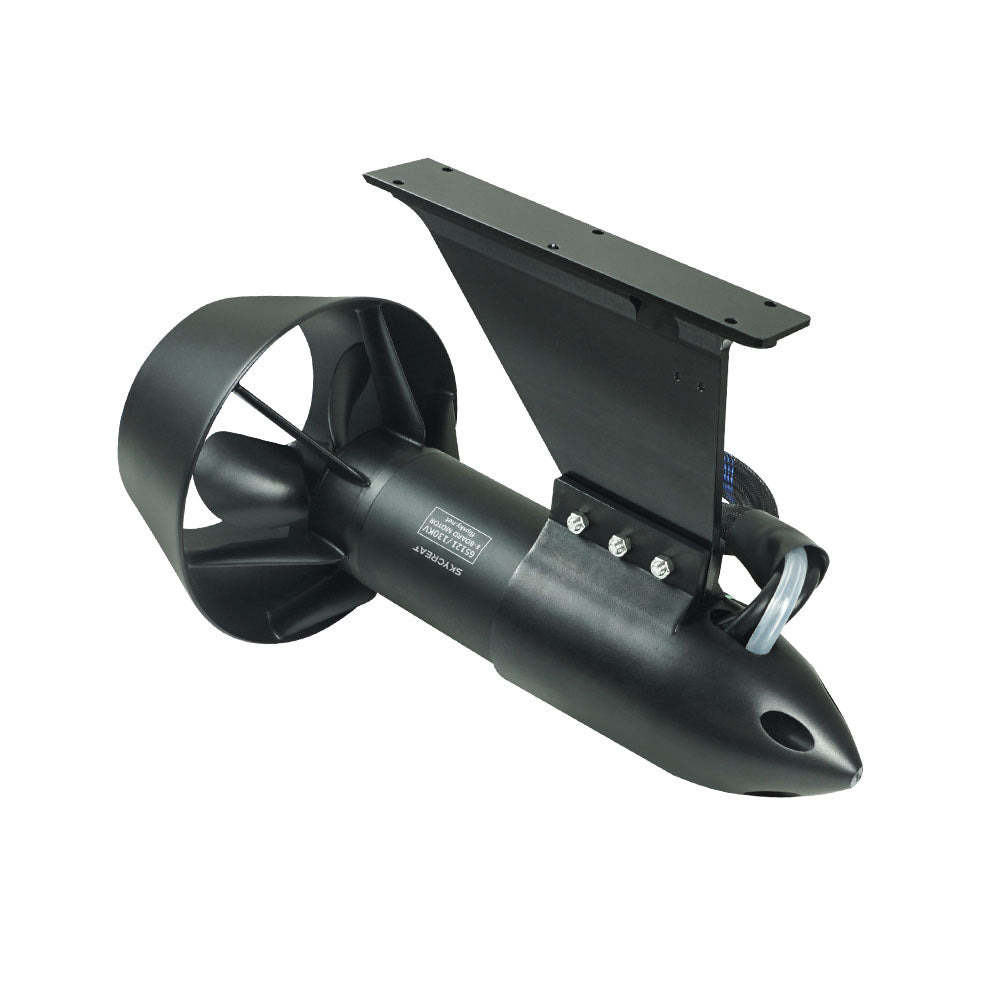

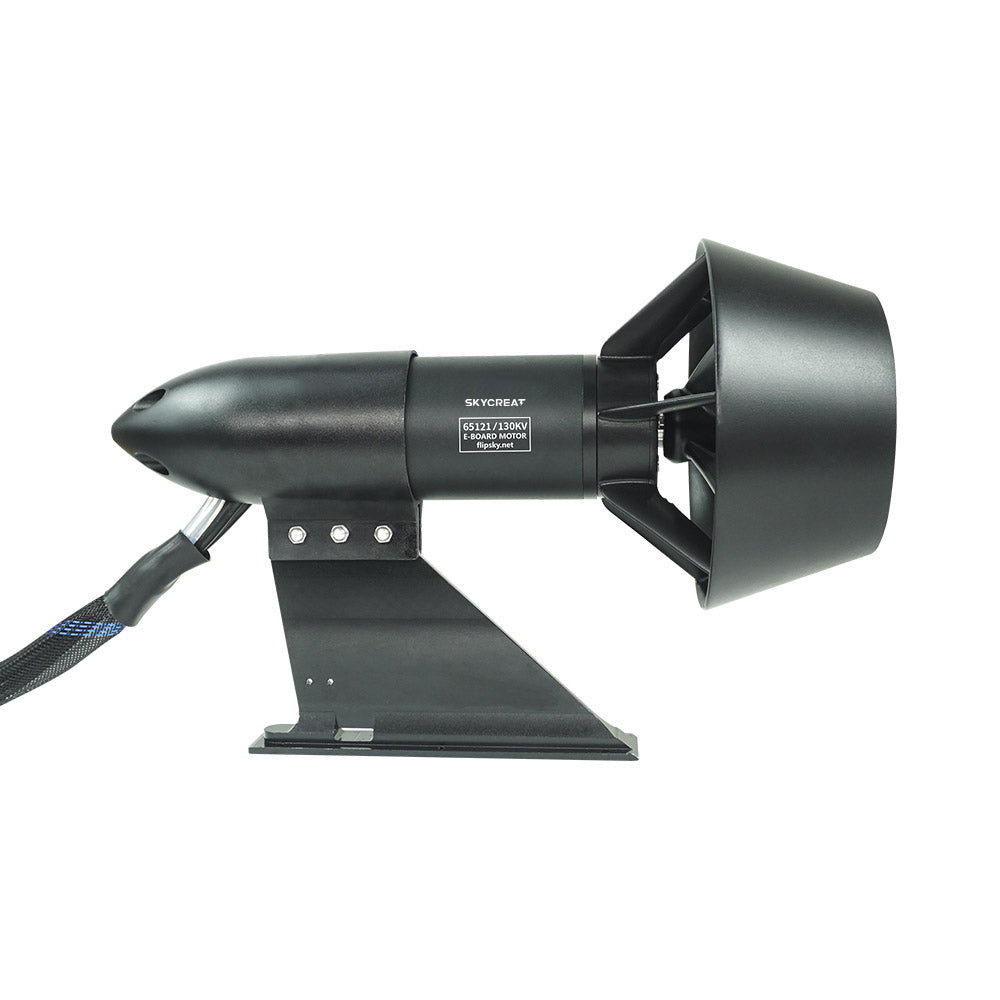

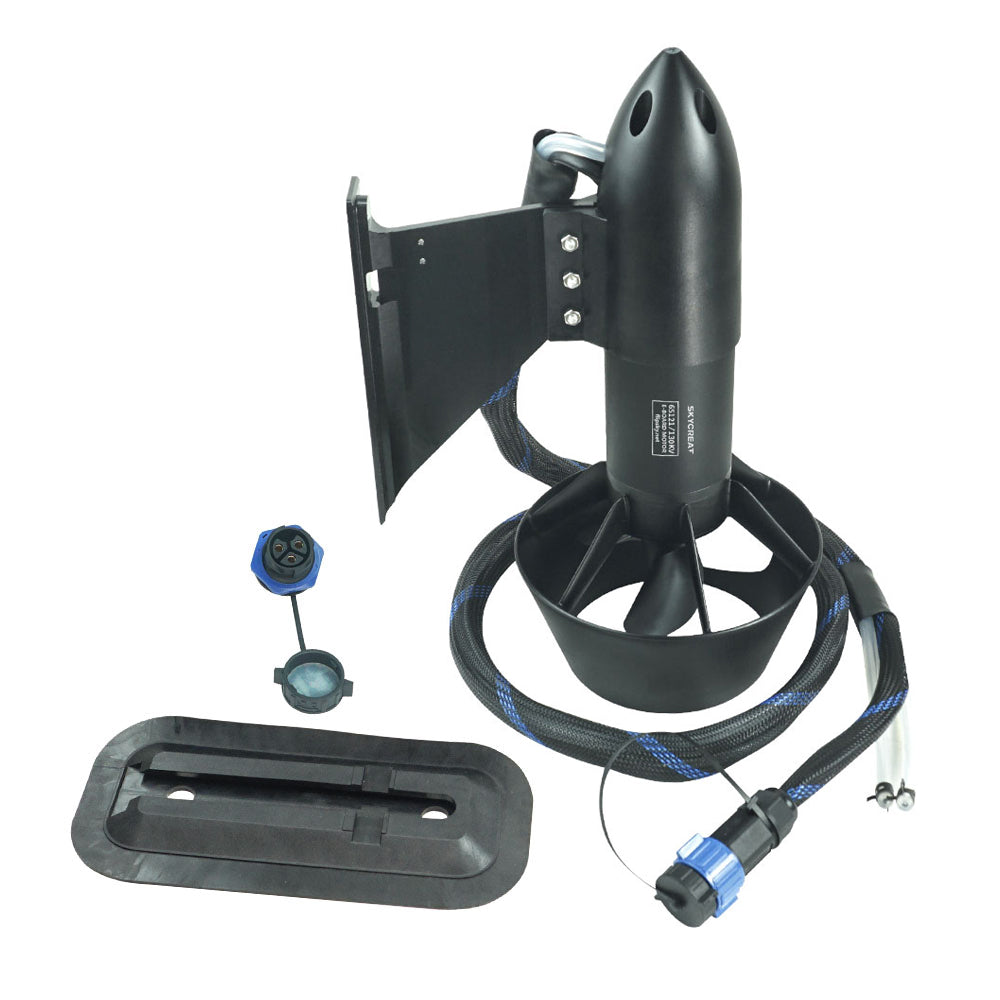

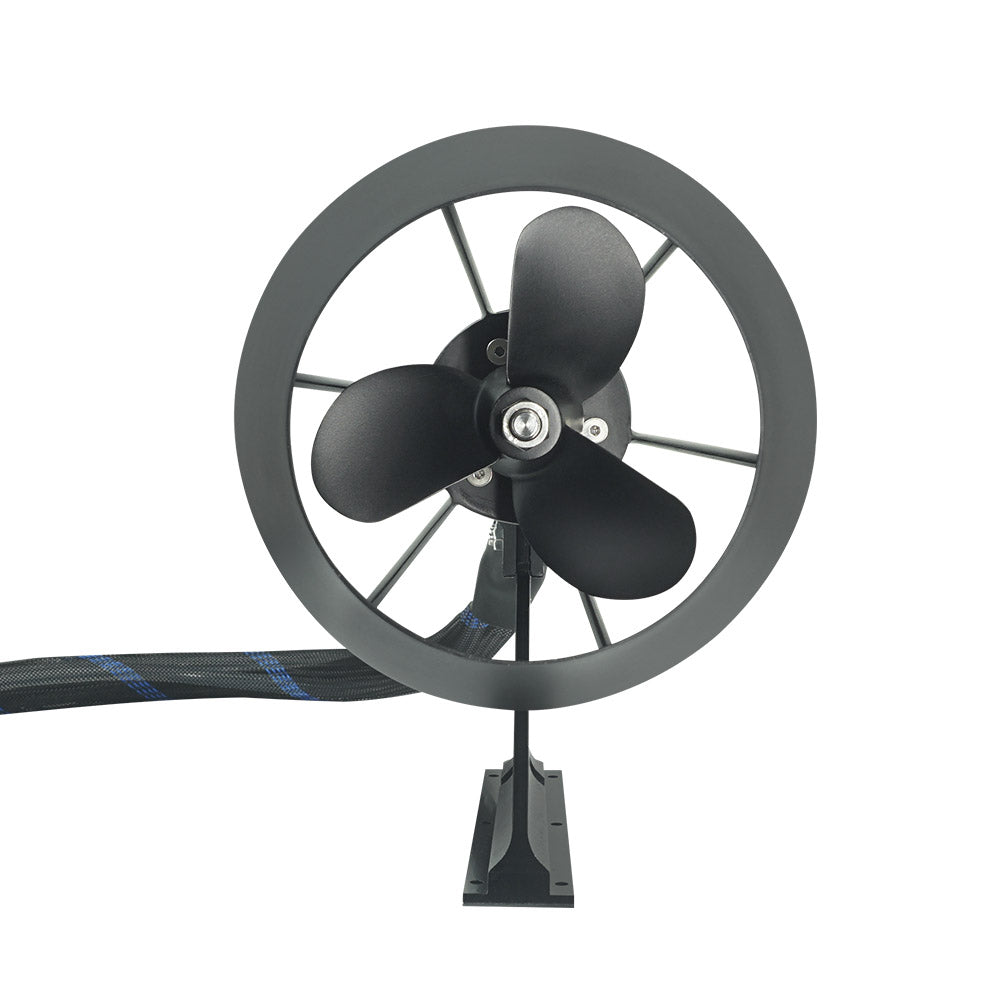

Skyceat Brushless Motor 65121 3700W Waterproof Underwater Thruster electric boat thruster for ROV RC Boat /Jet boards /Outboard motor / Drive boat jet

SKU:Fl-MF-65121M22

65121 Motor Spec:

• Voltage range: 6-20S (25.2-84V)
• Max power: 3700W; Continuous power: 2000W
• Peak current: 100A;
• Motor KV: 130KV
• Size: OD65*L121mm
• Shaft diameter: 12mm*m8
• Max output torque:5.5N*M
• Waterproof rate: IP68

• Weight:3KG
• Structure:18N/6P
• Lead wires extension: 8AWGx1400mm

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

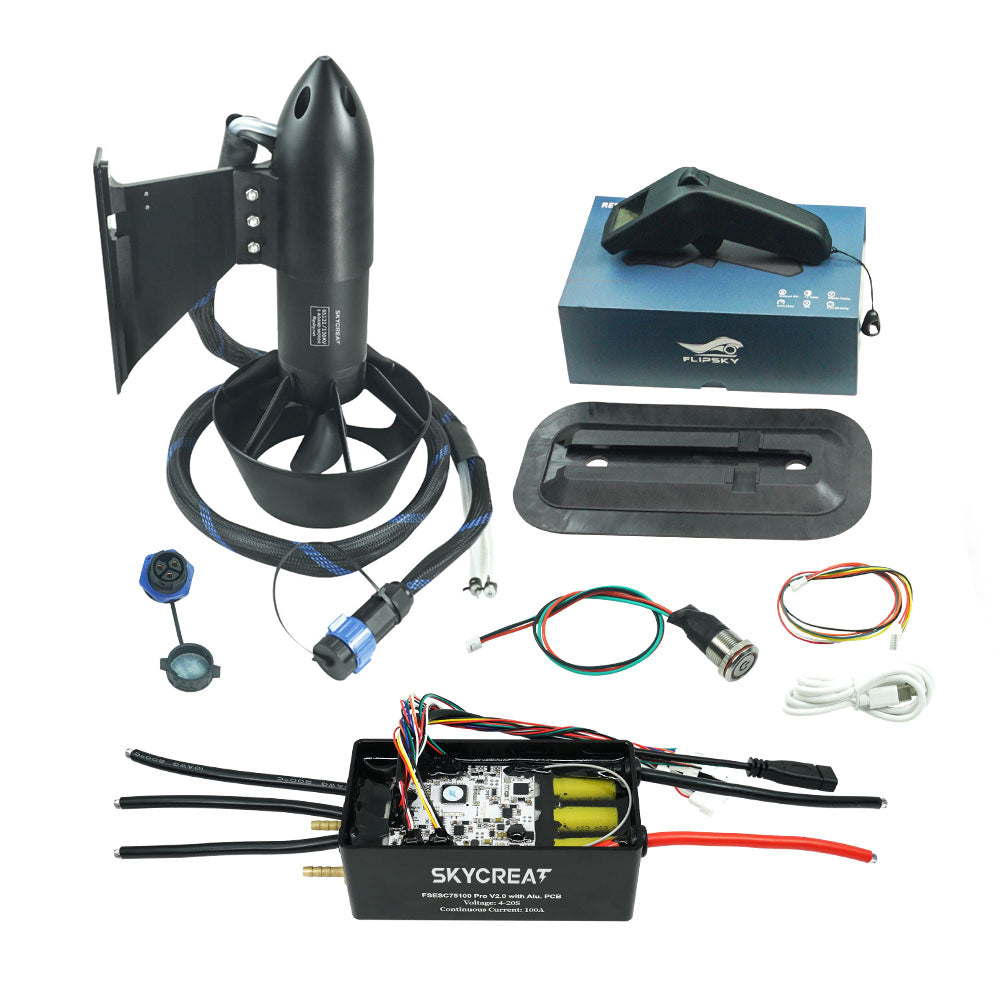

ESC

• ESC model:75100 pro v2.0
• Maximum discharge current: Maximum continuous 100A
• Voltage Range: 6-20s (25.2*84v)
• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)
• Support control protocols ppm, uart, adc, nrf, pas

Remote control

• remote control:VX3
• Control mode :UART
• Remote control distance: no interference, 25 meters in a straight line
• Waterproof grade:IP67
• There are 3 adjustable gears (L/M/H)
• Functions: Cruise control, GPS speed display, infinite throttle
